六、go-kit 微服务请求跟踪介绍

本贴最后更新于 2426 天前，其中的信息可能已经东海扬尘

介绍

go-kit 提供了两种 tracing 请求跟踪

1、opentracing【跟踪标准】

2、zipkin【zipkin 的 go 封装】
我们下面来介绍下 zipkin 在 go-kit 中的使用方法。

zipkin 安装启动

1、 java -version 现在安装 zipkin，必须使用 java8（即 java-1.8.0-openjdk）

2、 wget -O zipkin.jar 'https://search.maven.org/remote_content?g=io.zipkin.java&a=zipkin-server&v=LATEST&c=exec'

3、 java -jar zipkin.jar

哈哈， 只是大概介绍下 zipkin 的安装 出现问题需要自己解决了。

go-kit 的 zipkin

服务端 trace

//创建zipkin上报管理器
reporter := http.NewReporter("http://localhost:9411/api/v2/spans")

// 运行结束，关闭上报管理器的for-select协程
defer reporter.Close()

// 创建trace跟踪器
zkTracer, err := opzipkin.NewTracer(reporter)

// 添加grpc请求的before after finalizer 事件对应要处理的trace操作方法
zkServerTrace := zipkin.GRPCServerTrace(zkTracer)

// 通过options的方式运行trace
bookListHandler := grpctransport.NewServer(
	bookListEndPoint,
	decodeRequest,
	encodeResponse,
	zkServerTrace,
)

完整代码

我们还在之前的代码中加入，trace 的代码

package main

import (
   "grpc-test/pb"
   "context"
   grpctransport
   "github.com/go-kit/kit/transport/grpc"
   "github.com/go-kit/kit/endpoint"
   "google.golang.org/grpc"
   "net"
   "github.com/go-kit/kit/sd/etcdv3"
   "github.com/go-kit/kit/log"
   "time"
   "golang.org/x/time/rate"
   "github.com/go-kit/kit/ratelimit"
   opzipkin "github.com/openzipkin/zipkin-go"
   "github.com/openzipkin/zipkin-go/reporter/http"
   "github.com/go-kit/kit/tracing/zipkin"
   "math/rand"
)

type BookServer struct {
   bookListHandler  grpctransport.Handler
   bookInfoHandler  grpctransport.Handler
}

//通过grpc调用GetBookInfo时,GetBookInfo只做数据透传, 调用BookServer中对应Handler.ServeGRPC转交给go-kit处理
func (s *BookServer) GetBookInfo(ctx context.Context, in *book.BookInfoParams) (*book.BookInfo, error) {
   _, rsp, err := s.bookInfoHandler.ServeGRPC(ctx, in)
   if err != nil {
      return nil, err
   }
   return rsp.(*book.BookInfo),err
}

//通过grpc调用GetBookList时,GetBookList只做数据透传, 调用BookServer中对应Handler.ServeGRPC转交给go-kit处理
func (s *BookServer) GetBookList(ctx context.Context, in *book.BookListParams) (*book.BookList, error) {
   _, rsp, err := s.bookListHandler.ServeGRPC(ctx, in)
   if err != nil {
      return nil, err
   }
   return rsp.(*book.BookList),err
}

//创建bookList的EndPoint
func makeGetBookListEndpoint() endpoint.Endpoint {
   return func(ctx context.Context, request interface{}) (interface{}, error) {
      rand.Seed(time.Now().Unix())
      randInt := rand.Int63n(200)
      time.Sleep( time.Duration(randInt) * time.Millisecond)
      //请求列表时返回 书籍列表
      bl := new(book.BookList)
      bl.BookList = append(bl.BookList, &book.BookInfo{BookId:1,BookName:"21天精通php"})
      bl.BookList = append(bl.BookList, &book.BookInfo{BookId:2,BookName:"21天精通java"})
      return bl,nil
   }
}

//创建bookInfo的EndPoint
func makeGetBookInfoEndpoint() endpoint.Endpoint {
   return func(ctx context.Context, request interface{}) (interface{}, error) {
      rand.Seed(time.Now().Unix())
      randInt := rand.Int63n(200)
      time.Sleep( time.Duration(randInt) * time.Microsecond)
      //请求详情时返回 书籍信息
      req := request.(*book.BookInfoParams)
      b := new(book.BookInfo)
      b.BookId = req.BookId
      b.BookName = "21天精通php"
      return b,nil
   }
}

func decodeRequest(_ context.Context, req interface{}) (interface{}, error) {
   return req, nil
}

func encodeResponse(_ context.Context, rsp interface{}) (interface{}, error) {
   return rsp, nil
}

func main() {

   var (
      //etcd服务地址
      etcdServer = "127.0.0.1:2379"
      //服务的信息目录
      prefix     = "/services/book/"
      //当前启动服务实例的地址
      instance   = "127.0.0.1:50051"
      //服务实例注册的路径
      key        = prefix + instance
      //服务实例注册的val
      value      = instance
      ctx        = context.Background()
      //服务监听地址
      serviceAddress = ":50051"
   )

   //etcd的连接参数
   options := etcdv3.ClientOptions{
      DialTimeout: time.Second * 3,
      DialKeepAlive: time.Second * 3,
   }
   //创建etcd连接
   client, err := etcdv3.NewClient(ctx, []string{etcdServer}, options)
   if err != nil {
      panic(err)
   }

   // 创建注册器
   registrar := etcdv3.NewRegistrar(client, etcdv3.Service{
      Key:   key,
      Value: value,
   }, log.NewNopLogger())

   // 注册器启动注册
   registrar.Register()

   reporter := http.NewReporter("http://localhost:9411/api/v2/spans")
   defer reporter.Close()
   zkTracer, err := opzipkin.NewTracer(reporter)
   zkServerTrace := zipkin.GRPCServerTrace(zkTracer)
   bookServer := new(BookServer)
   bookListEndPoint := makeGetBookListEndpoint()
   //创建限流器 1r/s  limiter := rate.NewLimiter(rate.Every(time.Second * 1), 100000)
   //通过DelayingLimiter中间件，在bookListEndPoint的外层再包裹一层限流的endPoint
   bookListEndPoint = ratelimit.NewDelayingLimiter(limiter)(bookListEndPoint)

   bookListHandler := grpctransport.NewServer(
      bookListEndPoint,
      decodeRequest,
      encodeResponse,
      zkServerTrace,
   )
   bookServer.bookListHandler = bookListHandler


   bookInfoEndPoint := makeGetBookInfoEndpoint()
   //通过DelayingLimiter中间件，在bookListEndPoint的外层再包裹一层限流的endPoint
   bookInfoEndPoint = ratelimit.NewDelayingLimiter(limiter)(bookInfoEndPoint)
   bookInfoHandler := grpctransport.NewServer(
      bookInfoEndPoint,
      decodeRequest,
      encodeResponse,
      zkServerTrace,
   )
   bookServer.bookInfoHandler = bookInfoHandler

   ls, _ := net.Listen("tcp", serviceAddress)
   gs := grpc.NewServer(grpc.UnaryInterceptor(grpctransport.Interceptor))
   book.RegisterBookServiceServer(gs, bookServer)
   gs.Serve(ls)
}

客户端 trace

首先改造请求方式，之前我们是通过 grpc 的 idl 生成的代码直接发起的请求。我们要改成 go-kit endPoint 的方式，这样利于增加其它 middleware 或 options 扩展功能，通过 grpctransport.NewClient().Endpoint()可以获取到请求的 endPoint

原来的代码

//通过传入的 实例地址  创建对应的请求endPoint
func reqFactory(instanceAddr string) (endpoint.Endpoint, io.Closer, error) {
	return func(ctx context.Context, request interface{}) (interface{}, error) {
		fmt.Println("请求服务: ", instanceAddr, "当前时间: ", time.Now().Format("2006-01-02 15:04:05.99"))
		conn, err := grpc.Dial(instanceAddr, grpc.WithInsecure())
		if err != nil {
			fmt.Println(err)
			panic("connect error")
		}
		defer conn.Close()
		bookClient := book.NewBookServiceClient(conn)
		bi, err := bookClient.GetBookInfo(context.Background(), &book.BookInfoParams{BookId: 1})
		fmt.Println(bi)
		fmt.Println("       ", "获取书籍详情")
		fmt.Println("       ", "bookId: 1", " => ", "bookName:", bi.BookName)
		return nil, nil
	}, nil, nil
}

改造后

//通过传入的 实例地址  创建对应的请求endPoint
func reqFactory(instanceAddr string) (endpoint.Endpoint, io.Closer, error) {
	return func(ctx context.Context, request interface{}) (interface{}, error) {
		fmt.Println("请求服务: ", instanceAddr, "当前时间: ", time.Now().Format("2006-01-02 15:04:05.99"))
		conn, err := grpc.Dial(instanceAddr, grpc.WithInsecure())
		if err != nil {
			fmt.Println(err)
			panic("connect error")
		}
		bookInfoRequest := grpctransport.NewClient(
			conn,
			"BookService",
			"GetBookInfo",
			func(_ context.Context, in interface{}) (interface{}, error) { return nil, nil },
			func(_ context.Context, out interface{}) (interface{}, error) {
				return out, nil
			},
			book.BookInfo{},
		).Endpoint()

		bookListRequest := grpctransport.NewClient(
			conn,
			"BookService",
			"GetBookList",
			func(_ context.Context, in interface{}) (interface{}, error) { return nil, nil },
			func(_ context.Context, out interface{}) (interface{}, error) {
				return out, nil
			},
			book.BookList{},
		).Endpoint()

		infoRet, _ := bookInfoRequest(ctx, request)
		bi := infoRet.(*book.BookInfo)
		fmt.Println("获取书籍详情")
		fmt.Println("bookId: 1", " => ", "bookName:", bi.BookName)

		listRet, _ := bookListRequest(ctx, request)
		bl := listRet.(*book.BookList)
		fmt.Println("获取书籍列表")
		for _, b := range bl.BookList {
			fmt.Println("bookId:", b.BookId, " => ", "bookName:", b.BookName)
		}

		return nil, nil
	}, nil, nil
}

增加 trace 代码

与服务端 trace 的区别在于 kitzipkin.GRPCClientTrace

reporter := http.NewReporter("http://localhost:9411/api/v2/spans")
defer reporter.Close()

zkTracer, err := opzipkin.NewTracer(reporter)
zkClientTrace := zipkin.GRPCClientTrace(zkTracer)

可以通过 span 组装 span 结构树

parentSpan := zkTracer.StartSpan("bookCaller")
defer parentSpan.Flush()
ctx = opzipkin.NewContext(context.Background(), parentSpan)

完整代码

package main

import (
	"context"
	"fmt"
	"github.com/afex/hystrix-go/hystrix"
	"github.com/go-kit/kit/circuitbreaker"
	"github.com/go-kit/kit/endpoint"
	"github.com/go-kit/kit/log"
	"github.com/go-kit/kit/sd"
	"github.com/go-kit/kit/sd/etcdv3"
	"github.com/go-kit/kit/sd/lb"
	"github.com/go-kit/kit/tracing/zipkin"
	grpctransport "github.com/go-kit/kit/transport/grpc"
	opzipkin "github.com/openzipkin/zipkin-go"
	"github.com/openzipkin/zipkin-go/reporter/http"
	"google.golang.org/grpc"
	"grpc-test/pb"
	"io"
	"time"
)

func main() {
	commandName := "my-endpoint"
	hystrix.ConfigureCommand(commandName, hystrix.CommandConfig{
		Timeout:                1000 * 30,
		ErrorPercentThreshold:  1,
		SleepWindow:            10000,
		MaxConcurrentRequests:  1000,
		RequestVolumeThreshold: 5,
	})
	breakerMw := circuitbreaker.Hystrix(commandName)

	var (
		//注册中心地址
		etcdServer = "127.0.0.1:2379"
		//监听的服务前缀
		prefix = "/services/book/"
		ctx    = context.Background()
	)
	options := etcdv3.ClientOptions{
		DialTimeout:   time.Second * 3,
		DialKeepAlive: time.Second * 3,
	}
	//连接注册中心
	client, err := etcdv3.NewClient(ctx, []string{etcdServer}, options)
	if err != nil {
		panic(err)
	}
	logger := log.NewNopLogger()
	//创建实例管理器, 此管理器会Watch监听etc中prefix的目录变化更新缓存的服务实例数据
	instancer, err := etcdv3.NewInstancer(client, prefix, logger)
	if err != nil {
		panic(err)
	}
	//创建端点管理器， 此管理器根据Factory和监听的到实例创建endPoint并订阅instancer的变化动态更新Factory创建的endPoint
	endpointer := sd.NewEndpointer(instancer, reqFactory, logger)
	//创建负载均衡器
	balancer := lb.NewRoundRobin(endpointer)

	/**
	  我们可以通过负载均衡器直接获取请求的endPoint，发起请求
	  reqEndPoint,_ := balancer.Endpoint()
	*/
	/**
	  也可以通过retry定义尝试次数进行请求
	*/
	reqEndPoint := lb.Retry(3, 100*time.Second, balancer)

	//增加熔断中间件
	reqEndPoint = breakerMw(reqEndPoint)
	//现在我们可以通过 endPoint 发起请求了

	req := struct{}{}
	for i := 1; i <= 1; i++ {
		if _, err = reqEndPoint(ctx, req); err != nil {
			fmt.Println(err)
		}
	}
}

// 通过传入的 实例地址  创建对应的请求endPoint
func reqFactory(instanceAddr string) (endpoint.Endpoint, io.Closer, error) {
	return func(ctx context.Context, request interface{}) (interface{}, error) {
		fmt.Println("请求服务: ", instanceAddr, "当前时间: ", time.Now().Format("2006-01-02 15:04:05.99"))
		conn, err := grpc.Dial(instanceAddr, grpc.WithInsecure())
		if err != nil {
			fmt.Println(err)
			panic("connect error")
		}

		reporter := http.NewReporter("http://localhost:9411/api/v2/spans")
		defer reporter.Close()

		zkTracer, err := opzipkin.NewTracer(reporter)
		zkClientTrace := zipkin.GRPCClientTrace(zkTracer)

		bookInfoRequest := grpctransport.NewClient(
			conn,
			"BookService",
			"GetBookInfo",
			func(_ context.Context, in interface{}) (interface{}, error) { return nil, nil },
			func(_ context.Context, out interface{}) (interface{}, error) {
				return out, nil
			},
			book.BookInfo{},
			zkClientTrace,
		).Endpoint()

		bookListRequest := grpctransport.NewClient(
			conn,
			"BookService",
			"GetBookList",
			func(_ context.Context, in interface{}) (interface{}, error) { return nil, nil },
			func(_ context.Context, out interface{}) (interface{}, error) {
				return out, nil
			},
			book.BookList{},
			zkClientTrace,
		).Endpoint()

		parentSpan := zkTracer.StartSpan("bookCaller")
		defer parentSpan.Flush()

		ctx = opzipkin.NewContext(ctx, parentSpan)
		infoRet, _ := bookInfoRequest(ctx, request)
		bi := infoRet.(*book.BookInfo)
		fmt.Println("获取书籍详情")
		fmt.Println("bookId: 1", " => ", "bookName:", bi.BookName)

		listRet, _ := bookListRequest(ctx, request)
		bl := listRet.(*book.BookList)
		fmt.Println("获取书籍列表")
		for _, b := range bl.BookList {
			fmt.Println("bookId:", b.BookId, " => ", "bookName:", b.BookName)
		}

		return nil, nil
	}, nil, nil
}

运行

请求服务:  127.0.0.1:50051 当前时间:  2018-05-04 10:34:55.91

获取书籍详情
bookId: 1  =>  bookName: 21天精通php
获取书籍列表
bookId: 1  =>  bookName: 21天精通php
bookId: 2  =>  bookName: 21天精通java

Process finished with exit code 0

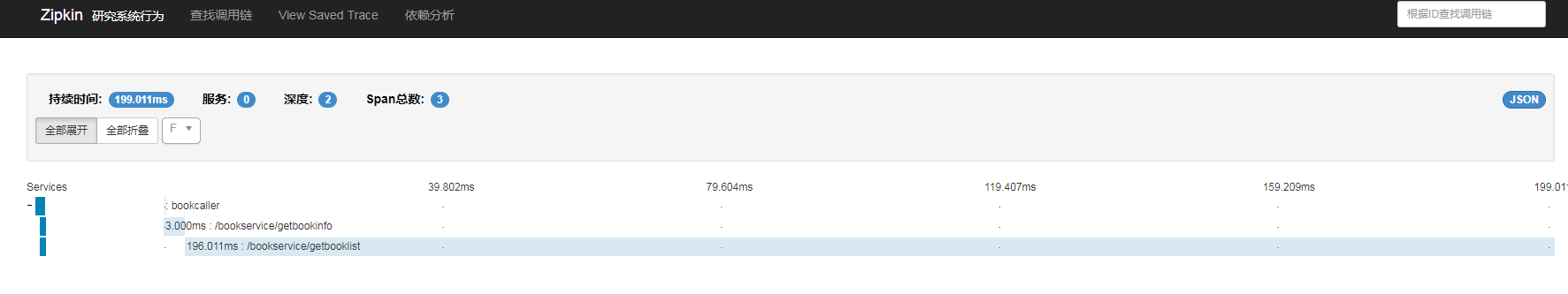

访问 http://localhost:9411/zipkin/ 查看我们的 zipkin 中的记录
zkpng

总结

至此基于 go-kit 的功能基本都介绍了，log 模块和其它 middleware 差不多就不再描述。

  • golang

    Go 语言是 Google 推出的一种全新的编程语言，可以在不损失应用程序性能的情况下降低代码的复杂性。谷歌首席软件工程师罗布派克（Rob Pike）说：我们之所以开发 Go，是因为过去 10 多年间软件开发的难度令人沮丧。Go 是谷歌 2009 发布的第二款编程语言。

    497 引用 • 1388 回帖 • 277 关注
  • gRpc
    11 引用 • 9 回帖 • 70 关注
北京 位置
1 回帖
2.5k 23 885 168 116 111 1 91 1.1k

相关帖子

1 回帖
六、go-kit 微服务请求跟踪介绍

欢迎来到这里！

我们正在构建一个小众社区，大家在这里相互信任，以平等 • 自由 • 奔放的价值观进行分享交流。最终，希望大家能够找到与自己志同道合的伙伴，共同成长。

注册 关于
请输入回帖内容 ...
  • wzy •

    client 端 getBookInfo 中请求是如何设置 bookId=1 的？

450370050
交流群399287527 我的博客 北京
回帖
3
 帖子
28
 积分
745
