最新 Springboot +Dubbo 分布式服务搭建

摘要:
本文中涉及的代码在 github 均可找到 https://github.com/G-
little/priest，本人从最早的 dubbo 项目开源，便一直是 dubbo 的忠实粉丝,后来 dubbo 项目被 apache 作为顶级开源项目引入也是欢欣鼓舞，作为忠实粉丝也希望为 dubbo 的推广尽一份绵薄之力。

dubbo 作为分布式系统的教科书式开源项目，独立使用起来是非常简单的，但在与新版的 springboot 及其他开源项目的整合使用过程中，因为不同版本开源项目的兼容问题，还是会产生各种匪夷所思的问题。作为开发界的老司机有时也被这些问题折磨的焦头烂额。本文将最新版 dubbo 与 springboot ,mybatis 构建分布式项目的过程详细记录，希望能将大家从项目构建过程的版本坑中解救出来。

另外也把自己开源的良心项目诚心推荐给大家 priest，
整个项目采用最新版 springboot+dubbo+mybatis3+springdata-redis 架构，将传统的 rest 接口开发，用户 token 认证，及管理后台项目打包开源，所有代码均可通过插件自动生成，将开发人员从 996 的加班节奏中解救出来。开源不易，感兴趣的同学不妨留下你的小心心 ❤️。

概述

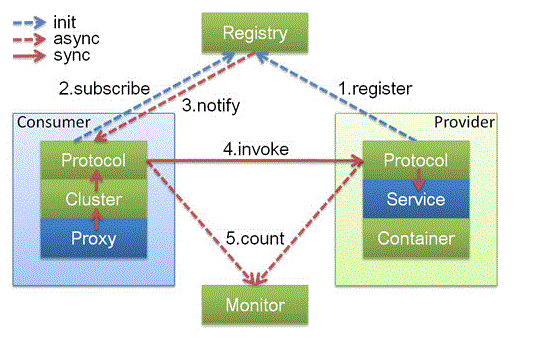

写程序我想最讲究的就是知其然，知其所以然，提起项目整合，首先不得不说的就是 dubbo 的设计架构。

![image.png](https://b3logfile.com/file/2019/04/image-de29c20e.png)

首先我们看一下 dubbo 的调用流程这里主要涉及 4 个模块:

Registry: 注册中心，dubbo 的服务注册，服务发现均通过该服务作为桥梁。
Provider: 服务提供者，开发者实现的具体接口逻辑
Consumer: 消费者，Provider 接口的订阅方
Monitor: dubbo 服务的调用次数，调用时间监控中心。

从图中我们可以了解到整个 RPC 服务调用过程为：

服务提供者将服务注册到服务中心
消费者在注册中心中订阅服务
消费者调用已经在注册中心注册的服务

项目构建

一基础服务

透过 dubbo 的架构我们可以梳理出整个项目依赖的基础服务和技术

dubbo 分布式服务
spring-boot 基于 spring 的依赖管理
jdk 1.8
zookeeper dubbo 依赖的注册中心
mybatis mysql orm 框架
mysql 数据库

二项目结构规划

一个好的项目规划，一定要考虑到项目的层次划分明确，未来扩展，开发敏捷等等方面。对于 springboot+dubbo 的项目特点我们不难想到，web 项目
需要远程调用 dubbo 分布式服务，dubbo 项目需对外提供 api 服务，因此我们得出如下项目结构：

将 dubbo 项目分为 dubbo-service，和 dubbo-api 部分，方便项目依赖和调用。
dao 层逻辑的独立性，我们将 dao 层单独拆分项目（清晰而已，不必要）
web 层负责对代码参数的校验及 dubbo 层业务逻辑的对外输出单独一个项目
dubbo 项目代码的扩展项目
项目间公共代码项目

最终得到项目结构如下:

├── dubbo                  // dubbo 打包部署
│   ├── assembly		   // dubbo assembly 打包配置
│   └── bin                // dubbo 启动相关脚本
├── dubbo-extend           // dubbo 项目扩展，可基于dubbo spi机制，对dubbo 进行扩展
│   └── src
├── plugin-test            // 插件测试项目，用于代码生成插件的测试(作者开源项目，普通项目构建可以忽略)
│   └── src
├── priest-common          // 项目共用代码
│   └── src
├── priest-common-web      // web 项目共用代码
│   └── src
├── priest-demo            // demo 项目
│   ├── priest-demo-api    // demo api 项目
│   ├── priest-demo-dao    // demo dao 项目
│   ├── priest-demo-http   // demo http 项目
│   └── priest-demo-service //demo service 项目
└── priest-generator        // 代码生成插件 (作者开源项目，普通项目构建可以忽略)

三父项目 pom 配置说明

maven 的父子项目与 java 中的继承关系非常的相似，子项目继承父项目的属性，依赖版本，插件配置等，又可以根据子项目的特点和需求，重写项目配置。总结来说父项目的职责如下:

全局版本控制，对于经常出现版本冲突问题的童鞋这一点至关重要，将所有项目版本的控制全部交由父项目控制，当项目出现版本冲突问题时，父级项目便可通过依赖的全局版本控制，轻松解决依赖冲突。

项目公共 properties 配置 例如 jdk 最低版本,项目源代码编码格式等。

多环境 profile 切换 ，例如开发环境，线上环境不同的注册中心配置，redis 配置

repositories 私有仓库配置 ，多人协同开发，api 打包发布私有仓库
插件管理 类似版本依赖

下面粘贴顶级项目的 pom 配置(含注释):

<?xml version="1.0"?>
<project
        xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"
        xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">

    <modelVersion>4.0.0</modelVersion>
    <groupId>com.little.g</groupId>
    <artifactId>priest</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>pom</packaging>
    <name>priest</name>
    <url>http://maven.apache.org</url>
    <modules>
        <!-- 项目模块管理 -->
        <module>dubbo-extend</module>
        <module>priest-demo</module>
        <module>priest-common</module>
        <module>priest-common-web</module>
        <module>priest-generator</module>
        <module>plugin-test</module>

    </modules>

        <!-- 全局属性配置 -->
    <properties>
        <failOnMissingWebXml>false</failOnMissingWebXml>
        <resource.delimiter>${}</resource.delimiter>
        <java.version>1.8</java.version>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <mysql-connector-java.version>8.0.13</mysql-connector-java.version>
        <tk.mapper.version>4.1.5</tk.mapper.version>
        <dubbo.version>2.7.0</dubbo.version>
    </properties>
    <!-- 打包配置信息 -->
    <profiles>
        <profile>
            <!-- 开发环境 -->
            <id>develop</id>
            <!-- 默认 -->
            <activation>
                <activeByDefault>true</activeByDefault>
            </activation>
            <properties>
                <!-- 日志 -->
                <priest.log.level>DEBUG</priest.log.level>
                <priest.log.path>/data/logs</priest.log.path>
                <!--打包编码 -->
                <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
                <priest.dubbo.zk.url>zookeeper://127.0.0.1:2181</priest.dubbo.zk.url>
                <priest.redis.nodes>127.0.0.1:6379</priest.redis.nodes>
                <priest.redis.password>123456</priest.redis.password>
                <priest.online>false</priest.online>
            </properties>
        </profile>



        <profile>
            <!-- 线上环境 -->
            <id>online</id>
            <activation>
                <activeByDefault>false</activeByDefault>
            </activation>

            <properties>

                <!-- 日志 -->
                <priest.log.level>DEBUG</priest.log.level>
                <priest.log.path>/data/logs</priest.log.path>
                <!--打包编码 -->
                <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
                <priest.dubbo.zk.url>zookeeper://192.168.0.195:2181</priest.dubbo.zk.url>
            </properties>
        </profile>
    </profiles>

    <!--开发者信息-->
    <developers>
        <developer>
            <name>llg.java</name>
            <id>ligang</id>
            <email>llg.java@gmail.com</email>
            <organization>xiaogang.org.cn</organization>
            <roles>
                <role>Java Developer</role>
            </roles>
        </developer>

    </developers>

    <!-- <distributionManagement>

        <repository>
            <id>nexus-releases</id>
            <name>Nexus Release Repository</name>
            <url>http://nexus.shuzijiayuan.com/content/repositories/releases/</url>
        </repository>
        <snapshotRepository>
            <id>nexus-snapshots</id>
            <name>Nexus Snapshot Repository</name>
            <url>http://nexus.shuzijiayuan.com/content/repositories/snapshots/</url>
        </snapshotRepository>
    </distributionManagement> -->

    <!-- 仓库配置 -->
    <repositories>
        <repository>
            <id>apache.snapshots.https</id>
            <name>Apache Development Snapshot Repository</name>
            <url>https://repository.apache.org/content/repositories/snapshots</url>
            <releases>
                <enabled>false</enabled>
            </releases>
            <snapshots>
                <enabled>true</enabled>
            </snapshots>
        </repository>
    </repositories>

    <!-- 依赖管理 -->
    <dependencyManagement>
        <dependencies>

            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-parent</artifactId>
                <version>2.1.3.RELEASE</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>



            <!--本系统依赖管理 start-->

            <dependency>
                <groupId>com.little.g</groupId>
                <artifactId>priest-admin-common</artifactId>
                <version>0.0.1-SNAPSHOT</version>
            </dependency>

            <dependency>
                <groupId>com.little.g</groupId>
                <artifactId>priest-admin-api</artifactId>
                <version>0.0.1-SNAPSHOT</version>
            </dependency>

            <dependency>
                <groupId>com.little.g</groupId>
                <artifactId>priest-admin-dao</artifactId>
                <version>0.0.1-SNAPSHOT</version>
            </dependency>

            <dependency>
                <groupId>com.little.g</groupId>
                <artifactId>priest-user-token</artifactId>
                <version>0.0.1-SNAPSHOT</version>
            </dependency>

            <dependency>
                <groupId>com.little.g</groupId>
                <artifactId>priest-common</artifactId>
                <version>0.0.1-SNAPSHOT</version>
            </dependency>

            <dependency>
                <groupId>com.little.g</groupId>
                <artifactId>priest-user-api</artifactId>
                <version>0.0.1-SNAPSHOT</version>
            </dependency>

            <dependency>
                <groupId>com.little.g</groupId>
                <artifactId>priest-user-dao</artifactId>
                <version>0.0.1-SNAPSHOT</version>
            </dependency>

            <dependency>
                <groupId>com.little.g</groupId>
                <artifactId>dubbo-extend</artifactId>
                <version>0.0.1-SNAPSHOT</version>
            </dependency>

            <dependency>
                <groupId>com.little.g</groupId>
                <artifactId>priest-common-web</artifactId>
                <version>0.0.1-SNAPSHOT</version>
            </dependency>

            <dependency>
                <groupId>com.little.g</groupId>
                <artifactId>priest-demo-api</artifactId>
                <version>0.0.1-SNAPSHOT</version>
            </dependency>

            <dependency>
                <groupId>com.little.g</groupId>
                <artifactId>priest-demo-dao</artifactId>
                <version>0.0.1-SNAPSHOT</version>
            </dependency>
            <!--本系统依赖管理 end-->


            <dependency>
                <groupId>com.github.qcloudsms</groupId>
                <artifactId>qcloudsms</artifactId>
                <version>1.0.5</version>
            </dependency>


            <dependency>
                <groupId>commons-fileupload</groupId>
                <artifactId>commons-fileupload</artifactId>
                <version>[1.3.3)</version>
            </dependency>

            <dependency>
                <groupId>javax.servlet</groupId>
                <artifactId>servlet-api</artifactId>
                <version>2.5</version>
                <scope>provided</scope>
            </dependency>


            <dependency>
                <groupId>com.fasterxml.jackson.core</groupId>
                <artifactId>jackson-databind</artifactId>
                <version>[2.9.8,)</version>
            </dependency>

            <dependency>
                <groupId>com.fasterxml.jackson.module</groupId>
                <artifactId>jackson-module-afterburner</artifactId>
                <version>2.9.6</version>
            </dependency>

            <dependency>
                <groupId>org.reflections</groupId>
                <artifactId>reflections</artifactId>
                <version>0.9.10</version>
            </dependency>

            <dependency>
                <groupId>org.jodd</groupId>
                <artifactId>jodd-props</artifactId>
                <version>3.6.1</version>
            </dependency>

            <dependency>
                <groupId>com.github.pagehelper</groupId>
                <artifactId>pagehelper</artifactId>
                <version>RELEASE</version>
            </dependency>

            <dependency>
                <groupId>joda-time</groupId>
                <artifactId>joda-time</artifactId>
                <version>RELEASE</version>
            </dependency>


            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-freemarker</artifactId>
                <version>2.1.3.RELEASE</version>
            </dependency>

            <!-- Apache Dubbo  -->

            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-framework-bom</artifactId>
                <version>5.1.5.RELEASE</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>



            <dependency>
                <groupId>org.apache.dubbo</groupId>
                <artifactId>dubbo-dependencies-bom</artifactId>
                <version>${dubbo.version}</version>
                <type>pom</type>
                <scope>import</scope>

            </dependency>

            <dependency>
                <groupId>org.apache.dubbo</groupId>
                <artifactId>dubbo</artifactId>
                <version>${dubbo.version}</version>
                <exclusions>
                    <exclusion>
                        <groupId>org.springframework</groupId>
                        <artifactId>spring</artifactId>
                    </exclusion>
                    <exclusion>
                        <groupId>org.springframework</groupId>
                        <artifactId>spring-context</artifactId>
                    </exclusion>
                    <exclusion>
                        <groupId>javax.servlet</groupId>
                        <artifactId>servlet-api</artifactId>
                    </exclusion>
                    <exclusion>
                        <groupId>log4j</groupId>
                        <artifactId>log4j</artifactId>
                    </exclusion>
                </exclusions>
            </dependency>


            <dependency>
                <groupId>com.google.guava</groupId>
                <artifactId>guava</artifactId>
                <version>20.0</version>
            </dependency>

            <dependency>
                <groupId>org.apache.commons</groupId>
                <artifactId>commons-lang3</artifactId>
                <version>3.8.1</version>
            </dependency>

            <dependency>
                <groupId>commons-lang</groupId>
                <artifactId>commons-lang</artifactId>
                <version>2.6</version>
            </dependency>

            <dependency>
                <groupId>javax.validation</groupId>
                <artifactId>validation-api</artifactId>
                <version>2.0.1.Final</version>
            </dependency>

            <dependency>
                <groupId>org.hibernate</groupId>
                <artifactId>hibernate-validator</artifactId>
                <version>6.0.10.Final</version>
            </dependency>

            <dependency>
                <groupId>org.mybatis.spring.boot</groupId>
                <artifactId>mybatis-spring-boot-starter</artifactId>
                <version>2.0.0</version>
            </dependency>

            <dependency>
                <groupId>mysql</groupId>
                <artifactId>mysql-connector-java</artifactId>
                <version>${mysql-connector-java.version}</version>
            </dependency>

            <dependency>
                <groupId>tk.mybatis</groupId>
                <artifactId>mapper-spring-boot-starter</artifactId>
                <version>2.1.5</version>
            </dependency>

            <dependency>
                <groupId>tk.mybatis</groupId>
                <artifactId>mapper</artifactId>
                <version>${tk.mapper.version}</version>
            </dependency>

            <dependency>
                <groupId>tk.mybatis</groupId>
                <artifactId>mapper-generator</artifactId>
                <version>1.1.5</version>
            </dependency>

            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>druid</artifactId>
                <version>1.1.10</version>
            </dependency>

            <dependency>
                <groupId>com.googlecode.libphonenumber</groupId>
                <artifactId>libphonenumber</artifactId>
                <version>7.0.6</version>
            </dependency>

            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>fastjson</artifactId>
                <version>[1.2.31,)</version>
            </dependency>
        </dependencies>
    </dependencyManagement>


    <!-- 公共构建属性及插件配置 -->
    <build>
        <resources>
            <resource>
                <directory>src/main/resources</directory>
                <filtering>true</filtering>
            </resource>
            <resource>
                <directory>src/main/conf</directory>
                <filtering>true</filtering>
                <targetPath>conf</targetPath>
            </resource>
        </resources>

        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-jar-plugin</artifactId>
            </plugin>

            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-source-plugin</artifactId>
            </plugin>

            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-dependency-plugin</artifactId>
            </plugin>

            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-surefire-plugin</artifactId>
            </plugin>
        </plugins>

        <!-- 插件版本管理 -->

        <pluginManagement>
            <plugins>
                <plugin>
                    <groupId>org.apache.maven.plugins</groupId>
                    <artifactId>maven-compiler-plugin</artifactId>
                    <version>3.5</version>
                    <configuration>
                        <source>${java.version}</source>
                        <target>${java.version}</target>
                        <encoding>${project.build.sourceEncoding}</encoding>
                    </configuration>
                </plugin>

                <plugin>
                    <groupId>org.apache.maven.plugins</groupId>
                    <artifactId>maven-jar-plugin</artifactId>
                    <version>2.3.2</version>
                    <configuration>
                        <archive>
                            <index>true</index>
                        </archive>
                    </configuration>
                </plugin>

                <plugin>
                    <groupId>org.apache.maven.plugins</groupId>
                    <artifactId>maven-source-plugin</artifactId>
                    <version>2.4</version>
                    <executions>
                        <execution>
                            <id>attach-sources</id>
                            <goals>
                                <goal>jar-no-fork</goal>
                            </goals>
                        </execution>
                    </executions>
                </plugin>

                <plugin>
                    <groupId>org.apache.maven.plugins</groupId>
                    <artifactId>maven-dependency-plugin</artifactId>
                    <version>2.10</version>
                </plugin>

                <plugin>
                    <groupId>org.apache.maven.plugins</groupId>
                    <artifactId>maven-surefire-plugin</artifactId>
                    <version>2.19.1</version>
                    <configuration>
                        <skipTests>true</skipTests>
                    </configuration>
                </plugin>

                <plugin>
                    <groupId>org.apache.maven.plugins</groupId>
                    <artifactId>maven-release-plugin</artifactId>
                    <version>2.5.3</version>
                    <configuration>
                        <autoVersionSubmodules>true</autoVersionSubmodules>
                    </configuration>
                </plugin>

                <plugin>
                    <groupId>org.apache.maven.plugins</groupId>
                    <artifactId>maven-assembly-plugin</artifactId>
                    <version>2.6</version>
                </plugin>

                <plugin>
                    <groupId>org.apache.maven.plugins</groupId>
                    <artifactId>maven-deploy-plugin</artifactId>
                    <version>2.8.2</version>
                </plugin>


                <plugin>
                    <groupId>org.mybatis.generator</groupId>
                    <artifactId>mybatis-generator-maven-plugin</artifactId>
                    <version>1.3.7</version>
                    <configuration>
                        <verbose>true</verbose>
                        <overwrite>true</overwrite>
                        <configurationFile>${project.basedir}/src/test/resources/generatorConfig.xml</configurationFile>
                    </configuration>
                    <dependencies>
                        <dependency>
                            <groupId>mysql</groupId>
                            <artifactId>mysql-connector-java</artifactId>
                            <version>${mysql-connector-java.version}</version>
                        </dependency>
                        <dependency>
                            <groupId>tk.mybatis</groupId>
                            <artifactId>mapper</artifactId>
                            <version>${tk.mapper.version}</version>
                        </dependency>

                    </dependencies>
                </plugin>

                <plugin>
                    <groupId>com.little.g</groupId>
                    <artifactId>generator-maven-plugin</artifactId>
                    <version>0.0.1-SNAPSHOT</version>

                    <configuration>
                        <configurationFile>${project.basedir}/src/main/conf/GenerateConfig.xml</configurationFile>
                    </configuration>
                </plugin>

                <plugin>
                    <groupId>org.springframework.boot</groupId>
                    <artifactId>spring-boot-maven-plugin</artifactId>
                    <version>2.1.3.RELEASE</version>
                </plugin>
            </plugins>
        </pluginManagement>
    </build>

</project>

四 dao 项目配置

mybatis3 + mybatis-generator 组合可以称得上是 orm 界的瑞士军刀，mybatis 本身轻量，灵活，性能高但不具备敏捷开发的能力，mybatis-generator 插件则完美填补了 mybatis 本身的缺陷，下面让我们一睹他们的风采。

pom 依赖配置

没什么可说的直接贴带注释的 pom 配置:

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <groupId>com.little.g</groupId>
        <artifactId>priest-demo</artifactId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>
    <artifactId>priest-demo-dao</artifactId>
    <packaging>jar</packaging>

    <name>priest-demo-dao</name>
    <url>http://maven.apache.org</url>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.basedir>${project.basedir}</project.basedir>
    </properties>

    <profiles>
        <profile>
            <!-- 开发环境 -->
            <id>develop</id>
            <!-- 默认 -->
            <activation>
                <activeByDefault>true</activeByDefault>
            </activation>
            <properties>
                <!-- 数据库配置 -->
                <priest.jdbc.driver>com.mysql.jdbc.Driver</priest.jdbc.driver>
                <priest.jdbc.url>jdbc:mysql://192.168.2.101:3306/little_g?useUnicode=true&amp;characterEncoding=UTF-8&amp;autoReconnect=true</priest.jdbc.url>
                <priest.jdbc.username>priest</priest.jdbc.username>
                <priest.jdbc.password>priest</priest.jdbc.password>
            </properties>
        </profile>


        <profile>
            <!-- 线上环境  TODO -->
            <id>online</id>
            <activation>
                <activeByDefault>false</activeByDefault>
            </activation>
            <properties>
                <!-- 数据库 -->
                <priest.jdbc.driver>com.mysql.jdbc.Driver</priest.jdbc.driver>
                <priest.jdbc.url>jdbc:mysql://192.168.2.101:3306/little_g?useUnicode=true&amp;characterEncoding=UTF-8&amp;autoReconnect=true</priest.jdbc.url>
                <priest.jdbc.username>priest</priest.jdbc.username>
                <priest.jdbc.password>priest</priest.jdbc.password>
            </properties>
        </profile>
    </profiles>

    <dependencies>

        <dependency>
            <groupId>tk.mybatis</groupId>
            <artifactId>mapper-spring-boot-starter</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>


        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <!-- 带监控的阿里数据库连接池 -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-aspects</artifactId>
        </dependency>

    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.mybatis.generator</groupId>
                <artifactId>mybatis-generator-maven-plugin</artifactId>
                <configuration>
                        <verbose>true</verbose>
                        <overwrite>true</overwrite>
                        <configurationFile>${project.basedir}/src/test/resources/generatorConfig.xml</configurationFile>
                    </configuration>
                    <dependencies>
                        <dependency>
                            <groupId>mysql</groupId>
                            <artifactId>mysql-connector-java</artifactId>
                        </dependency>
                        <dependency>
                            <groupId>tk.mybatis</groupId>
                            <artifactId>mapper</artifactId>
                        </dependency>

                    </dependencies>
            </plugin>
        </plugins>
    </build>
</project>

spring 及 mybatis-generator 配置

为了让 mybatis-generator 和 spring 的数据库连接配置能够共享，我们对数据库配置配置信息进行了单独文件抽取 jdbc.properties

jdbc.driverClass=com.mysql.jdbc.Driver
jdbc.url=${priest.jdbc.url}
jdbc.user=${priest.jdbc.username}
jdbc.password=${priest.jdbc.password}

遵从 dubbo 的默认配置规范，我们将所有的 spring 配置文件放在
META-INF/spring 目录下 , 下面是 applicationContext-dao.xml 的配置:

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.0.xsd
     http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.0.xsd

     http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-3.0.xsd">

    <context:property-placeholder order="21" location="classpath*:jdbc.properties" file-encoding="UTF-8" ignore-unresolvable="true"/>

    <bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource" init-method="init" destroy-method="close">
        <property name="url" value="${jdbc.url}" />
        <property name="username" value="${jdbc.user}" />
        <property name="password" value="${jdbc.password}" />
        <property name="filters" value="stat" />
        <property name="maxActive" value="20" />
        <property name="initialSize" value="1" />
        <property name="maxWait" value="60000" />
        <property name="minIdle" value="1" />
        <property name="timeBetweenEvictionRunsMillis" value="60000" />
        <property name="minEvictableIdleTimeMillis" value="300000" />
        <property name="testWhileIdle" value="true" />
        <property name="testOnBorrow" value="false" />
        <property name="testOnReturn" value="false" />
        <property name="poolPreparedStatements" value="true" />
        <property name="maxOpenPreparedStatements" value="20" />

        <property name="asyncInit" value="true" />
    </bean>

    <!-- transaction manager, use JtaTransactionManager for global tx -->
    <bean id="transactionManager"
          class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource" />
    </bean>

    <!--事务模板 -->
    <bean id="transactionTemplate"
          class="org.springframework.transaction.support.TransactionTemplate">
        <property name="transactionManager" ref="transactionManager" />
        <!--ISOLATION_DEFAULT 表示由使用的数据库决定  -->
        <property name="isolationLevelName" value="ISOLATION_READ_COMMITTED"/>
        <property name="propagationBehaviorName" value="PROPAGATION_REQUIRED"/>
        <!-- <property name="timeout" value="30"/> -->
    </bean>

    <!-- enable autowire -->
    <context:annotation-config/>
    <!-- enable transaction demarcation with annotations -->
    <tx:annotation-driven mode="aspectj" transaction-manager="transactionManager" />

    <!-- define the SqlSessionFactory -->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="dataSource" />
        <!--要映射类的包路径，即POJO对象的路径-->
        <property name="typeAliasesPackage" value="com.little.g.*.model" />
        <!--扫描mapper文件，否则如果Mapper接口文件改名的话，就会出现找不到对应的Mapper中方法的错误-->
        <property name="mapperLocations" value="classpath*:com/little/g/*/mapper/*.xml"/>
    </bean>

    <bean id="sqlSessionTemplate" class="org.mybatis.spring.SqlSessionTemplate">
        <constructor-arg index="0" ref="sqlSessionFactory"></constructor-arg>
    </bean>

    <!-- scan for mappers and let them be autowired -->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <!--扫描Mapper类并使它们自动装载-->
        <property name="basePackage" value="com.little.g.**.mapper" />
    </bean>

</beans>

mybatis-generator 代码生成配置 generatorConfig.xml:

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
        PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
        "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">

<generatorConfiguration>

    <properties url="file://${project.basedir}/target/classes/jdbc.properties"/>

    <!--<context id="Mysql" targetRuntime="MyBatis3Simple" defaultModelType="flat">-->

    <context id="DB2Tables" targetRuntime="MyBatis3">

        <!-- 自动识别数据库关键字，默认false -->
        <property name="autoDelimitKeywords" value="true" />
        <!--可以使用``包括字段名，避免字段名与sql保留字冲突报错 -->
        <property name="beginningDelimiter" value="`" />
        <property name="endingDelimiter" value="`" />


        <plugin type="org.mybatis.generator.plugins.SerializablePlugin"></plugin>
        <plugin type="org.mybatis.generator.plugins.CaseInsensitiveLikePlugin"></plugin>
        <!-- caseSensitive默认false，当数据库表名区分大小写时，可以将该属性设置为true -->
        <!--  支持该模式
        <plugin type="tk.mybatis.mapper.generator.MapperPlugin">
            <property name="mappers" value="tk.mybatis.mapper.common.Mapper"/>
            <property name="caseSensitive" value="true"/>
        </plugin>
        -->
        <commentGenerator>
            <property name="suppressDate" value="true" />
            <property name="suppressAllComments" value="true" />
        </commentGenerator>
        <jdbcConnection driverClass="${jdbc.driverClass}"
                        connectionURL="${jdbc.url}"
                        userId="${jdbc.user}"
                        password="${jdbc.password}">
            <property name="nullCatalogMeansCurrent" value="true" />
        </jdbcConnection>

        <javaTypeResolver>
            <property name="forceBigDecimals" value="false" />
        </javaTypeResolver>

        <javaModelGenerator targetPackage="com.little.g.demo.model"
                            targetProject="${project.basedir}/src/main/java">
            <property name="enableSubPackages" value="true" />
            <property name="trimStrings" value="true" />
        </javaModelGenerator>

        <sqlMapGenerator targetPackage="com.little.g.demo.mapper"
                         targetProject="${project.basedir}/src/main/resources">
            <property name="enableSubPackages" value="true" />
        </sqlMapGenerator>

        <javaClientGenerator type="XMLMAPPER"
                             targetPackage="com.little.g.demo.mapper" targetProject="${project.basedir}/src/main/java">
            <property name="enableSubPackages" value="true" />
        </javaClientGenerator>


        <table tableName="user">
            <generatedKey column="id"  sqlStatement="JDBC"/>
        </table>

    </context>
</generatorConfiguration>

数据库建表

demo 测试 User 表建表 sql:

代码生成
命令行执行:
mvn clean install
cd priest/priest-demo/priest-demo-dao/
mvn  mybatis-generator:generate


输出生成文件名即可运行代码测试了
dao 测试
创建测试代码，运行 junit 测试
五 api 项目配置
api 项目为 web 层 调用 dubbo 的接口项目即接口规范,依照项目分层的逻辑，dao 层的 pojo 不可以被 api 依赖，api 层需要有自己的 pojo 即 dto:
创建 dto

六 service 项目配置
配置依赖
将 priest-demo-api ,priest-demo-dao 加入 service 项目依赖最终 pom.xml 配置如下 :




com.little.g

priest-demo

0.0.1-SNAPSHOT



4.0.0
<artifactId>priest-demo-service</artifactId>
<packaging>jar</packaging>

<name>priest-demo-service</name>
<url>http://maven.apache.org</url>




<properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
</properties>
<profiles>
    <profile>
        <!-- 开发环境 -->
        <id>develop</id>
        <!-- 默认 -->
        <activation>
            <activeByDefault>true</activeByDefault>
        </activation>
        <properties>

        </properties>
    </profile>

    <profile>
        <!-- 线上环境  -->
        <id>online</id>
        <activation>
            <activeByDefault>false</activeByDefault>
        </activation>
        <properties>

        </properties>
    </profile>
</profiles>

<dependencies>

    <dependency>
        <groupId>org.mybatis.spring.boot</groupId>
        <artifactId>mybatis-spring-boot-starter</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-devtools</artifactId>
        <scope>runtime</scope>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
    </dependency>

    <!-- dubbo 依赖 -->

    <dependency>
        <groupId>com.little.g</groupId>
        <artifactId>dubbo-extend</artifactId>
    </dependency>

    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-core</artifactId>
    </dependency>

    <dependency>
        <groupId>org.apache.dubbo</groupId>
        <artifactId>dubbo</artifactId>
    </dependency>
    <dependency>
        <groupId>io.netty</groupId>
        <artifactId>netty-all</artifactId>
    </dependency>
    <dependency>
        <groupId>org.apache.curator</groupId>
        <artifactId>curator-framework</artifactId>
    </dependency>
    <dependency>
        <groupId>org.apache.curator</groupId>
        <artifactId>curator-recipes</artifactId>
    </dependency>
    <dependency>
        <groupId>org.apache.zookeeper</groupId>
        <artifactId>zookeeper</artifactId>
    </dependency>
    <!-- dubbo 依赖 -->


    <dependency>
        <groupId>com.little.g</groupId>
        <artifactId>priest-demo-api</artifactId>
    </dependency>

    <dependency>
        <groupId>com.little.g</groupId>
        <artifactId>priest-demo-dao</artifactId>
    </dependency>

</dependencies>

<build>
    <plugins>

        <!--  assembly 打包 maven dubbo 部署包配置 -->
        <plugin>
            <artifactId>maven-assembly-plugin</artifactId>
            <configuration>
                <finalName>${project.name}</finalName>
                <descriptor>${project.parent.parent.basedir}/dubbo/assembly/assembly.xml</descriptor>
            </configuration>
            <executions>
                <execution>
                    <id>make-assembly</id>
                    <phase>package</phase>
                    <goals>
                        <goal>single</goal>
                    </goals>
                </execution>
            </executions>
        </plugin>

    </plugins>
</build>


spring 配置
config.properties 配置:
# 读取 parent zookeeper 配置
zookeeper.url=${priest.dubbo.zk.url}

META-INF/spring/spring-config.xml 配置:
<beans xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns="http://www.springframework.org/schema/beans" xmlns:tx="http://www.springframework.org/schema/tx"
       xmlns:util="http://www.springframework.org/schema/util"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd
       http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd
       http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util.xsd">

    <context:property-placeholder location="classpath:config.properties" ignore-unresolvable="true"
                                  file-encoding="UTF-8" />
    <!--  service 自动扫描-->
    <context:component-scan base-package="com.little.g.**.service"/>

</beans>


userService 代码实现
dubbo 服务配置
META-INF/spring/dubbo-config.xml:
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:dubbo="http://dubbo.apache.org/schema/dubbo"
       xmlns="http://www.springframework.org/schema/beans"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-2.5.xsd
	   http://dubbo.apache.org/schema/dubbo  http://dubbo.apache.org/schema/dubbo/dubbo.xsd">

    <dubbo:application name="com.little.g.demo" logger="slf4j"/>
    <dubbo:protocol name="dubbo"/>
    <dubbo:registry address="${zookeeper.url}"/>


    <dubbo:service interface="com.little.g.demo.api.UserService" ref="userService"/>


</beans>


dubbo 启动测试
dubbo junit 测试
七 web 项目配置
项目依赖配置
web 层增加 priest-demo-api 及 dubbo 依赖 pom.xml 配置如下
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>com.little.g</groupId>
        <artifactId>priest-demo</artifactId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>
    <groupId>com.little.g.demo</groupId>
    <artifactId>priest-demo-http</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>war</packaging>
    <name>priest-demo-http</name>
    <description>Demo project for Spring Boot</description>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-tomcat</artifactId>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <dependency>
            <groupId>org.apache.dubbo</groupId>
            <artifactId>dubbo</artifactId>
        </dependency>

        <dependency>
            <groupId>io.netty</groupId>
            <artifactId>netty-all</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.curator</groupId>
            <artifactId>curator-framework</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.curator</groupId>
            <artifactId>curator-recipes</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.zookeeper</groupId>
            <artifactId>zookeeper</artifactId>
        </dependency>

        <dependency>
            <groupId>com.little.g</groupId>
            <artifactId>priest-common-web</artifactId>
        </dependency>
        <dependency>
            <groupId>com.little.g</groupId>
            <artifactId>priest-demo-api</artifactId>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <executions>
                    <execution>
                        <goals>
                            <goal>repackage</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>

        </plugins>
    </build>

</project>


demo springboot 启动类编写
springboot 配置
dubbo 服务引用
META-INF/spring/dubbo-consume.xml:
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:dubbo="http://dubbo.apache.org/schema/dubbo"
       xmlns="http://www.springframework.org/schema/beans"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-2.5.xsd
	   http://dubbo.apache.org/schema/dubbo  http://dubbo.apache.org/schema/dubbo/dubbo.xsd">

    <dubbo:application name="com.little.g.demo.web" logger="slf4j"/>

    <dubbo:protocol name="dubbo"/>
    <dubbo:registry address="${zookeeper.url}"/>


    <dubbo:reference id="userService" interface="com.little.g.demo.api.UserService" />


</beans>

UserController.java  编写
八 测试
启动 dubbo
TestDubbo main 方法启动 dubbo
spring-boot 插件运行 spring-boot:run 启动 web 项目
cd priest/priest-demo/priest-demo-web
mvn spring-boot:run


相关链接

项目源代码  https://github.com/G-little/priest

[springboot] (https://docs.spring.io/spring-boot/docs/2.1.4.RELEASE/reference/htmlsingle/)

dubbo

mybatis3

mybatis-generator

最新 Springboot +Dubbo 分布式服务搭建

概述

项目构建

一基础服务

二项目结构规划

三父项目 pom 配置说明

四 dao 项目配置

pom 依赖配置

spring 及 mybatis-generator 配置

数据库建表

dao 测试

六 service 项目配置

配置依赖

spring 配置

userService 代码实现

dubbo 启动测试

项目依赖配置

demo springboot 启动类编写

UserController.java 编写

启动 dubbo

spring-boot 插件运行 spring-boot:run 启动 web 项目

相关链接

相关帖子

Dubbo SPI

后端 | SpringBoot 整合 Dubbo(基于 Nacos2)

Dubbo 详解

dubbo paylod 遇到的问题

Dubbo 系列笔记之自适应扩展机制

谁再悄咪咪的吃掉异常，我上去就是一 JIO

Spring Boot 中使用自定义注解，AOP 切面打印出入参日志及 Dubbo 链路追踪透传 traceId

欢迎来到这里！

最新 Springboot +Dubbo 分布式服务搭建

概述

项目构建

一 基础服务

二 项目结构规划

三 父项目 pom 配置说明

四 dao 项目配置

pom 依赖配置

spring 及 mybatis-generator 配置

数据库建表

dao 测试

六 service 项目配置

配置依赖

spring 配置

userService 代码实现

dubbo 启动测试

项目依赖配置

demo springboot 启动类编写

UserController.java 编写

启动 dubbo

spring-boot 插件运行 spring-boot:run 启动 web 项目

相关链接

相关帖子

Dubbo SPI

后端 | SpringBoot 整合 Dubbo(基于 Nacos2)

Dubbo 详解

dubbo paylod 遇到的问题

Dubbo 系列笔记之自适应扩展机制

谁再悄咪咪的吃掉异常，我上去就是一 JIO

Spring Boot 中使用自定义注解，AOP 切面打印出入参日志及 Dubbo 链路追踪透传 traceId

欢迎来到这里！

一基础服务

二项目结构规划

三父项目 pom 配置说明
