[RFC 2617] Digest 签名摘要式认证

Postman 测试工具

上图是 Postman 测试工具的页面截图，可以看到 Authorization Type 有很多种方式 ,这篇文章将介绍 Digest 签名摘要式认证，其它几种方式将在后续文章中介绍。

Bearer Token
Basic Auth
Digest Auth
Oauth 2.0

Digest 摘要认证优点

密码并非直接在摘要中使用，而是 HA1 = MD5(username:realm:password)。可解决明文方式在网络上发送密码的问题。

服务器随机数 nonce 允许包含时间戳。因此服务器可以检查客户端提交的随机数 nonce，以防止重放攻击。

RFC 规范文档

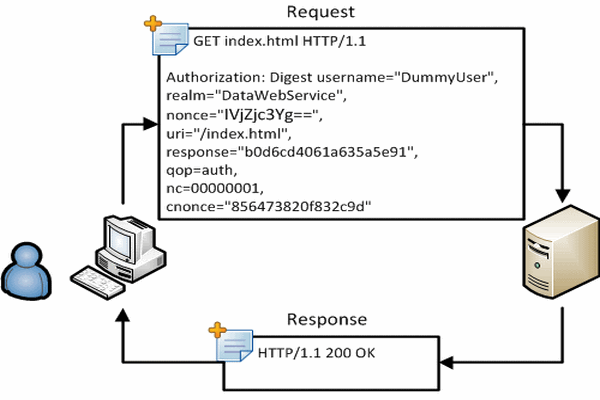

请求认证流程

客户端请求受保护资源，未携带认证信息

POST http://127.0.0.1:8087/digest/auth HTTP/1.1
Accept: application/json
cache-control: no-cache
Postman-Token: 0d4e957a-f8ab-4b01-850f-4967ff10b8a0
User-Agent: PostmanRuntime/7.6.0
Connection: keep-alive

服务器返回 401 状态和 WWW-Authenticate 响应头

HTTP/1.1 401
WWW-Authenticate: Digest realm="digest#Realm", qop="auth", nonce="MTU1NTMzMDg2MDA4MDo5MTdiMGI4ZmIwMDc2ZTgzOWU5NzA4YzEyZWEwNzlmMg=="
Cache-Control: no-cache, no-store, max-age=0, must-revalidate
Pragma: no-cache
Content-Type: application/json;charset=UTF-8

客户端接收到 401 响应表示需要进行认证，根据"算法"(后面介绍)生成一个消息摘要，将摘要放到 Authorization 的请求头中重新发送命令给服务器。

POST http://127.0.0.1:8087/digest/auth HTTP/1.1
Accept: application/json
User-Agent: PostmanRuntime/7.6.0
Authorization: Digest username="123", realm="digest#Realm", nonce="MTU1NTMzMDg2MDA4MDo5MTdiMGI4ZmIwMDc2ZTgzOWU5NzA4YzEyZWEwNzlmMg==", uri="/digest/auth", algorithm="MD5", qop=auth, nc=00000001, cnonce="eYnywapi", response="0568a40f79a6960114e21f6ef2b60807"
Connection: keep-alive

服务器从 Header 中取出 digest 摘要信息，根据其中信息重新计算新的摘要，然后跟客户端传输的摘要进行比较（就是比较 response 的值是否相等）；因为服务器拥有与客户端同样的信息，因此服务器可以进行同样的计算，以验证客户端提交的 response 值的正确性。
```
HTTP/1.1 200
Expires: 0
Content-Type: application/json;charset=UTF-8
Content-Length: 22

** digest auth is success **
```

WWW-Authenticate 响应头字段

realm: 显示给客户端的字符串 example is registered_users@example.com

nonce: 服务端生成唯一的、不重复的随机值

//RFC2617示例 nonce = BASE64(time-stamp MD5(time-stamp ":" ETag ":" private-key))
//下面是spring-security的实现
long expiryTime = System.currentTimeMillis() + (long)(this.nonceValiditySeconds * 1000);
String signatureValue = DigestAuthUtils.md5Hex(expiryTime + ":" + this.key);
String nonceValue = expiryTime + ":" + signatureValue;
String nonceValueBase64 = new String(Base64.getEncoder().encode(nonceValue.getBytes()));

algorithm: 默认MD5算法
opaque:
qop: auth/auth-int 会影响摘要的算法
stale:
密码随机数nonce过期

Authorization 请求头字段

response: 客户端根据算法算出的摘要值
username: 要认证的用户名
realm: 认证域,可取任意标识值
uri: 请求的资源位置
qop: 保护质量
nonce: 服务器密码随机数
nc: 16进制请求认证计数器,第一次 00000001
algorithm: 默认MD5算法
cnonce: 客户端密码随机数

Request-Digest 摘要计算过程

若算法是：MD5 或者是未指定
则 A1= <username>:<realm>:<passwd>

若 qop 未定义或者 auth：
则 A2= <request-method>:<digest-uri-value>

若 qop 为 auth
      response=MD5(MD5(A1):<nonce>:<nc>:<cnonce>:<qop>:MD5(A2))
若 qop 没有定义
      response=MD5(MD5(A1):<nonce>:MD5(A2))

客户端实现 Chrome

Chrome 请求受保护资源，弹出用户名密码输入框
点击取消，返回 HTTP/1.1 401
和 WWW-Authenticate 响应头
输入用户名和密码再次请求，Header Authorization 中携带计算出的 response 值，服务器验证成功，成功请求该 URI 资源

重复刷新，请求头摘要中的 nc 计数器会递增，当 nonce 过期时，会返回 stale=false

Authorization:
	Digest username="123",
	realm="digest#Realm",
	nonce="MTU1NTUxMTA2MTc2MTo4MGFjOWUyNTk0Mzc1NDNmMjA0Y2RiZTQ1MDM4Yjc5Ng==",
	uri="/digest/auth",
	response="aaba4f7bfa8177ce3f94d04afe1053db",
	qop=auth,
	nc=00000005,
	cnonce="22d2bd7af81592f7"

服务端 Spring-Security 实现分析

DigestAuthenticationEntryPoint

设置 401 和 WWW-Authenticate 响应头

public class DigestAuthenticationEntryPoint implements AuthenticationEntryPoint, InitializingBean, Ordered {

    private static final Log logger = LogFactory.getLog(DigestAuthenticationEntryPoint.class);
    private String key;
    private String realmName;
    private int nonceValiditySeconds = 300;
    private int order = 2147483647;

    public void commence(HttpServletRequest request, HttpServletResponse response, AuthenticationException authException) throws IOException, ServletException {
        long expiryTime = System.currentTimeMillis() + (long)(this.nonceValiditySeconds * 1000);
        String signatureValue = DigestAuthUtils.md5Hex(expiryTime + ":" + this.key);
        String nonceValue = expiryTime + ":" + signatureValue;
        String nonceValueBase64 = new String(Base64.getEncoder().encode(nonceValue.getBytes()));
        String authenticateHeader = "Digest realm=\"" + this.realmName + "\", qop=\"auth\", nonce=\"" + nonceValueBase64 + "\"";
        if (authException instanceof NonceExpiredException) {
            authenticateHeader = authenticateHeader + ", stale=\"true\"";
        }
        if (logger.isDebugEnabled()) {
            logger.debug("WWW-Authenticate header sent to user agent: " + authenticateHeader);
        }
        response.addHeader("WWW-Authenticate", authenticateHeader);
        response.sendError(HttpStatus.UNAUTHORIZED.value(), HttpStatus.UNAUTHORIZED.getReasonPhrase());
    }

}

DigestAuthenticationFilter

过滤器拦截

//摘录部分代码
String header = request.getHeader("Authorization");
if (header == null || !header.startsWith("Digest ")) {
  chain.doFilter(request, response);
  return;
}
//header中获取摘要信息
//this.username = headerMap.get("username");
//this.realm = headerMap.get("realm");
//this.nonce = headerMap.get("nonce");
//this.uri = headerMap.get("uri");
//this.response = headerMap.get("response");
//this.qop = headerMap.get("qop"); // RFC 2617 extension
//this.nc = headerMap.get("nc"); // RFC 2617 extension
//this.cnonce = headerMap.get("cnonce"); // RFC 2617 extensionDigestData digestAuth = new DigestData(header);
try {
digestAuth.validateAndDecode(this.authenticationEntryPoint.getKey(),this.authenticationEntryPoint.getRealmName());
}catch (BadCredentialsException e) {
  fail(request, response, e);
  return;
}
//注意:DAO-提供的密码必须是明文-没有编码/加盐
boolean cacheWasUsed = true;
UserDetails user = this.userCache.getUserFromCache(digestAuth.getUsername());
String serverDigestMd5;
try {
  if (user == null) {
    cacheWasUsed = false;
    user = this.userDetailsService.loadUserByUsername(digestAuth.getUsername());
    //用户不存在 直接抛出异常信息
    if (user == null) {
      throw new AuthenticationServiceException("AuthenticationDao returned null,which is an interface contract violation");
    }
    this.userCache.putUserInCache(user);
  }
  //根据算法 计算response值
  serverDigestMd5 = digestAuth.calculateServerDigest(user.getPassword(),request.getMethod());
}catch (UsernameNotFoundException notFound) {
  fail(request, response,new BadCredentialsException(this.messages.getMessage("DigestAuthenticationFilter.usernameNotFound",new Object[] { digestAuth.getUsername() },"Username {0} not found")));
  return;
}
//比较客户端传输和服务器计算的response
if (!serverDigestMd5.equals(digestAuth.getResponse())) {
  if (logger.isDebugEnabled()) {
    logger.debug("Expected response: '" + serverDigestMd5 + "' but received: '" + digestAuth.getResponse() + "'; is AuthenticationDao returning clear text passwords?");
	}
  fail(request, response,new BadCredentialsException(this.messages.getMessage("DigestAuthenticationFilter.incorrectResponse","Incorrect response")));
  return;
}
//检查 nonce 是否过期
if (digestAuth.isNonceExpired()) {
  fail(request, response,new NonceExpiredException(this.messages.getMessage("DigestAuthenticationFilter.nonceExpired","Nonce has expired/timed out")));
  return;
}
if (logger.isDebugEnabled()) {
  logger.debug("Authentication success for user: '" + digestAuth.getUsername() + "' with response: '" + digestAuth.getResponse() + "'");
}

DigestAuthUtils

摘要计算工具类

static String generateDigest(boolean passwordAlreadyEncoded, String username,

		String realm, String password, String httpMethod, String uri, String qop,
		String nonce, String nc, String cnonce) throws IllegalArgumentException {
	String a1Md5;
	String a2 = httpMethod + ":" + uri;
	String a2Md5 = md5Hex(a2);
	if (passwordAlreadyEncoded) {
		a1Md5 = password;
	}else {
		a1Md5 = DigestAuthUtils.encodePasswordInA1Format(username, realm, password);
	}
	String digest;
	if (qop == null) {
		// as per RFC 2069 compliant clients (also reaffirmed by RFC 2617)
		digest = a1Md5 + ":" + nonce + ":" + a2Md5;
	}else if ("auth".equals(qop)) {
		// As per RFC 2617 compliant clients
		digest = a1Md5 + ":" + nonce + ":" + nc + ":" + cnonce + ":" + qop + ":"
				+ a2Md5;
	}else {
		throw new IllegalArgumentException("This method does not support a qop: '"
				+ qop + "'");
	}
	return md5Hex(digest);
}

Postman 测试工具

Digest 摘要认证优点

RFC 规范文档

请求认证流程

WWW-Authenticate 响应头字段

Authorization 请求头字段

Request-Digest 摘要计算过程

客户端实现 Chrome

服务端 Spring-Security 实现分析

DigestAuthenticationEntryPoint

DigestAuthenticationFilter

DigestAuthUtils
