对于集成新版本的 MyBatis-Plus,Spring Boot 版本官方提供了详细的集成方案,但是 Spring MVC 版本显得相对来说就有点儿简单、不完善,毕竟官方推荐使用 Spring Boot 方式集成。研究了一下,做个记录。
1 介绍
MyBatis-Plus(简称 MP)是一个 MyBatis 的增强工具,在 MyBatis 的基础上只做增强不做改变,为简化开发、提高效率而生。具体的介绍不用多说,直接看官方文档介绍就行:https://mybatis.plus/guide/。
这里集成版本使用的是 MyBatis-Plus 目前的最新版本:3.2.0
版本。
2.x 版本集成教程网上有很多,但是 2.x 版本的 JDK 最高只能 1.7
。
2 集成
2.1 要求
全新的 MyBatis-Plus
3.0 版本基于 JDK8,提供了 lambda
形式的调用,所以安装集成 MP3.0 要求如下:
-
JDK 8+
-
Maven or Gradle
IDE 这里选择的是 IntelliJ IDEA,其他也无所谓,大同小异。
Spring 版本这里使用的是 5.2.0.RELEASE
2.2 创建 maven 项目

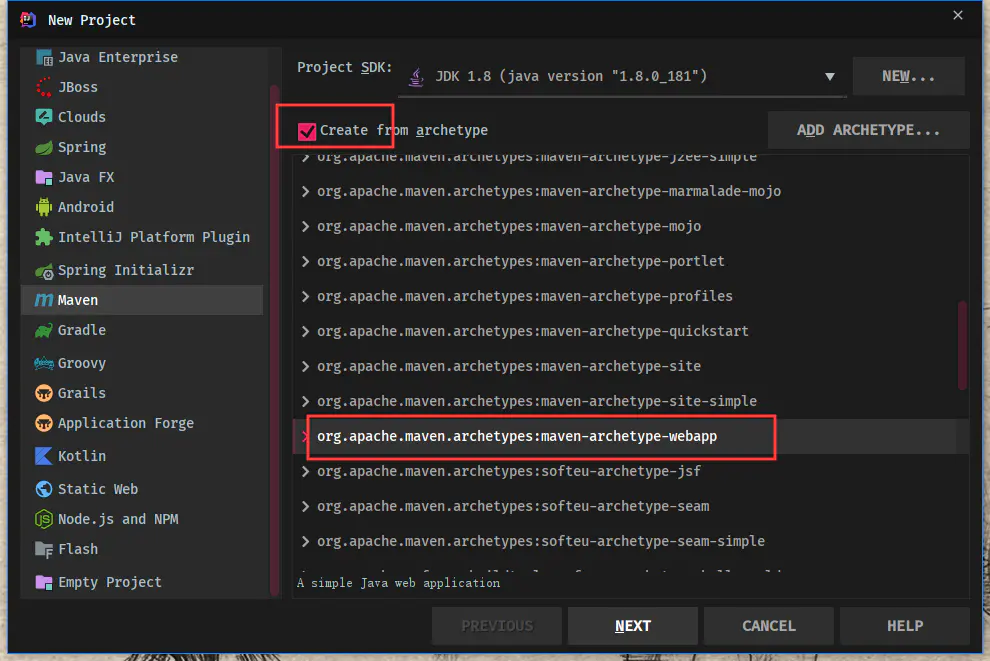

创建项目比较简单,如图:
填写相关信息,完成创建。
这里给个创建项目的参考链接:https://blog.csdn.net/MaNongXf/article/details/83418353
看到输出 Hello World 页面这一步,项目创建就算是完成了。

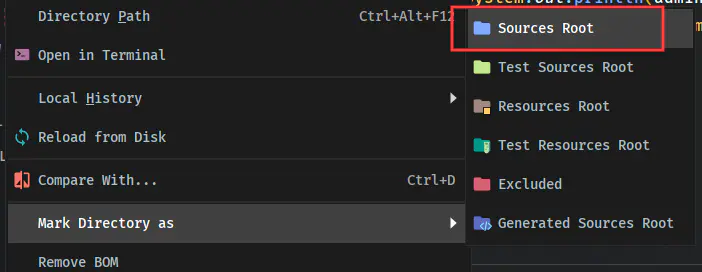

在 main 下新建 Directory:java,选中 java 鼠标右键,选择如下:
同理创建 resources,test 两个文件夹,分别标记为 Resources Root 和 Test Sources Root

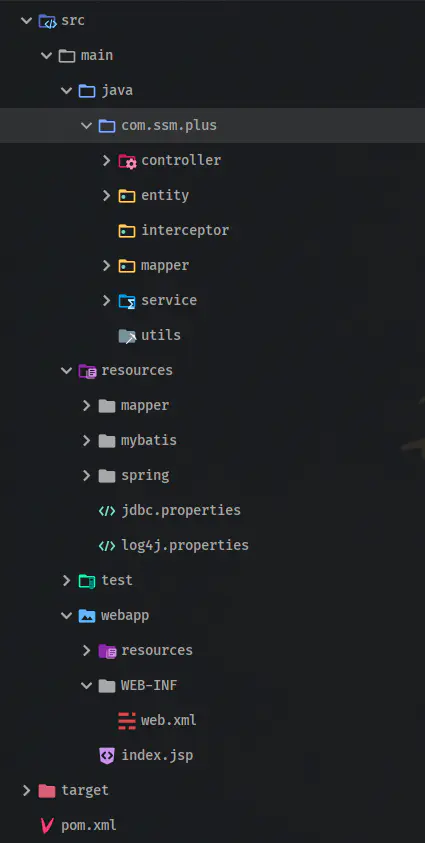

项目结构如下:
其中,java > resources 下的 mapper 文件夹是用于存放自定义的 mybatis 的 xml 文件
mybatis 文件夹用于存放 mybatis 的配置文件
2.3 配置文件
2.3.1 pom.xml
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.ssm.plus</groupId>
<artifactId>ssm-plus</artifactId>
<version>1.0-SNAPSHOT</version>
<packaging>war</packaging>
<name>ssm-plus Maven Webapp</name>
<!-- FIXME change it to the project's website -->
<url>http://www.example.com</url>
<properties>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<maven.compiler.source>1.8</maven.compiler.source>
<maven.compiler.target>1.8</maven.compiler.target>
<servlet.version>3.1.0</servlet.version>
<jsp.version>2.3.1</jsp.version>
<jstl.version>1.2</jstl.version>
<mybatisplus.version>3.2.0</mybatisplus.version>
<spring.version>5.2.0.RELEASE</spring.version>
<mysql.version>5.1.40</mysql.version>
<log4j.version>1.2.17</log4j.version>
<lombok.version>1.18.10</lombok.version>
<fastjson.version>1.2.62</fastjson.version>
<dbcp2.version>2.6.0</dbcp2.version>
<fileupload.version>1.3.3</fileupload.version>
<io.version>2.6</io.version>
</properties>
<dependencies>
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>4.12</version>
<scope>test</scope>
</dependency>
<!-- 加入servlet的依赖 -->
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>javax.servlet-api</artifactId>
<version>${servlet.version}</version>
<scope>provided</scope>
</dependency>
<!-- 加入jsp的依赖 -->
<dependency>
<groupId>javax.servlet.jsp</groupId>
<artifactId>javax.servlet.jsp-api</artifactId>
<version>${jsp.version}</version>
<scope>provided</scope>
</dependency>
<!-- 加入jstl的依赖 -->
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>jstl</artifactId>
<version>${jstl.version}</version>
</dependency>
<!-- 加入mybatis-plus的依赖 -->
<dependency>
<groupId>com.baomidou</groupId>
<artifactId>mybatis-plus</artifactId>
<version>${mybatisplus.version}</version>
</dependency>
<!-- https://mvnrepository.com/artifact/org.projectlombok/lombok -->
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<version>${lombok.version}</version>
<scope>provided</scope>
</dependency>
<!-- 加入spring的依赖 -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-context</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-test</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-aspects</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-aop</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-core</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-expression</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-jdbc</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-tx</artifactId>
<version>${spring.version}</version>
</dependency>
<!-- 加入springmvc的依赖 -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-webmvc</artifactId>
<version>${spring.version}</version>
</dependency>
<!-- 加入mysql的依赖 -->
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>${mysql.version}</version>
</dependency>
<!-- 加入log4j的依赖 -->
<dependency>
<groupId>log4j</groupId>
<artifactId>log4j</artifactId>
<version>${log4j.version}</version>
</dependency>
<!-- 加入dbcp2数据库依赖 -->
<dependency>
<groupId>org.apache.commons</groupId>
<artifactId>commons-dbcp2</artifactId>
<version>${dbcp2.version}</version>
</dependency>
<!-- 加入fileupload上传依赖 -->
<dependency>
<groupId>commons-fileupload</groupId>
<artifactId>commons-fileupload</artifactId>
<version>${fileupload.version}</version>
</dependency>
<!-- 加入io依赖 -->
<dependency>
<groupId>commons-io</groupId>
<artifactId>commons-io</artifactId>
<version>${io.version}</version>
</dependency>
<!-- FastJson -->
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>fastjson</artifactId>
<version>${fastjson.version}</version>
</dependency>
</dependencies>
<build>
<finalName>ssm-plus</finalName>
<pluginManagement><!-- lock down plugins versions to avoid using Maven defaults (may be moved to parent pom) -->
<plugins>
<plugin>
<artifactId>maven-clean-plugin</artifactId>
<version>3.1.0</version>
</plugin>
<!-- see http://maven.apache.org/ref/current/maven-core/default-bindings.html#Plugin_bindings_for_war_packaging -->
<plugin>
<artifactId>maven-resources-plugin</artifactId>
<version>3.0.2</version>
</plugin>
<plugin>
<artifactId>maven-compiler-plugin</artifactId>
<version>3.8.0</version>
</plugin>
<plugin>
<artifactId>maven-surefire-plugin</artifactId>
<version>2.22.1</version>
</plugin>
<plugin>
<artifactId>maven-war-plugin</artifactId>
<version>3.2.2</version>
</plugin>
<plugin>
<artifactId>maven-install-plugin</artifactId>
<version>2.5.2</version>
</plugin>
<plugin>
<artifactId>maven-deploy-plugin</artifactId>
<version>2.8.2</version>
</plugin>
</plugins>
</pluginManagement>
</build>
</project>
在普通 SSM 项目中,需要引入 mybtais
和 mybtais-spring
两个依赖,这里将这两个依赖替换成 mybatis-plus
的依赖,mybatis-plus
会自动引入这两个依赖,故这里不用重复引入,以免冲突。
2.3.2 mybatis-config.xml
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD SQL Map Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<!--
| plugins在配置文件中的位置必须符合要求,否则会报错,顺序如下:
| properties?, settings?,
| typeAliases?, typeHandlers?,
| objectFactory?,objectWrapperFactory?,
| plugins?,
| environments?, databaseIdProvider?, mappers?
|-->
<configuration>
<!--
| 全局配置设置
|
| 可配置选项 默认值, 描述
|
| aggressiveLazyLoading true, 当设置为‘true’的时候,懒加载的对象可能被任何懒属性全部加载。否则,每个属性都按需加载。
| multipleResultSetsEnabled true, 允许和不允许单条语句返回多个数据集(取决于驱动需求)
| useColumnLabel true, 使用列标签代替列名称。不同的驱动器有不同的作法。参考一下驱动器文档,或者用这两个不同的选项进行测试一下。
| useGeneratedKeys false, 允许JDBC 生成主键。需要驱动器支持。如果设为了true,这个设置将强制使用被生成的主键,有一些驱动器不兼容不过仍然可以执行。
| autoMappingBehavior PARTIAL, 指定MyBatis 是否并且如何来自动映射数据表字段与对象的属性。PARTIAL将只自动映射简单的,没有嵌套的结果。FULL 将自动映射所有复杂的结果。
| defaultExecutorType SIMPLE, 配置和设定执行器,SIMPLE 执行器执行其它语句。REUSE 执行器可能重复使用prepared statements 语句,BATCH执行器可以重复执行语句和批量更新。
| defaultStatementTimeout null, 设置一个时限,以决定让驱动器等待数据库回应的多长时间为超时
| -->
<settings>
<!-- 这个配置使全局的映射器启用或禁用缓存 -->
<setting name="cacheEnabled" value="true"/>
<!-- 全局启用或禁用延迟加载。当禁用时,所有关联对象都会即时加载 -->
<setting name="lazyLoadingEnabled" value="true"/>
<setting name="multipleResultSetsEnabled" value="true"/>
<setting name="useColumnLabel" value="true"/>
<setting name="defaultExecutorType" value="REUSE"/>
<setting name="defaultStatementTimeout" value="25000"/>
</settings>
</configuration>
2.3.3 spring.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:util="http://www.springframework.org/schema/util"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/util https://www.springframework.org/schema/util/spring-util.xsd">
<!-- 引入属性文件 -->
<context:property-placeholder location="classpath:jdbc.properties"/>
<util:properties id="configProperties" location="classpath:jdbc.properties" />
<!-- Service包(自动注入) -->
<context:component-scan base-package="com.ssm.plus.service"/>
<import resource="classpath:spring/spring-mybatis.xml"/>
</beans>
2.3.4 spring-mvc.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:mvc="http://www.springframework.org/schema/mvc"
xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/mvc https://www.springframework.org/schema/mvc/spring-mvc.xsd http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd">
<mvc:default-servlet-handler/>
<!-- Controller包(自动注入) -->
<context:component-scan base-package="com.ssm.plus.controller"/>
<!-- 注解映射器,适配器 -->
<mvc:annotation-driven >
<mvc:message-converters register-defaults="true">
<!-- 避免IE执行AJAX时,返回JSON出现下载文件 -->
<!-- FastJson -->
<bean id="fastJsonHttpMessageConverter"
class="com.alibaba.fastjson.support.spring.FastJsonHttpMessageConverter">
<property name="supportedMediaTypes">
<list>
<!-- 这里顺序不能反,一定先写text/html,不然ie下出现下载提示 -->
<value>text/html;charset=UTF-8</value>
<value>application/json;charset=UTF-8</value>
</list>
</property>
<property name="features">
<array value-type="com.alibaba.fastjson.serializer.SerializerFeature">
<!-- 避免循环引用 -->
<value>DisableCircularReferenceDetect</value>
<!-- 是否输出值为null的字段 -->
<value>WriteMapNullValue</value>
<!-- 数值字段如果为null,输出为0,而非null -->
<value>WriteNullNumberAsZero</value>
<!-- 字符类型字段如果为null,输出为"",而非null -->
<value>WriteNullStringAsEmpty</value>
<!-- List字段如果为null,输出为[],而非null -->
<value>WriteNullListAsEmpty</value>
<!-- Boolean字段如果为null,输出为false,而非null -->
<value>WriteNullBooleanAsFalse</value>
</array>
</property>
</bean>
</mvc:message-converters>
</mvc:annotation-driven>
<!-- 资源映射 -->
<mvc:resources location="/resources/" mapping="/resources/**" />
<!-- 视图解析器 -->
<bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
<property name="prefix" value="/WEB-INF/jsp/" />
<property name="suffix" value=".jsp" />
</bean>
<!-- 定义文件上传解析器 -->
<bean id="multipartResolver"
class="org.springframework.web.multipart.commons.CommonsMultipartResolver">
<!-- 设定默认编码 -->
<property name="defaultEncoding" value="UTF-8"/>
<!-- 设定文件上传的最大值5MB,5*1024*1024 -->
<property name="maxUploadSize" value="5242880"/>
</bean>
<!-- 拦截器 -->
<!--<mvc:interceptors>
<!– 多个拦截器,顺序执行
用户身份校验的拦截器 –>
<mvc:interceptor>
<mvc:mapping path="/admin/**" />
<bean class="com.ssm.plus.interceptor.LoginInterceptor"></bean>
</mvc:interceptor>
</mvc:interceptors>-->
</beans>
2.3.5 spring-mybatis.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:tx="http://www.springframework.org/schema/tx"
xmlns:aop="http://www.springframework.org/schema/aop"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd http://www.springframework.org/schema/aop https://www.springframework.org/schema/aop/spring-aop.xsd">
<!-- 数据库连接池 -->
<bean id="dataSource" class="org.apache.commons.dbcp2.BasicDataSource" destroy-method="close">
<property name="driverClassName" value="${jdbc.driver}" />
<property name="url" value="${jdbc.url}" />
<property name="username" value="${jdbc.username}" />
<property name="password" value="${jdbc.password}" />
<property name="maxTotal" value="10" />
<property name="minIdle" value="5" />
<property name="initialSize" value="5" />
</bean>
<!-- Spring整合Mybatis,更多查看文档:http://mp.baomidou.com -->
<bean id="sqlSessionFactory" class="com.baomidou.mybatisplus.extension.spring.MybatisSqlSessionFactoryBean">
<property name="dataSource" ref="dataSource"/>
<!-- 自动扫描Mapping.xml文件 -->
<property name="mapperLocations" value="classpath:mapper/*.xml"/>
<property name="configLocation" value="classpath:mybatis/mybatis-config.xml"/>
<property name="typeAliasesPackage" value="com.ssm.plus.entity.*"/>
<!-- 分页 -->
<property name="plugins">
<array>
<bean class="com.baomidou.mybatisplus.extension.plugins.PaginationInterceptor" />
</array>
</property>
<!-- 全局配置注入 -->
<property name="globalConfig" ref="globalConfig" />
</bean>
<bean id="globalConfig" class="com.baomidou.mybatisplus.core.config.GlobalConfig">
<property name="dbConfig" ref="dbConfig"/>
</bean>
<bean id="dbConfig" class="com.baomidou.mybatisplus.core.config.GlobalConfig.DbConfig">
<property name="keyGenerator" ref="keyGenerator"/>
</bean>
<bean id="keyGenerator" class="com.baomidou.mybatisplus.extension.incrementer.DB2KeyGenerator"/>
<!-- MyBatis 动态扫描 -->
<bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
<property name="basePackage" value="com.ssm.plus.mapper"/>
</bean>
<!-- 配置事务管理 -->
<bean name="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
<property name="dataSource" ref="dataSource"/>
</bean>
<!-- 事务管理 属性 -->
<tx:advice id="transactionAdvice" transaction-manager="transactionManager">
<tx:attributes>
<tx:method name="add*" propagation="REQUIRED"/>
<tx:method name="append*" propagation="REQUIRED"/>
<tx:method name="save*" propagation="REQUIRED"/>
<tx:method name="update*" propagation="REQUIRED"/>
<tx:method name="modify*" propagation="REQUIRED"/>
<tx:method name="edit*" propagation="REQUIRED"/>
<tx:method name="insert*" propagation="REQUIRED"/>
<tx:method name="delete*" propagation="REQUIRED"/>
<tx:method name="remove*" propagation="REQUIRED"/>
<tx:method name="repair" propagation="REQUIRED"/>
<tx:method name="get*" propagation="REQUIRED" read-only="true"/>
<tx:method name="find*" propagation="REQUIRED" read-only="true"/>
<tx:method name="load*" propagation="REQUIRED" read-only="true"/>
<tx:method name="search*" propagation="REQUIRED" read-only="true"/>
<tx:method name="datagrid*" propagation="REQUIRED" read-only="true"/>
<tx:method name="*" propagation="REQUIRED" read-only="true"/>
</tx:attributes>
</tx:advice>
<!-- 配置切面 -->
<aop:config>
<aop:pointcut id="transactionPointcut" expression="execution(* com.ssm.plus.service..*.*(..))"/>
<aop:advisor pointcut-ref="transactionPointcut" advice-ref="transactionAdvice"/>
</aop:config>
</beans>
2.3.6 web.xml
<?xml version="1.0" encoding="UTF-8"?>
<web-app version="3.0" xmlns="http://java.sun.com/xml/ns/javaee" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd">
<display-name>ssm-plus</display-name>
<!-- 加载Spring配置文件 -->
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:spring/spring.xml</param-value>
</context-param>
<!-- 字符集 过滤器 -->
<filter>
<filter-name>encodingFilter</filter-name>
<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
<init-param>
<param-name>encoding</param-name>
<param-value>UTF-8</param-value>
</init-param>
</filter>
<filter-mapping>
<filter-name>encodingFilter</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
<!-- Spring监听器 -->
<listener>
<description>Spring监听器</description>
<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
</listener>
<!-- 防止Spring内存溢出监听器 -->
<listener>
<listener-class>org.springframework.web.util.IntrospectorCleanupListener</listener-class>
</listener>
<!-- Spring MVC -->
<servlet>
<servlet-name>SpringMVC</servlet-name>
<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
<init-param>
<description>SpringMVC</description>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:spring/spring-mvc.xml</param-value>
</init-param>
<load-on-startup>1</load-on-startup>
</servlet>
<servlet-mapping>
<servlet-name>SpringMVC</servlet-name>
<url-pattern>/</url-pattern>
</servlet-mapping>
<!-- Session超时时间 -->
<session-config>
<session-timeout>15</session-timeout>
</session-config>
</web-app>
2.3.7 jdbc.properties
jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/db_ssmp?useUnicode=true&characterEncoding=utf-8&useSSL=false
jdbc.username=
jdbc.password=
2.3.8 log4j.properties
# Global logging configuration
log4j.rootLogger=DEBUG, stdout
# MyBatis logging configuration...
log4j.logger.org.mybatis.example.BlogMapper=TRACE
# Console output...
log4j.appender.stdout=org.apache.log4j.ConsoleAppender
log4j.appender.stdout.layout=org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern=%5p [%t] - %m%n
2.4 测试
2.4.1 实体类 Admin.java
package com.ssm.plus.entity;
import com.baomidou.mybatisplus.annotation.TableName;
import lombok.Data;
/**
* Created by kangaroo on 2019/11/18 21:16.
* QQ: 326170945
* Description:
*/
@Data
@TableName("t_admin")
public class Admin {
private long id;
private String name;
private String username;
private String password;
}
- 注:
- @Data 注解是 lombok 提供的,需要开发工具安装 lombok 的插件才能使用,如果没有安装,就删除这个注解,手动生成 getter 和 setter 方法,并在 pom.xml 中删除 lombok 的依赖。
- @TableName 注解是 mybatis-plus 提供的,用于指定数据库表名,默认实体类名。具体注解,可以参考官方文档。
2.4.2 dao 层接口 AdminMapper.java
package com.ssm.plus.mapper;
import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.ssm.plus.entity.Admin;
/**
* Created by kangaroo on 2019/11/18 21:15.
* QQ: 326170945
* Description:
*/
public interface AdminMapper extends BaseMapper<Admin> {
}
2.4.3 测试方法类 MpTest.java
package com.ssm.plus.test;
import com.ssm.plus.entity.Admin;
import com.ssm.plus.mapper.AdminMapper;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;
import java.util.List;
/**
* Created by kangaroo on 2019/11/18 19:52.
* QQ: 326170945
* Description:
*/
@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration(locations = {"classpath*:spring/spring.xml"})
public class MpTest {
@Autowired
private AdminMapper adminMapper;
@Test
public void select(){
System.out.println("查询测试:");
List<Admin> adminList = adminMapper.selectList(null);
System.out.println(adminList.size());
adminList.forEach(System.out::println);
}
}

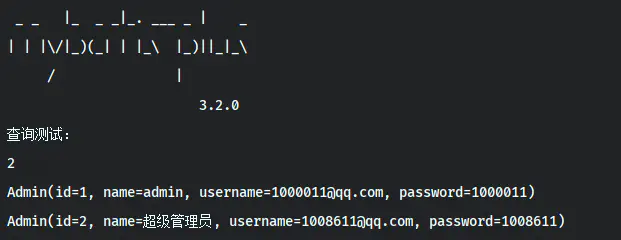

测试结果:
3 Demo 下载
demo 下载地址:https://github.com/kangaroo1122/ssm-plus
欢迎来到这里!
我们正在构建一个小众社区,大家在这里相互信任,以平等 • 自由 • 奔放的价值观进行分享交流。最终,希望大家能够找到与自己志同道合的伙伴,共同成长。
注册 关于
