2. yolov5+tensorrt+deepstream

介绍

在主机上训练自己的 Yolov5 模型，转为 TensorRT 模型并部署到 Jetson Nano 上，用 DeepStream 运行。（先以 yolov5s.pt 为例）

环境

硬件环境：

带 cuda 的显卡主机
Jetson Nano 4G B01
csi 摄像头、usb 摄像头

软件环境：

yolov5-5.0
jetpack-4.4
deepstream-5.0

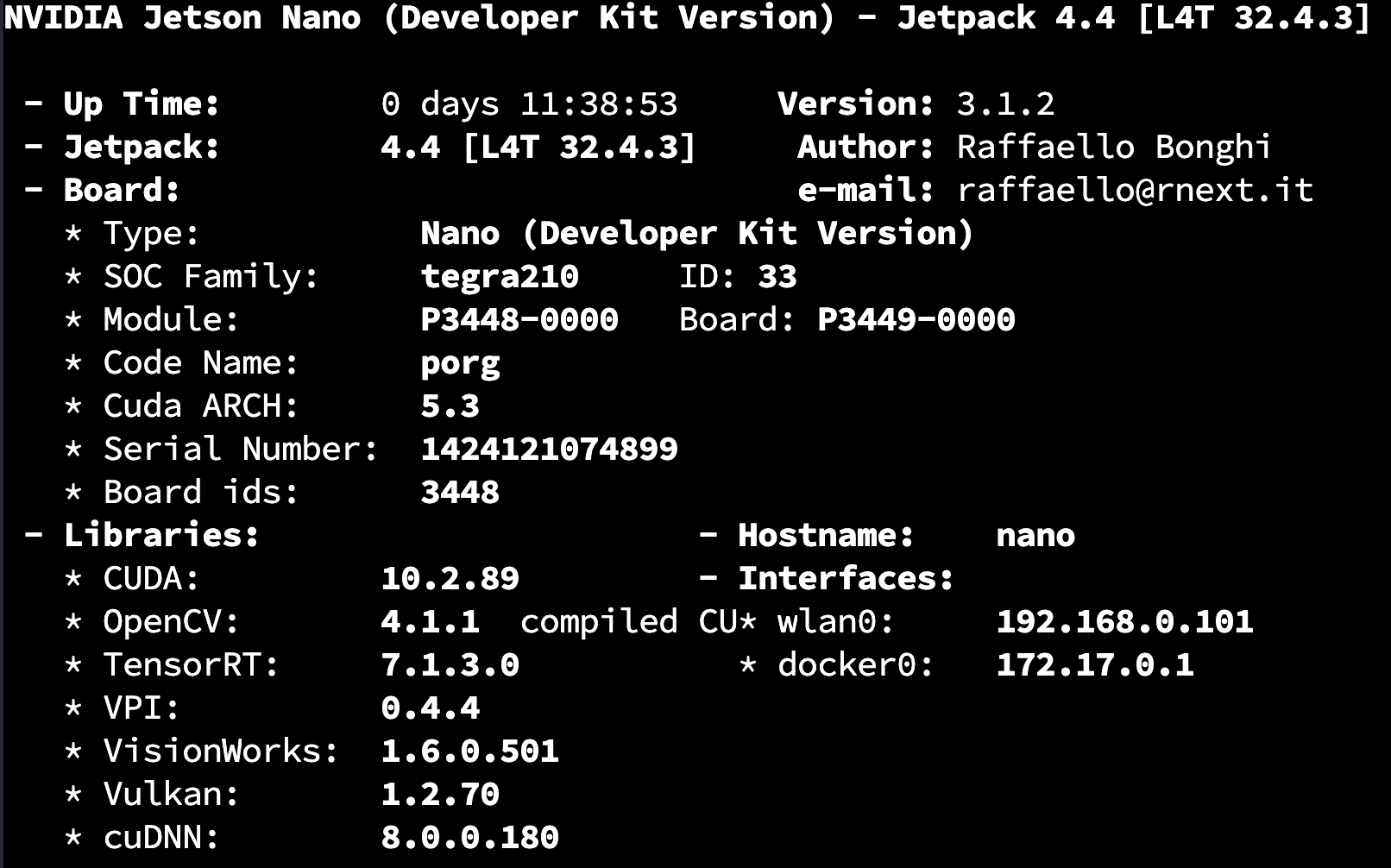

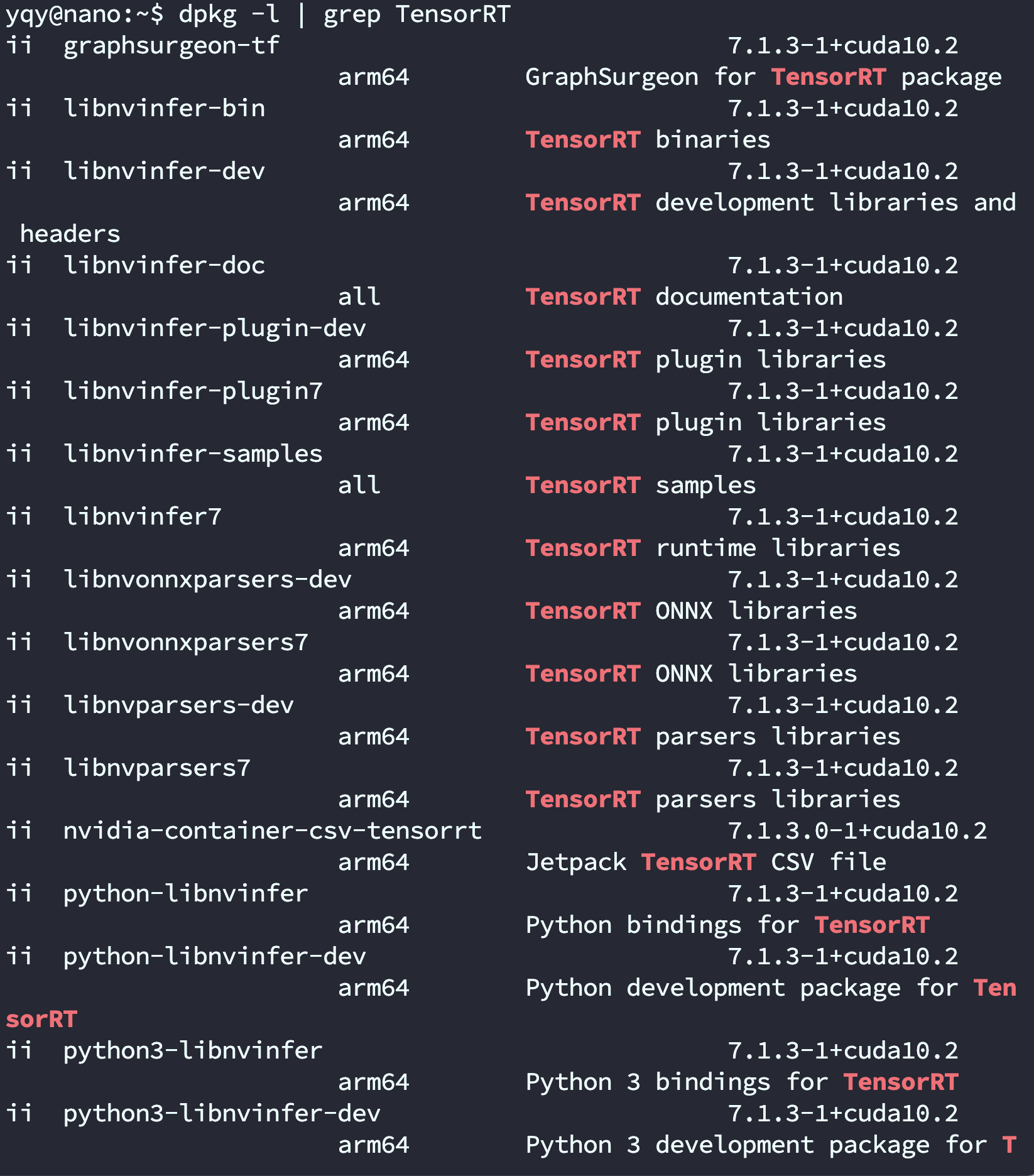

Tensorrt-7.1
Cuda-10.2

电脑上

下载 yolov5

$ git clone -b v5.0 https://github.com/ultralytics/yolov5.git
$ git clone -b yolov5-v5.0 https://github.com/wang-xinyu/tensorrtx.git

官方教程文档：

tensorrtx/yolov5 at yolov5-v5.0 · wang-xinyu/tensorrtx (github.com)

若电脑上无法转 engine 在 jetson 也可以操作

jetson 上

搭建 yolov5 的环境

git clone https://github.com/ultralytics/yolov5.git

python3 -m pip install --upgrade pip

进入 yolov5 的项目里

pip3 install -r requirements

若出现 pillow 相关报错：pillow 需要 pip3 uninstall 重新 pip3 install pillow

克隆 tensorrtx

仓库： https://github.com/wang-xinyu/tensorrtx.git

git clone https://github.com/wang-xinyu/tensorrtx.git

将生成的.wts 放到 tensorrtx/yolov5/下

若是自己训练的模型需修改 tensorrtx/yolov5/yololayer.h

static constexpr int CLASS_NUM = 80

编译代码

cd {tensorrtx}/yolov5/
mkdir build
cd build
cp {ultralytics}/yolov5/yolov5s.wts {tensorrtx}/yolov5/build
cmake ..
make

将生成的.wts 文件转为.engine 文件

sudo ./yolov5 -s yolov5s.wts yolov5s.engine s

将要测试的图片放到 tensorrtx/yolov5/samples/下，测试能否检测目标

sudo ./yolov5 -d ../best.engine ../samples

经过测试转成 tensorrt 后推理速度大幅加快

图片大小：640*640

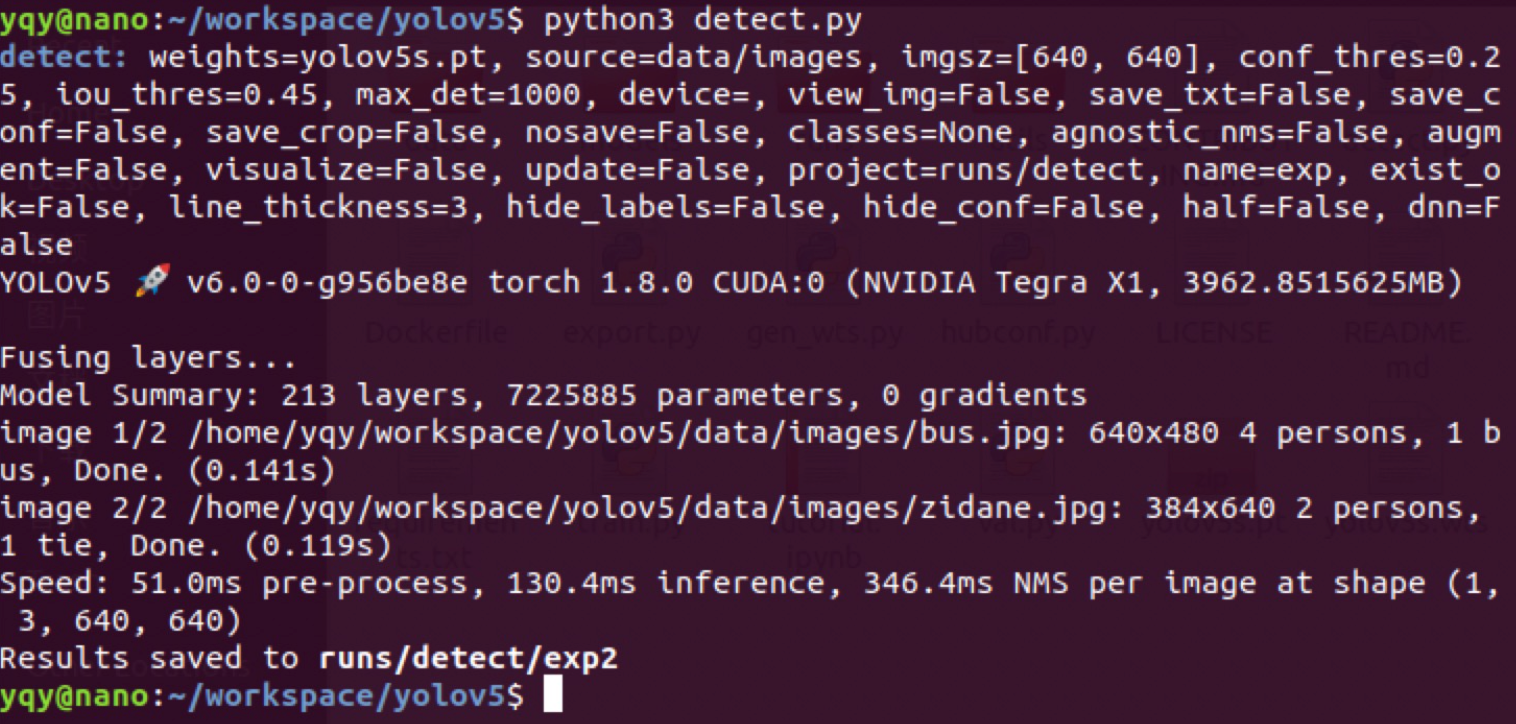

Yolov5.s 推理速度在 130ms 左右

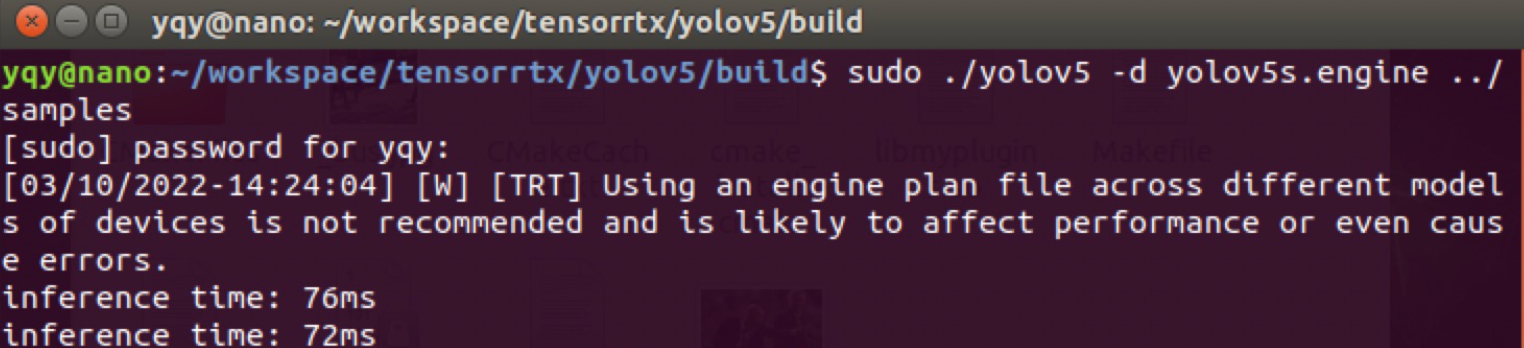

转换成 tensorrt 后的推理速度在 70ms 左右

安装测试 deepstream（5.0）

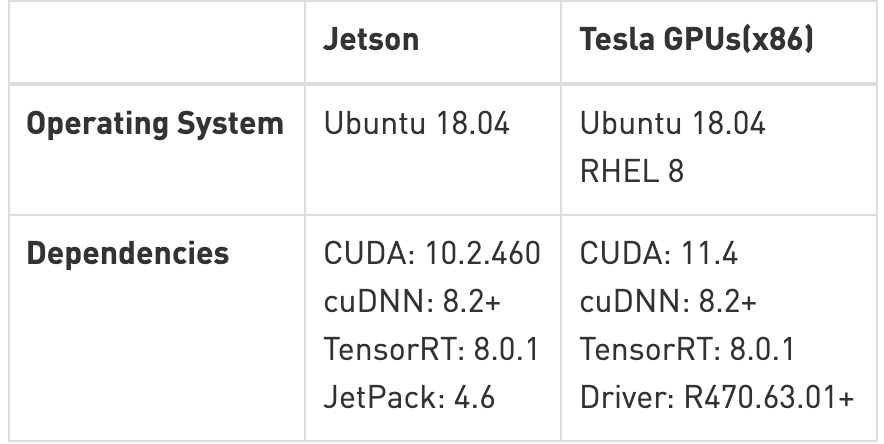

‼️一定要在官方文档中查看 deepstream 和 jetpack 相对应的版本，如 Jetpack 4.6 support Deepstream 6.0

官方文档：NVIDIA Metropolis Documentation

官网下载：DeepStream Getting Started | NVIDIA Developer

老版本：NVIDIA DeepStream SDK on Jetson (Archived) | NVIDIA Developer

精简版笔记

$ sudo apt install \
    libssl1.0.0 \
    libgstreamer1.0-0 \
    gstreamer1.0-tools \
    gstreamer1.0-plugins-good \
    gstreamer1.0-plugins-bad \
    gstreamer1.0-plugins-ugly \
    gstreamer1.0-libav \
    libgstrtspserver-1.0-0 \
    libjansson4=2.11-1
$ sudo apt-get install librdkafka1=0.11.3-1build1
$ tar -xpvf deepstream_sdk_v4.0.2_jetson.tbz2
$ cd deepstream_sdk_v4.0.2_jetson
$ sudo tar -xvpf binaries.tbz2 -C /
$ sudo ./install.sh
$ sudo ldconfig

详细版

安装测试 ds(官方 release 有详细文档)

安装软件包

sudo apt install \
libssl1.0.0 \
libgstreamer1.0-0 \
gstreamer1.0-tools \
gstreamer1.0-plugins-good \
gstreamer1.0-plugins-bad \
gstreamer1.0-plugins-ugly \
gstreamer1.0-libav \
libgstrtspserver-1.0-0 \
libjansson4=2.11-1

下载 sdk 放入 jetson
提取解压 sdk

sudo tar -xvf deepstream_sdk_v5.1.0_jetson.tbz2 -C /
cd /opt/nvidia/deepstream/deepstream-5.1
sudo ./install.sh
sudo ldconfig

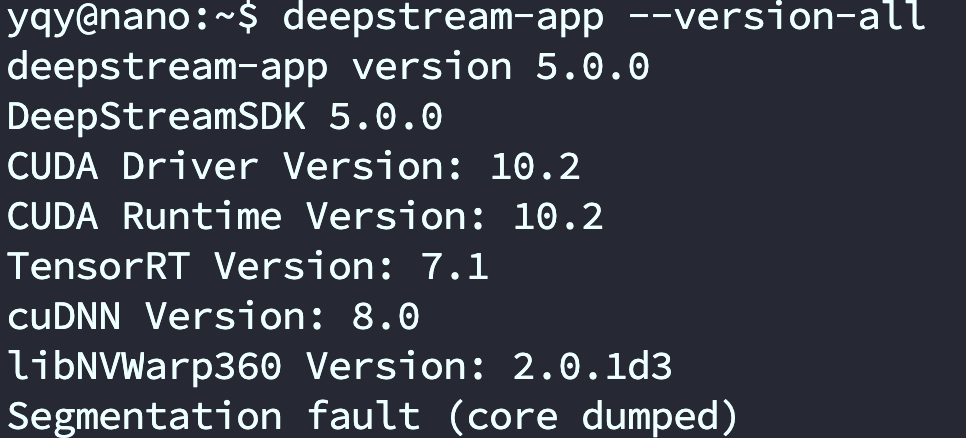

安装完成后测试

cd /opt/nvidia/deepstream/deepstream-5.0/samples/configs/deepstream-app/

deepstream-app -c source8_1080p_dec_infer-resnet_tracker_tiled_display_fp16_nano.txt

安装 ds-6.0

Quickstart Guide — DeepStream 6.0 Release documentation (nvidia.com)

rscgg37248/DeepStream6.0_Yolov5-6.0: 基于 DeepStream6.0 和 yolov5-6.0 的目标检测 (github.com)

Install

$ sudo apt install \
libssl1.0.0 \
libgstreamer1.0-0 \
gstreamer1.0-tools \
gstreamer1.0-plugins-good \
gstreamer1.0-plugins-bad \
gstreamer1.0-plugins-ugly \
gstreamer1.0-libav \
libgstrtspserver-1.0-0 \
libjansson4=2.11-1

$ sudo tar -xvf deepstream_sdk_v6.0.0_jetson.tbz2 -C /
$ cd /opt/nvidia/deepstream/deepstream-6.0
$ sudo ./install.sh
$ sudo ldconfig

Test

$ cd /opt/nvidia/deepstream/deepstream-6.0/samples/configs/deepstream-app/

$ deepstream-app -c source8_1080p_dec_infer-resnet_tracker_tiled_display_fp16_nano.txt

yolov5 检测

‼️Jetson nano 的系统版本是 4.5.1 TensorRT 版本 7.x yolov5 版本 5.0 pillow 需要 pip3 uninstall 重新 pip3 install pillow

安装完 ds 后在/opt/nvidia/deepstream/deepstream-5.0/sources/objectDetector_Yolo 会有一个部署 yolo 的官方实例代码，但只有 yolov3 的。

github 上有已经改好 yolov5 的项目：DanaHan/Yolov5-in-Deepstream-5.0: Describe how to use yolov5 in Deepstream 5.0 (github.com)

我使用的 tensorrt7 的版本在里面有适配的分支：Abandon-ht/Yolov5-in-Deepstream-5.0 at tensorrt7 (github.com)

克隆项目

git clone https://github.com/DanaHan/Yolov5-in-Deepstream-5.0.git

测试

cd Yolov5-in-Deepstream-5.0/Deepstream 5.0

#复制coco数据集的labels
cp ~/darknet/data/coco.names ./labels.txt

#复制之前生成的引擎文件到当前目录
cp ~/tensorrtx/yolov5/build/yolov5s.engine ./

cd nvdsinfer_custom_impl_Yolo

# 生成libnvdsinfer_custom_impl_Yolo.so文件
make -j

#返回到DeepStream5.0/下
cd ..

#测试
LD_PRELOAD=./libmyplugins.so deepstream-app -c deepstream_app_config_yoloV5.txt

在 ds 中调用 csi or usb 摄像头

参考资料如何在 deepstream-app 里调用 USB 与 CSI 摄像头-电子发烧友网 (elecfans.com)

#安装v4l-utils
apt-get install v4l-utils

#查看摄像头信息
v4l2-ctl --list-devices

查看摄像头可用分辨率

v4l2-ctl --list-formats-ext --device=0
v4l2-ctl --list-formats-ext --device=1

修改 deepstream_app_config_yoloV5.txt 的 source

我个人使用的是罗技的 c920 摄像头（usb）

参数如下

[source0]
enable=1
#Type - 1=CameraV4L2 2=URI 3=MultiURI
type=1
camera-width=1280
camera-height=720
camera-fps-n=30
camera-v4l2-dev-node=0
#uri=file://../../samples/streams/sample_1080p_h264.mp4
num-sources=1
gpu-id=0
# (0): memtype_device   - Memory type Device
# (1): memtype_pinned   - Memory type Host Pinned
# (2): memtype_unified  - Memory type Unified
cudadec-memtype=0

插件配置

参考 deepstream_sdk_v4.0.2_jetson/samples/configs/deepstream-app/下的配置文件:

source30_1080p_resnet_dec_infer_tiled_display_int8.txt：演示具有主要推理功能的 30 个流解码。（仅适用于 dGPU 和 Jetson AGX Xavier 平台。）
source4_1080p_resnet_dec_infer_tiled_display_int8.txt：演示具有主要推理，对象跟踪和三个不同辅助分类器的四个流解码。（仅适用于 dGPU 和 Jetson AGX Xavier 平台。）
source4_1080p_resnet_dec_infer_tracker_sgie_tiled_display_int8_gpu1.txt：在 GPU 1 上针对主要推理，对象跟踪和三个不同的二级分类器演示四个流解码（对于具有多个 GPU 卡的系统）。仅适用于 dGPU 平台。
config_infer_primary.txt：将 nvinfer 元素配置为主要检测器。
config_infer_secondary_carcolor.txt， config_infer_secondary_carmake.txt， config_infer_secondary_vehicletypes.txt：将 nvinfer 元素配置为辅助分类器。
iou_config.txt：配置一个低级的 IOU（联合路口）跟踪器。
source1_usb_dec_infer_resnet_int8.txt：演示一台 USB 摄像机作为输入。
source1_csi_dec_infer_resnet_int8.txt：演示一个 CSI 摄像机作为输入；仅限于 Jetson。
source2_csi_usb_dec_infer_resnet_int8.txt：演示一台 CSI 摄像机和一台 USB 摄像机作为输入；仅限于 Jetson。
source6_csi_dec_infer_resnet_int8.txt：演示六个 CSI 摄像机作为输入；仅限于 Jetson。
source8_1080p_dec_infer-resnet_tracker_tiled_display_fp16_nano.txt：演示 8 解码 + 推断 + 跟踪器；仅适用于 Jetson Nano。
source8_1080p_dec_infer-resnet_tracker_tiled_display_fp16_tx1.txt：演示 8 解码 + 推断 + 跟踪器；仅适用于 Jetson TX1。
source12_1080p_dec_infer-resnet_tracker_tiled_display_fp16_tx2.txt：演示 12 个解码 + 推断 + 跟踪器；仅适用于 Jetson TX2。

视频输入

默认测试视频

[application]
enable-perf-measurement=1
perf-measurement-interval-sec=5
#gie-kitti-output-dir=streamscl

[tiled-display]
enable=0
rows=1
columns=1
width=1280
height=720
gpu-id=0
#(0): nvbuf-mem-default - Default memory allocated, specific to particular platform
#(1): nvbuf-mem-cuda-pinned - Allocate Pinned/Host cuda memory, applicable for Tesla
#(2): nvbuf-mem-cuda-device - Allocate Device cuda memory, applicable for Tesla
#(3): nvbuf-mem-cuda-unified - Allocate Unified cuda memory, applicable for Tesla
#(4): nvbuf-mem-surface-array - Allocate Surface Array memory, applicable for Jetson
nvbuf-memory-type=0

[source0]
enable=1
#Type - 1=CameraV4L2 2=URI 3=MultiURI
type=2
uri=file:/opt/nvidia/deepstream/deepstream-6.0/samples/streams/sample_1080p_h264.mp4
#uri=file:/home/nvidia/Documents/5-Materials/Videos/0825.avi
num-sources=1
gpu-id=0
# (0): memtype_device   - Memory type Device
# (1): memtype_pinned   - Memory type Host Pinned
# (2): memtype_unified  - Memory type Unified
cudadec-memtype=0


[sink0]
enable=1
#Type - 1=FakeSink 2=EglSink 3=File
type=2
sync=0
source-id=0
gpu-id=0
nvbuf-memory-type=0
#1=mp4 2=mkv
container=1
#1=h264 2=h265
codec=1
output-file=yolov4.mp4

[osd]
enable=1
gpu-id=0
border-width=1
text-size=12
text-color=1;1;1;1;
text-bg-color=0.3;0.3;0.3;1
font=Serif
show-clock=0
clock-x-offset=800
clock-y-offset=820
clock-text-size=12
clock-color=1;0;0;0
nvbuf-memory-type=0

[streammux]
gpu-id=0
##Boolean property to inform muxer that sources are live
live-source=0
batch-size=4
##time out in usec, to wait after the first buffer is available
##to push the batch even if the complete batch is not formed
batched-push-timeout=40000
## Set muxer output width and height
width=1280
height=720
##Enable to maintain aspect ratio wrt source, and allow black borders, works
##along with width, height properties
enable-padding=0
nvbuf-memory-type=0

# config-file property is mandatory for any gie section.
# Other properties are optional and if set will override the properties set in
# the infer config file.
[primary-gie]
enable=1
gpu-id=0
model-engine-file=yolov5s.engine
labelfile-path=labels.txt
#batch-size=1
#Required by the app for OSD, not a plugin property
bbox-border-color0=1;0;0;1
bbox-border-color1=0;1;1;1
bbox-border-color2=0;0;1;1
bbox-border-color3=0;1;0;1
interval=0
gie-unique-id=1
nvbuf-memory-type=0
config-file=config_infer_primary_yoloV5.txt

[tracker]
enable=0
tracker-width=512
tracker-height=320
ll-lib-file=/opt/nvidia/deepstream/deepstream-5.0/lib/libnvds_mot_klt.so

[tests]
file-loop=0

camera

USB 摄像头

[source0]
enable=1
#Type - 1=CameraV4L2 2=URI 3=MultiURI
type=1
camera-width=1280
camera-height=720
camera-fps-n=30
camera-fps-d=1
camera-v4l2-dev-node=0

CSI 摄像头

[source0]
enable=1
#Type - 1=CameraV4L2 2=URI 3=MultiURI 4=RTSP 5=CSI
type=5
camera-width=1280
camera-height=720
camera-fps-n=30
camera-fps-d=1
camera-csi-sensor-id=0

videofile

4 个相同文件，用 MultiURI

[source0]
enable=1
#Type - 1=CameraV4L2 2=URI 3=MultiURI 4=RTSP
type=3
uri=file://../../streams/sample_1080p_h264.mp4
num-sources=4
#drop-frame-interval=2
gpu-id=0
# (0): memtype_device   - Memory type Device
# (1): memtype_pinned   - Memory type Host Pinned
# (2): memtype_unified  - Memory type Unified
cudadec-memtype=0

media stream

[source0]
enable=1
#Type - 1=CameraV4L2 2=URI 3=MultiURI 4=RTSP
type=4
uri=rtsp://admin:admin123@192.168.1.106:554/cam/realmonitor?channel=1&subtype=0
num-sources=1
#drop-frame-interval=2
gpu-id=0
# (0): memtype_device   - Memory type Device
# (1): memtype_pinned   - Memory type Host Pinned
# (2): memtype_unified  - Memory type Unified
cudadec-memtype=0

多路 USB

[source0]
enable=1
#Type - 1=CameraV4L2 2=URI 3=MultiURI 4=RTSP
type=3
uri=file://../../streams/sample_1080p_h264.mp4
num-sources=4
#drop-frame-interval=2
gpu-id=0
# (0): memtype_device   - Memory type Device
# (1): memtype_pinned   - Memory type Host Pinned
# (2): memtype_unified  - Memory type Unified
cudadec-memtype=0

多路 CSI

[source0]
enable=1
#Type - 1=CameraV4L2 2=URI 3=MultiURI 4=RTSP 5=CSI
type=5
camera-csi-sensor-id=0
camera-width=1280
camera-height=720
camera-fps-n=30
camera-fps-d=1

[source1]
enable=1
#Type - 1=CameraV4L2 2=URI 3=MultiURI 4=RTSP 5=CSI
type=5
camera-csi-sensor-id=1
camera-width=1280
camera-height=720
camera-fps-n=30
camera-fps-d=1

[source2]
enable=1
#Type - 1=CameraV4L2 2=URI 3=MultiURI 4=RTSP 5=CSI
type=5
camera-csi-sensor-id=2
camera-width=1280
camera-height=720
camera-fps-n=30
camera-fps-d=1

[source3]
enable=1
#Type - 1=CameraV4L2 2=URI 3=MultiURI 4=RTSP 5=CSI
type=5
camera-csi-sensor-id=3
camera-width=1280
camera-height=720
camera-fps-n=30
camera-fps-d=1

视频处理

物体检测

# config-file property is mandatory for any gie section.
# Other properties are optional and if set will override the properties set in
# the infer config file.
[primary-gie]
enable=1
model-engine-file=../../models/Primary_Detector/resnet10.caffemodel_b30_int8.engine
#Required to display the PGIE labels, should be added even when using config-file
#property
batch-size=4
#Required by the app for OSD, not a plugin property
bbox-border-color0=1;0;0;1
bbox-border-color1=0;1;1;1
bbox-border-color2=0;0;1;1
bbox-border-color3=0;1;0;1
interval=0
#Required by the app for SGIE, when used along with config-file property
gie-unique-id=1
config-file=config_infer_primary.txt

物体跟踪

[tracker]
enable=1
tracker-width=640
tracker-height=368
#tracker-width=480
#tracker-height=272

#ll-lib-file=/opt/nvidia/deepstream/deepstream-4.0/lib/libnvds_mot_iou.so
#ll-lib-file=/opt/nvidia/deepstream/deepstream-4.0/lib/libnvds_nvdcf.so
ll-lib-file=/opt/nvidia/deepstream/deepstream-4.0/lib/libnvds_mot_klt.so
#ll-config-file required for DCF/IOU only
#ll-config-file=tracker_config.yml
#ll-config-file=iou_config.txt
gpu-id=0
#enable-batch-process applicable to DCF only
enable-batch-process=1

检测后的具体分类

[secondary-gie0]
enable=1
model-engine-file=../../models/Secondary_VehicleTypes/resnet18.caffemodel_b16_int8.engine
gpu-id=0
batch-size=16
gie-unique-id=4
operate-on-gie-id=1
operate-on-class-ids=0;
config-file=config_infer_secondary_vehicletypes.txt

[secondary-gie1]
enable=1
model-engine-file=../../models/Secondary_CarColor/resnet18.caffemodel_b16_int8.engine
batch-size=16
gpu-id=0
gie-unique-id=5
operate-on-gie-id=1
operate-on-class-ids=0;
config-file=config_infer_secondary_carcolor.txt

[secondary-gie2]
enable=1
model-engine-file=../../models/Secondary_CarMake/resnet18.caffemodel_b16_int8.engine
batch-size=16
gpu-id=0
gie-unique-id=6
operate-on-gie-id=1
operate-on-class-ids=0;
config-file=config_infer_secondary_carmake.txt

视频输出

多路合并

单路

[tiled-display]
enable=1
rows=1
columns=1
width=1280
height=720

多路

[tiled-display]
enable=1
rows=4
columns=2
width=1280
height=720
gpu-id=0
#(0): nvbuf-mem-default - Default memory allocated, specific to particular platform
#(1): nvbuf-mem-cuda-pinned - Allocate Pinned/Host cuda memory, applicable for Tesla
#(2): nvbuf-mem-cuda-device - Allocate Device cuda memory, applicable for Tesla
#(3): nvbuf-mem-cuda-unified - Allocate Unified cuda memory, applicable for Tesla
#(4): nvbuf-mem-surface-array - Allocate Surface Array memory, applicable for Jetson
nvbuf-memory-type=0

screen

[sink0]
enable=1
#Type - 1=FakeSink 2=EglSink 3=File 4=RTSPStreaming 5=Overlay
type=5
sync=0
display-id=0
offset-x=0
offset-y=0
width=0
height=0
overlay-id=1
source-id=0

videofile

[sink1]
enable=1
type=3
#1=mp4 2=mkv
container=1
#1=h264 2=h265 3=mpeg4
codec=1
sync=0
bitrate=2000000
output-file=out.mp4
source-id=0

media stream

[sink2]
enable=1
#Type - 1=FakeSink 2=EglSink 3=File 4=RTSPStreaming 5=Overlay
type=4
#1=h264 2=h265
codec=1
sync=0
bitrate=4000000
# set below properties in case of RTSPStreaming
rtsp-port=8554
udp-port=5400

vlc 打开网络流

osd

[osd]
enable=1
border-width=2
text-size=15
text-color=1;1;1;1;
text-bg-color=0.3;0.3;0.3;1
font=Serif
show-clock=0
clock-x-offset=800
clock-y-offset=820
clock-text-size=12
clock-color=1;0;0;0

streammux

[streammux]
##Boolean property to inform muxer that sources are live
live-source=1
## 根据路数进行设置
batch-size=4
##time out in usec, to wait after the first buffer is available
##to push the batch even if the complete batch is not formed
batched-push-timeout=40000
## Set muxer output width and height
width=1280
height=720

Sample 例程

DeepStream Sample App /sources/apps/sample_apps/deepstream-app

说明:端到端示例演示了 4 级联神经网络(1 个一级检测器和 3 个二级分类器)的多相机流，并显示平铺输出。

DeepStream Test 1 /sources/apps/sample_apps/deepstream-t
DeepStream Test 2 /sources/apps/sample_apps/deepstream-test2

说明:简单的应用程序，建立在 test1 之上，显示额外的属性，如跟踪和二级分类属性。

DeepStream Test 3 /sources/apps/sample_apps/deepstream-test3

说明:简单的应用程序，建立在 test1 的基础上，显示多个输入源和批处理使用 nvstreammuxer。

DeepStream Test 4 /sources/apps/sample_apps/deepstream-test4

说明:这是在 Test1 示例的基础上构建的，演示了“nvmsgconv”和“nvmsgbroker”插件在物联网连接管道中的使用。对于 test4，用户必须修改 kafka 代理连接字符串才能成功连接。需要安装分析服务器 docker 之前运行 test4。DeepStream 分析文档有关于设置分析服务器的更多信息。

FasterRCNN Object Detector /sources/objectDetector_FasterRCNN

说明:FasterRCNN 物体探测器实例。

SSD Object Detector /sources/objectDetector_SSD

说明:SSD 目标探测器实例。

部署自己的模型

Jetson nano 上部署自己的 Yolov5 模型（TensorRT 加速）_ailaier 的专栏-CSDN 博客_jetson nano yolov5

2. yolov5+tensorrt+deepstream

介绍

环境

电脑上

jetson 上

搭建 yolov5 的环境

克隆 tensorrtx

安装测试 deepstream（5.0）

安装 ds-6.0

yolov5 检测

在 ds 中调用 csi or usb 摄像头

插件配置

视频输入

camera

videofile

media stream

多路 USB

多路 CSI

视频处理

物体检测

物体跟踪

检测后的具体分类

视频输出

多路合并

screen

videofile

media stream

osd

streammux

Sample 例程

部署自己的模型

References

部署

deepstream

相关帖子

1.jetson nano 环境配置

思源笔记 v3.5.0 发布，提示块

[css] 思源笔记个人 CSS 样式分享 （第三版）

关于链滴社区积分机制的疑问

申请退款, 找不到退款链接

文档发布到链滴问题

内核 + 浏览器访问时，需要等待索引结束后才能对文档进行操作

欢迎来到这里！

[css] 思源笔记个人 CSS 样式分享（第三版）
