centos7 升级 openssh 到最新版本（openssh-8.0p1）
0. 注意事项
整个过程不需要卸载原先的 openssl 包和 openssh 的 rpm 包、不影响我们的操作。
本文的环境都是系统自带的 openssh，没有经历过手动编译安装方式。如果之前有手动编译安装过 openssh，请参照本文自行测试是否能成功。
1. 原系统信息（未升级前）
1.1 系统版本
# cat /etc/redhat-release
CentOS Linux release 7.7.1908 (Core)
1.2 原 openssl 版本
# openssl version
OpenSSL 1.0.2k-fips 26 Jan 2017
1.3 原 openssh 版本
# ssh -V
OpenSSH_7.4p1, OpenSSL 1.0.2k-fips 26 Jan 2017
2. 配置更新环境
2.1 yum 更新 openssh
yum update openssh 升级下到目前 yum 仓库默认的 openssh7.4p1 版本。（这里准备统一 openssh 版本为 7.4p1 之后再统一编译安装升级到 openssh8.0p1）
# openssl version
OpenSSL 1.0.2k-fips 26 Jan 2017
# ssh -V
OpenSSH_7.4p1, OpenSSL 1.0.2k-fips 26 Jan 2017
2.2 安装 telnet-server 以及 xinetd
因为我们现在是远程更新 openssh 所以需要先使用另一种连接方式连接到服务器进行相关操作。
yum install xinetd telnet-server -y
已加载插件：fastestmirror, langpacks
Loading mirror speeds from cached hostfile
* base: mirrors.tuna.tsinghua.edu.cn
* extras: mirrors.tuna.tsinghua.edu.cn
* nux-dextop: mirror.li.nux.ro
* updates: mirrors.tuna.tsinghua.edu.cn
2.3 配置 telnet
现在很多 centos7 版本安装 telnet-server 以及 xinetd 之后没有一个叫 telnet 的配置文件了。
如果下面 telnet 文件不存在的话，可以跳过这部分的更改（我所测试的时候并没有此项文件）。
# ll /etc/xinetd.d/telnet
ls: 无法访问/etc/xinetd.d/telnet: 没有那个文件或目录
如果下面文件存在，请更改配置 telnet 可以 root 登录，把 disable = no 改成 disable = yes
# cat /etc/xinetd.d/telnet
# default: on
# description: The telnet server serves telnet sessions; it uses \
# unencrypted username/password pairs for authentication.
service telnet
{
disable = no
flags = REUSE
socket_type = stream
wait = no
user = root
server = /usr/sbin/in.telnetd
log_on_failure += USERID
}
[root@rhel yum.repos.d]# vim /etc/xinetd.d/telnet
[root@rhel yum.repos.d]# cat /etc/xinetd.d/telnet
# default: on
# description: The telnet server serves telnet sessions; it uses \
# unencrypted username/password pairs for authentication.
service telnet
{
disable = yes
flags = REUSE
socket_type = stream
wait = no
user = root
server = /usr/sbin/in.telnetd
log_on_failure += USERID
}
2.4 配置 telnet 登录的终端类型
在 /etc/securetty 文件末尾增加一些 pts 终端，如下
pts/0
pts/1
pts/2
pts/3
2.5 启动 telnet 服务，并设置开机自动启动
# systemctl start telnet.socket
# systemctl enable telnet.socket
Created symlink from /etc/systemd/system/sockets.target.wants/telnet.socket to /usr/lib/systemd/system/telnet.socket.
# systemctl restart telnet.socket
# systemctl status telnet.socket
● telnet.socket - Telnet Server Activation Socket
Loaded: loaded (/usr/lib/systemd/system/telnet.socket; disabled; vendor preset: disabled)
Active: active (listening) since 四 2019-09-19 19:33:58 CST; 14s ago
Docs: man:telnetd(8)
Listen: [::]:23 (Stream)
Accepted: 0; Connected: 0
9月 19 19:33:58 sz-lab-centos7-gitlab-nginx-proxy-192.168.178.46 systemd[1]: Closed Telnet Server Activation Socket.
9月 19 19:33:58 sz-lab-centos7-gitlab-nginx-proxy-192.168.178.46 systemd[1]: Stopping Telnet Server Activation Socket.
9月 19 19:33:58 sz-lab-centos7-gitlab-nginx-proxy-192.168.178.46 systemd[1]: Listening on Telnet Server Activation Socket.
2.6 查看端口监听状态、确认 telnet 工作状态
# netstat -lntp|grep 23
tcp 0 0 127.0.0.1:9236 0.0.0.0:* LISTEN 4858/gitaly
tcp 0 0 192.168.122.1:53 0.0.0.0:* LISTEN 2334/dnsmasq
tcp 0 0 127.0.0.1:631 0.0.0.0:* LISTEN 29723/cupsd
tcp6 0 0 :::23 :::* LISTEN 1/systemd
tcp6 0 0 ::1:631 :::* LISTEN 29723/cupsd
2.7 添加防火墙规则
# firewall-cmd --list-all
public (active)
target: default
icmp-block-inversion: no
interfaces: enp0s31f6
sources:
services: dhcpv6-client ftp ssh zabbix-agent
ports:
protocols:
masquerade: no
forward-ports:
source-ports:
icmp-blocks:
rich rules:
# firewall-cmd --add-service=telnet --permanent
success
# firewall-cmd --reload
success
# firewall-cmd --list-all
public (active)
target: default
icmp-block-inversion: no
interfaces: enp0s31f6
sources:
services:dhcpv6-client ftp ssh telnet zabbix-agent
ports:
protocols:
masquerade: no
forward-ports:
source-ports:
icmp-blocks:
rich rules:
2.8 telnet 连接目标服务器
# telnet 192.168.1.2
# 输入用户名密码
# 回车登录
2.9 安装依赖包
# yum install -y gcc gcc-c++ glibc make autoconf openssl openssl-devel pcre-devel pam-devel
Loading mirror speeds from cached hostfile
* base: mirrors.tuna.tsinghua.edu.cn
* extras: mirrors.tuna.tsinghua.edu.cn
* nux-dextop: mirror.li.nux.ro
* updates: mirrors.tuna.tsinghua.edu.cn
2.10 安装 pam 和 zlib 等
# yum install -y pam* zlib*
已加载插件：fastestmirror, langpacks
Loading mirror speeds from cached hostfile
* base: mirrors.tuna.tsinghua.edu.cn
* extras: mirrors.tuna.tsinghua.edu.cn
* nux-dextop: mirror.li.nux.ro
* updates: mirrors.tuna.tsinghua.edu.cn
3. 下载所需文件
选择一个你所喜欢的文件夹保存下面你所下载的文件。

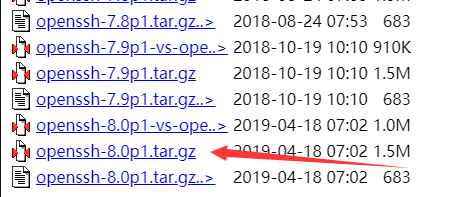

3.1 下载最新版本的 openssh
https://openbsd.hk/pub/OpenBSD/OpenSSH/portable/

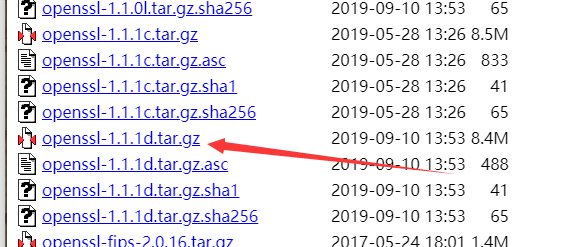

3.2 下载最新版本的 openssl
https://ftp.openssl.org/source/
# ls
openssh-8.0p1.tar.gz openssl-1.1.1d.tar.gz
4. 开始安装
4.1 安装 openssl
4.1.1 解压缩
# tar xfz openssh-8.0p1.tar.gz
# ls
openssh-8.0p1 openssh-8.0p1.tar.gz openssl-1.1.1d.tar.gz
# tar xfz openssl-1.1.1d.tar.gz
# ls
openssh-8.0p1 openssh-8.0p1.tar.gz openssl-1.1.1d openssl-1.1.1d.tar.gz
#
4.1.2 备份原文件
# ll /usr/bin/openssl
-rwxr-xr-x 1 root root 555288 8月 9 09:38 /usr/bin/openssl
# mv /usr/bin/openssl /usr/bin/openssl_bak
# mv /usr/include/openssl /usr/include/openssl_bak
# ll /usr/include/openssl_bak/
总用量 1864
-rw-r--r-- 1 root root 6146 8月 9 09:38 aes.h
-rw-r--r-- 1 root root 63204 8月 9 09:38 asn1.h
-rw-r--r-- 1 root root 24435 8月 9 09:38 asn1_mac.h
-rw-r--r-- 1 root root 34475 8月 9 09:38 asn1t.h
-rw-r--r-- 1 root root 38742 8月 9 09:38 bio.h
...
4.1.3 开始编译安装
# cd openssl-1.1.1d/
# ./config shared && make && make install
4.1.4 后续配置
查看编译安装后的 openssl 的目录结构、默认安装到 /usr/local 目录下
# ls /usr/local/
bin/ etc/ games/ include/ lib/ lib64/ libexec/ sbin/ ServerStatus/ share/ src/ ssl/
# tree -L 2
.
├── bin
│ ├── c_rehash
│ └── openssl
├── include
│ └── openssl
│ ├── aes.h
│ ├── asn1err.h
│ ....
├── lib64
│ ├── engines-1.1
│ ├── libcrypto.a
│ ├── libcrypto.so -> libcrypto.so.1.1
│ ├── libcrypto.so.1.1
│ ├── libssl.a
│ ├── libssl.so -> libssl.so.1.1
│ ├── libssl.so.1.1
│ └── pkgconfig
└── ssl
├── certs
├── ct_log_list.cnf
├── ct_log_list.cnf.dist
├── misc
├── openssl.cnf
├── openssl.cnf.dist
└── private
4.1.4 软连接 openssl 目录
# ln -s /usr/local/bin/openssl /usr/bin/openssl
# ln -s /usr/local/include/openssl/ /usr/include/openssl
# ll /usr/bin/openssl
lrwxrwxrwx 1 root root 22 9月 19 20:14 /usr/bin/openssl -> /usr/local/bin/openssl
# ll /usr/include/openssl -ld
lrwxrwxrwx 1 root root 27 9月 19 20:14 /usr/include/openssl -> /usr/local/include/openssl/
4.1.5 加载新配置
echo "/usr/local/lib64" >> /etc/ld.so.conf
/sbin/ldconfig
4.1.6 查看确认版本。没问题
# openssl version
OpenSSL 1.1.1d 10 Sep 2019
4.2 安装 openssh
4.2.1 解压并设置权限
# tar xfz openssh-8.0p1.tar.gz
# cd openssh-8.0p1
# 可能文件默认显示uid和gid数组都是1000，这里重新授权下。不授权可能也不影响安装（请自行测试）
# chown -R root.root /data/tools/openssh-8.0p1
4.2.2 备份原 ssh 的配置文件和目录
# mv /etc/ssh/* your_backup_dir
4.2.3 配置、编译、安装
- 查看编译参数、根据需要选择
# ./configure -h
`configure' configures OpenSSH Portable to adapt to many kinds of systems.
Usage: ./configure [OPTION]... [VAR=VALUE]...
To assign environment variables (e.g., CC, CFLAGS...), specify them as
VAR=VALUE. See below for descriptions of some of the useful variables.
Defaults for the options are specified in brackets.
Configuration:
-h, --help display this help and exit
--help=short display options specific to this package
--help=recursive display the short help of all the included packages
-V, --version display version information and exit
-q, --quiet, --silent do not print `checking ...' messages
--cache-file=FILE cache test results in FILE [disabled]
-C, --config-cache alias for `--cache-file=config.cache'
-n, --no-create do not create output files
--srcdir=DIR find the sources in DIR [configure dir or `..']
Installation directories:
--prefix=PREFIX install architecture-independent files in PREFIX
[/usr/local]
--exec-prefix=EPREFIX install architecture-dependent files in EPREFIX
[PREFIX]
By default, `make install' will install all the files in
`/usr/local/bin', `/usr/local/lib' etc. You can specify
an installation prefix other than `/usr/local' using `--prefix',
for instance `--prefix=$HOME'.
For better control, use the options below.
Fine tuning of the installation directories:
--bindir=DIR user executables [EPREFIX/bin]
--sbindir=DIR system admin executables [EPREFIX/sbin]
--libexecdir=DIR program executables [EPREFIX/libexec]
--sysconfdir=DIR read-only single-machine data [PREFIX/etc]
--sharedstatedir=DIR modifiable architecture-independent data [PREFIX/com]
--localstatedir=DIR modifiable single-machine data [PREFIX/var]
--libdir=DIR object code libraries [EPREFIX/lib]
--includedir=DIR C header files [PREFIX/include]
--oldincludedir=DIR C header files for non-gcc [/usr/include]
--datarootdir=DIR read-only arch.-independent data root [PREFIX/share]
--datadir=DIR read-only architecture-independent data [DATAROOTDIR]
--infodir=DIR info documentation [DATAROOTDIR/info]
--localedir=DIR locale-dependent data [DATAROOTDIR/locale]
--mandir=DIR man documentation [DATAROOTDIR/man]
--docdir=DIR documentation root [DATAROOTDIR/doc/openssh]
--htmldir=DIR html documentation [DOCDIR]
--dvidir=DIR dvi documentation [DOCDIR]
--pdfdir=DIR pdf documentation [DOCDIR]
--psdir=DIR ps documentation [DOCDIR]
System types:
--build=BUILD configure for building on BUILD [guessed]
--host=HOST cross-compile to build programs to run on HOST [BUILD]
Optional Features:
--disable-option-checking ignore unrecognized --enable/--with options
--disable-FEATURE do not include FEATURE (same as --enable-FEATURE=no)
--enable-FEATURE[=ARG] include FEATURE [ARG=yes]
--disable-largefile omit support for large files
--disable-pkcs11 disable PKCS#11 support code [no]
--disable-strip Disable calling strip(1) on install
--disable-etc-default-login Disable using PATH from /etc/default/login no
--disable-lastlog disable use of lastlog even if detected no
--disable-utmp disable use of utmp even if detected no
--disable-utmpx disable use of utmpx even if detected no
--disable-wtmp disable use of wtmp even if detected no
--disable-wtmpx disable use of wtmpx even if detected no
--disable-libutil disable use of libutil (login() etc.) no
--disable-pututline disable use of pututline() etc. (uwtmp) no
--disable-pututxline disable use of pututxline() etc. (uwtmpx) no
Optional Packages:
--with-PACKAGE[=ARG] use PACKAGE [ARG=yes]
--without-PACKAGE do not use PACKAGE (same as --with-PACKAGE=no)
--without-openssl Disable use of OpenSSL; use only limited internal crypto **EXPERIMENTAL**
--without-stackprotect Don't use compiler's stack protection
--without-hardening Don't use toolchain hardening flags
--without-rpath Disable auto-added -R linker paths
--with-cflags Specify additional flags to pass to compiler
--with-cflags-after Specify additional flags to pass to compiler after configure
--with-cppflags Specify additional flags to pass to preprocessor
--with-ldflags Specify additional flags to pass to linker
--with-ldflags-after Specify additional flags to pass to linker after configure
--with-libs Specify additional libraries to link with
--with-Werror Build main code with -Werror
--with-solaris-contracts Enable Solaris process contracts (experimental)
--with-solaris-projects Enable Solaris projects (experimental)
--with-solaris-privs Enable Solaris/Illumos privileges (experimental)
--with-osfsia Enable Digital Unix SIA
--with-zlib=PATH Use zlib in PATH
--without-zlib-version-check Disable zlib version check
--with-ldns[=PATH] Use ldns for DNSSEC support (optionally in PATH)
--with-libedit[=PATH] Enable libedit support for sftp
--with-audit=module Enable audit support (modules=debug,bsm,linux)
--with-pie Build Position Independent Executables if possible
--with-ssl-dir=PATH Specify path to OpenSSL installation
--without-openssl-header-check Disable OpenSSL version consistency check
--with-ssl-engine Enable OpenSSL (hardware) ENGINE support
--with-prngd-port=PORT read entropy from PRNGD/EGD TCP localhost:PORT
--with-prngd-socket=FILE read entropy from PRNGD/EGD socket FILE (default=/var/run/egd-pool)
--with-pam Enable PAM support
--with-pam-service=name Specify PAM service name
--with-privsep-user=user Specify non-privileged user for privilege separation
--with-sandbox=style Specify privilege separation sandbox (no, capsicum, darwin, rlimit, seccomp_filter, systrace, pledge)
--with-selinux Enable SELinux support
--with-kerberos5=PATH Enable Kerberos 5 support
--with-privsep-path=xxx Path for privilege separation chroot (default=/var/empty)
--with-xauth=PATH Specify path to xauth program
--with-maildir=/path/to/mail Specify your system mail directory
--with-mantype=man|cat|doc Set man page type
--with-md5-passwords Enable use of MD5 passwords
--without-shadow Disable shadow password support
--with-ipaddr-display Use ip address instead of hostname in $DISPLAY
--with-default-path= Specify default $PATH environment for server
--with-superuser-path= Specify different path for super-user
--with-4in6 Check for and convert IPv4 in IPv6 mapped addresses
--with-bsd-auth Enable BSD auth support
--with-pid-dir=PATH Specify location of sshd.pid file
--with-lastlog=FILE|DIR specify lastlog location common locations
Some influential environment variables:
CC C compiler command
CFLAGS C compiler flags
LDFLAGS linker flags, e.g. -L<lib dir> if you have libraries in a
nonstandard directory <lib dir>
LIBS libraries to pass to the linker, e.g. -l<library>
CPPFLAGS (Objective) C/C++ preprocessor flags, e.g. -I<include dir> if
you have headers in a nonstandard directory <include dir>
CPP C preprocessor
Use these variables to override the choices made by `configure' or to help
it to find libraries and programs with nonstandard names/locations.
Report bugs to <openssh-unix-dev@mindrot.org>.
- configure 参数
# ./configure --prefix=/usr/ --sysconfdir=/etc/ssh --with-ssl-dir=/usr/local/lib64 --with-zlib --with-md5-passwords --with-pam --with-ssl-engine --with-selinux --with-ipaddr-display
- 安装
# make && make install
4.3 配置验证（最后）
4.3.1 查看相应的配置文件
# ls /etc/ssh/
moduli ssh_config sshd_config ssh_host_dsa_key ssh_host_dsa_key.pub ssh_host_ecdsa_key ssh_host_ecdsa_key.pub ssh_host_ed25519_key ssh_host_ed25519_key.pub ssh_host_rsa_key ssh_host_rsa_key.pub
4.3.2 修改 sshd 配置文件
# vim /etc/ssh/sshd_config
4.3.3 配置启动文件
从原先的解压的包中拷贝一些文件到目标位置（如果目标目录存在就覆盖）
# cp -a contrib/redhat/sshd.init /etc/init.d/sshd
# cp -a contrib/redhat/sshd.pam /etc/pam.d/sshd.pam
# chmod +x /etc/init.d/sshd
# chkconfig --add sshd
# systemctl enable sshd
把原先的 systemd 管理的 sshd 文件删除或者移走或者删除，不移走的话影响我们重启 sshd 服务
# mv /usr/lib/systemd/system/sshd.service your_backup_dir
4.3.4 配置开机启动
# chkconfig sshd on
Note: Forwarding request to 'systemctl enable sshd.socket'.
Created symlink from /etc/systemd/system/sockets.target.wants/sshd.socket to /usr/lib/systemd/system/sshd.socket.
4.3.5 接下来测试启停服务
# /etc/init.d/sshd restart
Restarting sshd (via systemctl): [ 确定 ]
# netstat -lntp | grep 22
tcp 0 0 0.0.0.0:22 0.0.0.0:* LISTEN 26069/sshd
tcp6 0 0 :::22 :::* LISTEN 26069/sshd
# /etc/init.d/sshd stop
Stopping sshd (via systemctl): [ 确定 ]
# netstat -lntp | grep 22
# /etc/init.d/sshd start
Starting sshd (via systemctl): [ 确定 ]
# systemctl status sshd
● sshd.service - SYSV: OpenSSH server daemon
Loaded: loaded (/etc/rc.d/init.d/sshd; bad; vendor preset: enabled)
Active: active (running) since 四 2019-09-19 20:39:57 CST; 11s ago
Docs: man:systemd-sysv-generator(8)
Process: 26229 ExecStop=/etc/rc.d/init.d/sshd stop (code=exited, status=0/SUCCESS)
Process: 26310 ExecStart=/etc/rc.d/init.d/sshd start (code=exited, status=0/SUCCESS)
Main PID: 26320 (sshd)
Tasks: 1
Memory: 608.0K
CGroup: /system.slice/sshd.service
└─26320 /usr/sbin/sshd
9月 19 20:39:57 sz-lab-centos7-gitlab-nginx-proxy-192.168.178.46 systemd[1]: Starting SYSV: OpenSSH server daemon...
9月 19 20:39:57 sz-lab-centos7-gitlab-nginx-proxy-192.168.178.46 sshd[26320]: Server listening on 0.0.0.0 port 22.
9月 19 20:39:57 sz-lab-centos7-gitlab-nginx-proxy-192.168.178.46 sshd[26320]: Server listening on :: port 22.
9月 19 20:39:57 sz-lab-centos7-gitlab-nginx-proxy-192.168.178.46 sshd[26310]: Starting sshd:[ 确定 ]
9月 19 20:39:57 sz-lab-centos7-gitlab-nginx-proxy-192.168.178.46 systemd[1]: Started SYSV: OpenSSH server daemon.
4.4 验证版本
# ssh -V
OpenSSH_8.0p1, OpenSSL 1.1.1d 10 Sep 2019
4.5 SSH 连接测试
# ssh you_username@your_server_ip
4.6 重启测试
# sync
# reboot now
欢迎来到这里！
我们正在构建一个小众社区，大家在这里相互信任，以平等 • 自由 • 奔放的价值观进行分享交流。最终，希望大家能够找到与自己志同道合的伙伴，共同成长。
注册 关于
