Prometheus+Grafana+Zabbix+alertmanager 部署

本贴最后更新于 1627 天前,其中的信息可能已经时过境迁

一、准备环境

程序 OS IP
prometheus& grafana server centos 7.6 192.168.66.52
prometheus node centos 7.6 192.168.66.53

二、部署 prometheus

在 prometheus& grafana server 节点部署 prometheus 服务。

1. 下载&部署

[root@prometheus ~]# mkdir /soft
[root@prometheus ~]# cd /soft/

[root@prometheus soft]# wget https://github.com/prometheus/prometheus/releases/download/v2.12.0/prometheus-2.12.0.linux-amd64.tar.gz

# 部署到/usr/local/目录
# promethus不用编译安装,解压目录中有配置文件与启动文件
[root@prometheus soft]# tar -zxvf prometheus-2.12.0.linux-amd64.tar.gz -C /usr/local/

[root@prometheus soft]# cd /usr/local/
[root@prometheus local]# mv prometheus-2.12.0.linux-amd64 prometheus

# 验证
[root@prometheus local]# cd prometheus/
[root@prometheus prometheus]# ./prometheus --version


2. 设置用户

#  添加用户,后期用此账号启动服务
[root@prometheus prometheus]# groupadd prometheus
[root@prometheus prometheus]# useradd -g prometheus -s /sbin/nologin prometheus

# 赋权
[root@prometheus prometheus]# cd ~
[root@prometheus ~]# chown -R prometheus:prometheus /usr/local/prometheus/

# 创建prometheus运行数据目录
[root@prometheus ~]# mkdir -p /var/lib/prometheus
[root@prometheus ~]# chown -R prometheus:prometheus /var/lib/prometheus/

3. 设置开机启动

[root@prometheus ~]# vim /etc/systemd/system/prometheus.service

[Unit]
Description=Prometheus
Documentation=https://prometheus.io/
After=network.target

[Service]
# Type设置为notify时,服务会不断重启
Type=simple
User=prometheus
# --storage.tsdb.path是可选项,默认数据目录在运行目录的./dada目录中
ExecStart=/usr/local/prometheus/prometheus --config.file=/usr/local/prometheus/prometheus.yml --storage.tsdb.path=/var/lib/prometheus
Restart=on-failure

[Install]
WantedBy=multi-user.target
  • 设置开机启动
[root@prometheus ~]# systemctl daemon-reload
[root@prometheus ~]# systemctl enable Prometheus
[root@prometheus ~]# systemctl start prometheus

4. 设置 iptables 或 Firewalld

[root@prometheus ~]# vim /etc/sysconfig/iptables
-A INPUT -p tcp -m state --state NEW -m tcp --dport 9090 -j ACCEPT

[root@prometheus ~]# service iptables restart

# centos7默认开启firewalld
查看目前开放的端口
[root@prometheus ~]# firewall-cmd --zone=public --list-ports

开放9090端口
[root@prometheus ~]# firewall-cmd --permanent --zone=public --add-port=9090/tcp	#永久添加

使其规则生效
[root@prometheus ~]# firewall-cmd --reload

5. 启动并验证

1)查看服务状态

[root@prometheus ~]# systemctl status prometheus
[root@prometheus ~]# ss -tunlp | grep 9090

2)web ui

Prometheus 自带有简单的 UI,http://192.168.66.52:9090

在 Status 菜单下,Configuration,Rule,Targets 等,
Statu-->Configuration 展示 prometheus.yml 的配置,如下:

Statu-->Targets 展示监控具体的监控目标,这里监控目标"linux"暂未设置 node_exporter,未 scrape 数据,如下:

7. 绘图

  • 访问:http://192.168.66.52:9090/metrics,查看从 exporter 具体能抓到的数据,如下:

  • 访问:http://192.168.66.52:9090,在输入框中任意输入 1 个 exporter 能抓取得值,点击"Execute"与"Execute"按钮,即可见相应抓取数据的图形,同时可对时间与 unit 做调整,如下:

三、部署 node_exporter

  • Node_exporter 收集机器的系统数据,这里采用 prometheus 官方提供的 exporter,除 node_exporter 外,官方还提供 consul,memcached,haproxy,mysqld 等 exporter,具体可查看官网。
    这里在 prometheus node 节点部署相关服务。

1. 下载&部署

# 下载
[root@node1 ~]# cd /soft
[root@node1 soft]# wget https://github.com/prometheus/node_exporter/releases/download/v0.15.1/node_exporter-0.18.1.linux-amd64.tar.gz

# 部署
[root@node1 soft]# tar -zxvf node_exporter-0.18.1.linux-amd64.tar.gz -C /usr/local/
[root@node1 soft]# cd /usr/local
[root@node1 local]# mv node_exporter-0.18.1.linux-amd64 node_exporter

2. 设置用户

[root@node1 ~]# groupadd prometheus
[root@node1 ~]# useradd -g prometheus -s /sbin/nologin prometheus
[root@node1 ~]# chown -R prometheus:prometheus /usr/local/node_exporter/

3. 设置开机启动

[root@node1 ~]# vim /etc/systemd/system/node_exporter.service
[Unit]
Description=node_exporter
Documentation=https://prometheus.io/
After=network.target

[Service]
Type=simple
User=prometheus
ExecStart=/usr/local/node_exporter/node_exporter
Restart=on-failure

[Install]
WantedBy=multi-user.target


[root@node1 ~]# systemctl daemon-reload
[root@node1 ~]# systemctl enable node_exporter
[root@node1 ~]# systemctl start node_exporter

4. 设置 iptables 或 Firewalld

# 官方node_exporter默认使用9100端口
[root@node1 ~]# vim /etc/sysconfig/iptables
-A INPUT -p tcp -m state --state NEW -m tcp --dport 9100 -j ACCEPT

[root@node1 ~]# service iptables restart

# centos7默认开启firewalld
查看目前开放的端口
[root@node1 ~]# firewall-cmd --zone=public --list-ports

开放9100端口
[root@node1 ~]# firewall-cmd --permanent --zone=public --add-port=9100/tcp	#永久添加

使其规则生效
[root@node1 ~]# firewall-cmd --reload

再次查看端口
[root@node1 ~]# firewall-cmd --zone=public --list-ports

#检查服务状态
[root@node1 ~]# systemctl status node_exporter
[root@node1 ~]#  ss -tnlp | grep 9100

5. Prometheus 添加该主机

[root@prometheus ~]# vim /usr/local/prometheus/prometheus.yml
# 简单验证,主要配置采用默认文件配置,有修改/新增处用红色标示
[root@prometheus prometheus]# vim prometheus.yml
# 全局配置
global:
  scrape_interval:     15s # 设置抓取(pull)时间间隔,默认是1m
  evaluation_interval: 15s # 设置rules评估时间间隔,默认是1m
  # scrape_timeout is set to the global default (10s).

# 告警管理配置,暂未使用,默认配置
alerting:
  alertmanagers:
  - static_configs:
    - targets:
      # - alertmanager:9093

# 加载rules,并根据设置的时间间隔定期评估,暂未使用,默认配置
rule_files:
  # - "first_rules.yml"
  # - "second_rules.yml"

# 抓取(pull),即监控目标配置
# 默认只有主机本身的监控配置
scrape_configs:

   - job_name: 'prometheus'
    # metrics_path defaults to '/metrics'
    # scheme defaults to 'http'.
	static_configs:
        - targets: ['localhost:9090']

- job_name: 'linux'
      static_configs:
      - targets: ['192.168.66.53:9100']		#被监控端服务器ip
        labels:
          instance: node1
# 监控目标的label(这里的监控目标只是一个metric,而不是指某特定主机,可以在特定主机取多个监控目标),在抓取的每条时间序列表中都会添加此label
  • 注意:job_name 定义的组名必须不能相同
#重启prometheus服务
[root@prometheus ~]# systemctl restart prometheus

6、验证

四、部署 grafana

  • 在 prometheus& grafana server 节点部署 grafana 服务。

1. 下载&安装

https://grafana.com/grafana/download
# 下载,可以下载好之后上传至服务器
[root@prometheus ~]# cd /usr/local/src/
[root@prometheus soft]# wget https://dl.grafana.com/oss/release/grafana-6.3.3-1.x86_64.rpm

# 安装本地rpm包 localinstall
[root@prometheus soft]# yum localinstall grafana-6.3.3-1.x86_64.rpm

2. 配置文件

  • 配置文件位于/etc/grafana/grafana.ini,这里暂时保持默认配置即可。

3. 设置开机启动

[root@prometheus soft]# systemctl enable grafana-server
[root@prometheus soft]# systemctl start grafana-server

#查看服务状态
[root@prometheus soft]# systemctl status grafana-server
[root@prometheus soft]# ss -tnlp | grep 3000

4. 设置 iptables

# grafana-server默认使用3000端口
[root@prometheus soft]# vim /etc/sysconfig/iptables
-A INPUT -p tcp -m state --state NEW -m tcp --dport 3000 -j ACCEPT

[root@prometheus soft]# service iptables restart

# centos7默认开启firewalld
查看目前开放的端口
[root@prometheus soft]# firewall-cmd --zone=public --list-ports

开放3000端口
[root@prometheus soft]# firewall-cmd --permanent --zone=public --add-port=3000/tcp	#永久添加

使其规则生效
[root@prometheus soft]# firewall-cmd --reload

再次查看端口
[root@prometheus soft]# firewall-cmd --zone=public --list-ports

5. 添加数据源

1)登陆

2)添加数据源

  • 在登陆首页,点击"Add data source"按钮,跳转到添加数据源页面,配置如下:

Name: prometheus
Type: prometheus
URL: http://localhost:9090/ #prometheus 服务器所在地址,如果就在本机填写 localhost
Access: Server

  • 其余默认,点击"Add",如下:

  • 在"Dashboards"页签下"import"自带的模版,如下:

6. 导入 dashboard

  • 从 grafana 官网下载相关 dashboaed 到本地,如:https://grafana.com/

  • Grafana 首页--> 页面顶部-->Dashboards--> 页面左边 Filter by-选择仪表盘 prometheus

  • 上传已下载至本地的 json 文件到 Grafana 服务器[192.168.66.52:3000](或者使用 dashboard id),如下:

  • 数据源选择"prometheus",即添加的数据源 name,点击"Import"按钮,如下:

7. 安装饼图的插件

#使用新的grafana-cli工具从命令行安装piechart-panel:
[root@prometheus ~]# grafana-cli plugins install grafana-piechart-panel


该插件将安装到您的grafana插件目录中; 如果安装了grafana软件包,则默认在/var/lib/grafana/plugins
[root@prometheus ~]# cd /var/lib/grafana/plugins/


#重启grafana
[root@prometheus ~]# systemctl restart grafana-server

这样dashboard中的饼图就可以正常展示出来了

8. 查看 dashboard

  • Grafana 首页--> 左上角图标--> Home,Home 列表中可见有已添加的两个 dashboard," Node Exporter 0.16 0.17 for Prometheus 监控展示看板"与"Node dashboard Copy",选择 1 个即可,如下:

9. 更新 dashboard 名称


10. 删除 dashboard 操作


五、部署 mysql_exporter

1、部署的架构图


2、安装 mysqld_exporter

在node节点安装
[root@node2 ~]# wget https://github.com/prometheus/mysqld_exporter/releases/download/v0.11.0/mysqld_exporter-0.11.0.linux-amd64.tar.gz

[root@node2 ~]# tar xzvf mysqld_exporter-0.11.0.linux-amd64.tar.gz -C /usr/local/

[root@node2 ~]# cd /usr/local/

[root@node2 local]# mv mysqld_exporter-0.11.0.linux-amd64/ mysqld_exporter

3、设置账户

[root@node2 ~]# groupadd prometheus

[root@node2 ~]# useradd -g prometheus -s /sbin/nologin prometheus

#更改目录权限
[root@node2 ~]# chown -R prometheus:prometheus /usr/local/mysqld_exporter/

4、添加 MySQL 远程登入用户

  • 注意:MySQL5.7 设置密码时必须符合长度,与 validate_password_policy 的值有关。如果要修改简单点密码可以设置以下参数值
mysql> set global validate_password_policy=0;

mysql> GRANT REPLICATION CLIENT, PROCESS ON *.* TO 'mysqld_exporter'@'%' identified by '123456';

mysql> GRANT SELECT ON performance_schema.* TO 'mysqld_exporter'@'%';

mysql> flush privileges;

5、创建一个用于连接 MySQL 的配置文件

  • mysqld_exporter 默认会读取~/.my.cnf 文件。这里是创建在 mysqld_exporter 的安装目录下的
[root@node2 ~]# vim /usr/local/mysqld_exporter/.my.cnf
[client]
user=mysqld_exporter	//刚才创建的用户
password=123456		//登入密码

6、创建 systemd 服务

[root@exporter ~]# vim /etc/systemd/system/mysqld_exporter.service

[Unit]
Description=mysql_exporter
After=network.target
[Service]
Type=simple
User=prometheus
ExecStart=/usr/local/mysqld_exporter/mysqld_exporter --config.my-cnf=/usr/local/mysqld_exporter/.my.cnf
Restart=on-failure
[Install]
WantedBy=multi-user.target

7、启动 mysqld_exporter

[root@node2 ~]# systemctl enable mysqld_exporter

[root@node2 ~]# systemctl start mysqld_exporter

检查端口9104
[root@node2 ~]# lsof -i:9104
COMMAND    PID       USER   FD   TYPE   DEVICE SIZE/OFF NODE NAME
mysqld_ex 2573 prometheus    3u  IPv6 23391639      0t0  TCP *:peerwire (LISTEN)

8、设置 iptables 或者 Firewalld

# 官方mysqld_exporter默认使用9104端口
[root@node1 ~]# vim /etc/sysconfig/iptables
-A INPUT -p tcp -m state --state NEW -m tcp --dport 9104 -j ACCEPT

[root@node2 ~]# service iptables restart

# centos7默认开启firewalld
查看目前开放的端口
[root@node2 ~]# firewall-cmd --zone=public --list-ports

开放9104端口
[root@node2 ~]# firewall-cmd --permanent --zone=public --add-port=9104/tcp	#永久添加

使其规则生效
[root@node2 ~]# firewall-cmd --reload

再次查看端口
[root@node2 ~]#firewall-cmd --zone=public --list-ports

9、修改 prometheus.yml,加入下面的监控目标

[root@prometheus ~]# vim /usr/local/prometheus/prometheus.yml
  - job_name: mysql
    static_configs:
      - targets: ['192.168.66.11:9104']
        labels:
          instance: db1

8、重启 Prometheus

[root@Prometheus ~]# systemctl restart prometheus

9、在 Grafana 中导入模板

9.1:上传文件

  • 点击页面左侧---Dashboards---Home---即可看见刚才创建的仪表盘

六、Grafana 配合 zabbix 展示

1、安装 zabbix 插件,在 Grafana 服务器

[root@prometheus ~]# grafana-cli plugins install alexanderzobnin-zabbix-app
重启Grafan
[root@prometheus ~]# systemctl restart grafana-server

2、添加数据源


URL http://zabbix 服务 IP/zabbix/api_jsonrpc.php
Zabbix API details
Username:zabbix 登入用户
Password:zabbix 用户密码

  • 根据安装的 zabbix 选择对于的版本
    点击 Save & Test 保存

3、创建数据源


1、首先选择数据源:zabbix
2、选择 zabbix 内的主机组
3、选择主机
4、选择应用集
5、选择监控项
6、给这一条数据添加一个名称(将显示在图表下方,方便观看者辨识每条曲线代表什么意思)
7、如果需要添加多条曲线点击 ADD Query,然后循环 2-6 即可
8、完成后点击右边的白色叉叉即可展现出图表,如下图:

  • 右上角点击保存图标进行保存

  • 定义 dashboard 名称

七、Alertmanager 告警

  • 首先需要在企业微信中添加应用小程序

  • 应用的 ID 需要记住,后面使用

  • 企业的唯一 ID 需要记住,后面使用

1、安装 Alertmanager

[root@prometheus ~]# tar -xzvf alertmanager-0.18.1.linux-amd64.tar.gz –C /usr/local/
[root@prometheus local]# cd /usr/local/

[root@prometheus local]# mv alertmanager-0.18.0.linux-amd64/ alertmanager

2、配置 prometheus.yml

[root@prometheus ~]# vim /usr/local/prometheus/prometheus.yml

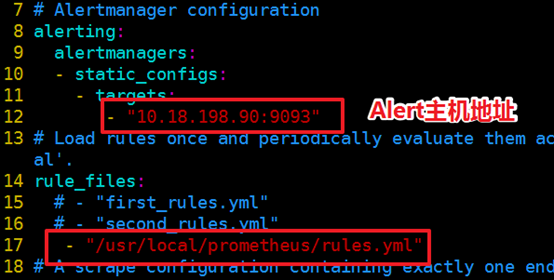

![image.png](https://b3logfile.com/file/2019/10/image-abf214bb.png)

3、创建告警规则文件

[root@prometheus ~]# cd /usr/local/prometheus/
[root@prometheus prometheus]# vim rules.yml
groups:
- name: node
  rules:
  - alert: server_status   # alert 名字
    expr: up{job="prometheus"} == 0	#job是prometheus.yml中的jobname
    for: 15s	# 条件保持 15s 才会发出 alert
    labels:	#自定义标签
      severity: page
annotations:	# alert 的其他标签,但不用于标识 alert
      ummary: "机器 {{ $labels.instance }} 挂了"	#告警标题
      description: "请立即查看"	#告警详细内容

alert:告警规则的名称。
expr:基于 PromQL 表达式告警触发条件,用于计算是否有时间序列满足该条件。
for:评估等待时间,可选参数。用于表示只有当触发条件持续一段时间后才发送告警。在等待期间新产生告警的状态为 pending。
labels:自定义标签,允许用户指定要附加到告警上的一组附加标签。
annotations:用于指定一组附加信息,比如用于描述告警详细信息的文字等,annotations 的内容在告警产生时会一同作为参数发送到 Alertmanager。

4、配置 alertmanager.yml

[root@prometheus prometheus]# cd /usr/local/alertmanager/
[root@prometheus alertmanager]# vim alertmanager.yml
global:
    resolve_timeout: 5m  #该参数定义了当Alertmanager持续多长时间未接收到告警后标记告警状态为resolved(已解决)。该参数的定义可能会影响到告警恢复通知的接收时间,读者可根据自己的实际场景进行定义,其默认值为5分钟

templates:       #自定义告警模板文件
- '/usr/local/alertmanager/wechat.tmpl'

route:
    group_by: ['alertname'] #将传入的报警中有这些标签的分为一个组.
    group_wait: 10s      #指分组创建多久后才可以发送压缩的警报,也就是初次发警报的延时.这样会确保第一次通知的时候, 有更多的报警被压缩在一起.
    group_interval: 10s   #当第一个通知发送,等待多久发送压缩的警报
    repeat_interval: 1h   #如果报警发送成功, 等待多久重新发送一次
    receiver: 'wechat'    #默认的接收器
receivers:
- name: 'wechat'
  wechat_configs:
  - corp_id: 'xxx'
    to_party: '1'
    agent_id: '1000002'
    api_secret: 'xxx'
    send_resolved: true

corp_id: 企业微信账号唯一 ID, 可以在我的企业中查看。
to_party: 需要发送的组。
agent_id: 第三方企业应用的 ID,可以在自己创建的第三方企业应用详情页面查看。
api_secret: 第三方企业应用的密钥,可以在自己创建的第三方企业应用详情页面查看。

5、配置 wechat 告警模板

[root@prometheus ~]# vim /usr/local/alertmanager/wechat.tmpl

{{ define "wechat.default.message" }}
{{ range .Alerts }}
========start==========
告警程序:prometheus_alert
告警级别:{{ .Labels.severity }}
告警类型:{{ .Labels.alertname }}
故障主机: {{ .Labels.instance }}
告警主题: {{ .Annotations.summary }}
告警详情: {{ .Annotations.description }}
触发时间: {{ .StartsAt.Format "2006-01-02 15:04:05" }}
========end==========
{{ end }}
{{ end }}

6、配置 systemd 启动

[root@prometheus ~]# vim /etc/systemd/system/alertmanager.service
[Unit]
Description=Prometheus: the alerting system
Documentation=http://prometheus.io/docs/
After=prometheus.service

[Service]
ExecStart=/usr/local/alertmanager/alertmanager --config.file=/usr/local/alertmanager/alertmanager.yml
Restart=always
StartLimitInterval=0
RestartSec=10

[Install]
WantedBy=multi-user.target

7、启动 Alertmanager

[root@prometheus ~]# systemctl start alertmanager
[root@prometheus ~]# systemctl enable alertmanager

###8、检查启动状态

[root@prometheus ~]# ss –tnlp | grep 9093
  • 注意:如果启动检查没有 9093 端口,那么需要查看系统日志
    如果报错为:did not find expected key
    原因:alertmanager.yml 的配置文件有问题,出现了空格或者格式不对导致
    解决方案:检查配置文件进行修改

9、浏览器访问查看

  • 查看 prometheus 页面

  • 查看 Alertmanager 页面
    http://ip:9093

10、手动停止 node_exporter 测试

[root@prometheus ~]# systemctl stop node_exporte

11、prometheus 监控页面查看 Alert


12、查看 AlertManager 告警页面


13、查看微信消息


14、常用告警规则总结

告警规则不会定义,也可以在 Grafan 中直接复制即可
可以在一个告警规则文件中定义多个告警项

1、修改 prometheus 配置文件

[root@prometheus ~]# cd /usr/local/prometheus/
[root@prometheus prometheus]# vim prometheus.yml


2、创建目录和告警规则文件

[root@prometheus prometheus]# mkdir rules
[root@prometheus prometheus]# chown -R prometheus. rules

[root@prometheus prometheus]# cd rules/
[root@prometheus rules]# vim cpu_rules.yml
groups:
- name: hostStatsAlert
  rules:
  - alert: hostCpuUsageAlert
    expr: sum(avg without (cpu)(irate(node_cpu{mode!='idle'}[5m]))) by (instance) > 0.85
    for: 1m
    labels:
      severity: page
    annotations:
      summary: "Instance {{ $labels.instance }} CPU usgae high"
      description: "{{ $labels.instance }} CPU usage above 85% (current value: {{ $value }})"
  - alert: hostMemUsageAlert
    expr: (node_memory_MemTotal - node_memory_MemAvailable)/node_memory_MemTotal > 0.85
    for: 1m
    labels:
      severity: page
    annotations:
      summary: "Instance {{ $labels.instance }} MEM usgae high"
      description: "{{ $labels.instance }} MEM usage above 85% (current value: {{ $value }})"

3、重启 prometheus

[root@prometheus rules]# systemctl restart prometheus

4、查看页面


5、测试告警

  • 修改告警规则文件触发告警
1 操作
GeekBoyDqz 在 2019-10-14 20:49:11 更新了该帖

相关帖子

欢迎来到这里!

我们正在构建一个小众社区,大家在这里相互信任,以平等 • 自由 • 奔放的价值观进行分享交流。最终,希望大家能够找到与自己志同道合的伙伴,共同成长。

注册 关于
请输入回帖内容 ...
GeekBoyDqz
从不拘泥任何世俗凡人的目光,我要奔向前方那光芒 上海
