Nginx 反向配置,SSL 证书配置

本贴最后更新于 1941 天前,其中的信息可能已经天翻地覆

Nginx 安装、配置

安装

CentOS 6/7 安装 Nginx
添加镜像源

sudo rpm -Uvh http://nginx.org/packages/centos/7/noarch/RPMS/nginx-release-centos-7-0.el7.ngx.noarch.rpm

通过 yum search nginx 看看是否已经添加源成功。如果成功则执行下列命令安装 Nginx

sudo yum install -y nginx

Ubuntu 16/18 安装 Nginx

sudo apt-get install nginx

浏览器输入 http://IP 如果出现 Welcome to nginx ! 字样表示安装成功。

默认安装位置:/usr/local/nginx

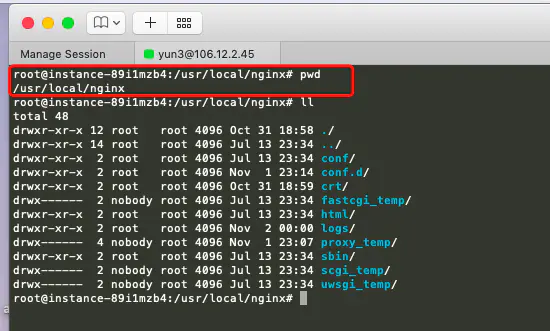

Nginx 目录下文件夹含义:

conf:nginx 所有配置文件
conf.d:默认的主配置文件
sbin : 存放主程序
html : 默认的静态页面
logs : 日志
scgi_temp : 临时目录
uwsgi_temp : 临时目录

Nginx 重启、停止、启动

#重启 service nginx restart #停止 /usr/local/nginx/sbin/nginx -s stop service nginx stop #启动 /usr/local/nginx/sbin/nginx service nginx start #重新加载配置文件 /usr/local/nginx/sbin/nginx -c /usr/local/nginx/conf/nginx.conf

Nginx 配置 Http

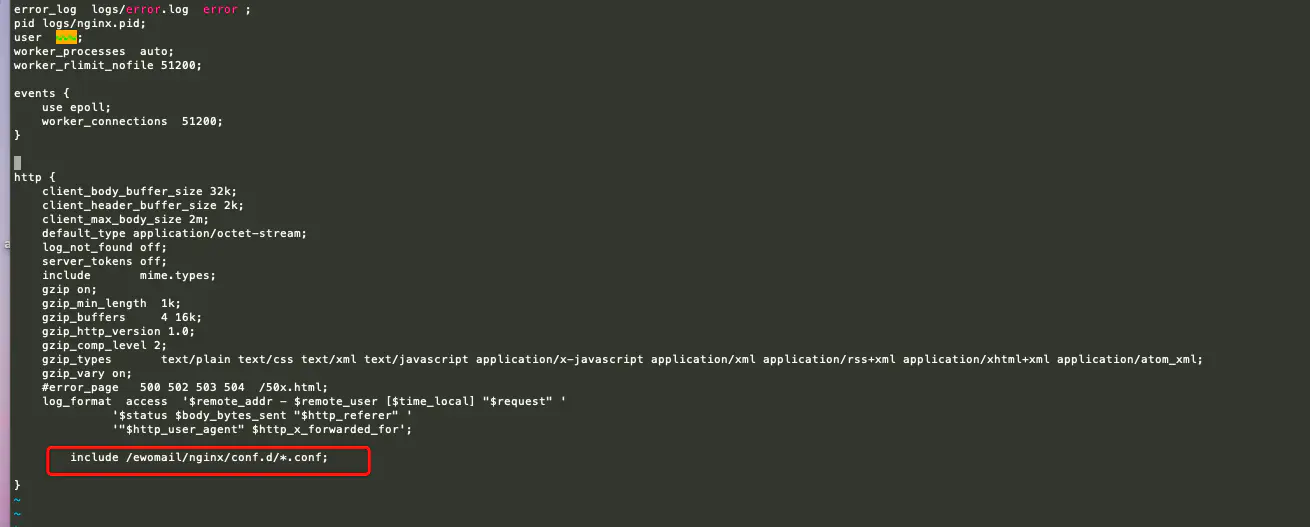

编辑 conf/nginx.con http 下添加 include /usr/local/nginx/conf.d/*.conf;

vim /usr/local/nginx/conf/nginx.conf


接着到 conf.d 下,新建任意以 .conf 结尾的文件

cd /usr/local/nginx/conf.d/ touch tomcat.conf vim tomcat.conf

如果 cdcond.d 目录下提示 -bash: cd: /usr/local/nginx/conf.d/: No such file or directory,需要创建 conf.d 文件夹,再进到 cond.d 下。

mdkir -p /usr/local/nginx/conf.d/

接下来配置 http 协议 80 端口

eg:博客地址:http://127.0.0.1:8080/blogs/
使用 Nginx 反向代理 8080 端口 blogs 项目

upstream blogs{ ip_hash; #session共享 server 127.0.0.1:8080 max_fails=3 fail_timeout=600s; } server { listen 80 backlog=65535; server_tokens off; server_name 127.0.0.1; #access_log /gs/nginx-logs/teach.access.log; #proxy_set_header Host $host:$server_port; proxy_set_header Host $host; # 获取真实IP proxy_set_header X-Real-IP $remote_addr; proxy_set_header REMOTE-HOST $remote_addr; # 获取代理者的真实ip proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; proxy_http_version 1.1; #proxy_set_header Connection ""; proxy_buffering off; proxy_redirect off; location / { #这两个方法都可,转发地址栏显示http://127.0.0.1,重定向显示http://127.0.0.1/blogs # rewrite "/" http://127.0.0.1/blogs; #重定向 proxy_pass http://mblogs; #转发 } location /blogs { proxy_next_upstream http_502 http_504 error timeout invalid_header; set $origin '*';#写入需要跨域的请求地址 if ($request_method = 'OPTIONS') { add_header 'Access-Control-Allow-Origin' $origin; add_header 'Access-Control-Allow-Methods' 'GET, POST, OPTIONS'; add_header 'Access-Control-Max-Age' 17280000; #add_header 'Content-Type' 'multipart/form-data'; #add_header 'Content-Type' 'text/plain charset=UTF-8'; add_header 'Content-Length' 0; return 204; } if ($request_method = 'POST') { add_header 'Access-Control-Allow-Origin' $origin; #add_header 'Content-Type' 'multipart/form-data'; add_header 'Access-Control-Allow-Methods' 'GET, POST, OPTIONS'; add_header 'Access-Control-Allow-Headers' 'DNT,X-CustomHeader,Keep-Alive,User-Agent,X-Requested-With,If-Modified-Since,Cache-Control,Content-Type'; } if ($request_method = 'GET') { add_header 'Access-Control-Allow-Origin' $origin; add_header 'Access-Control-Allow-Methods' 'GET, POST, OPTIONS'; add_header 'Access-Control-Allow-Headers' 'DNT,X-CustomHeader,Keep-Alive,User-Agent,X-Requested-With,If-Modified-Since,Cache-Control,Content-Type'; } proxy_pass http://blogs; } }

Http 协议访问

http://127.0.0.1

至此,http 协议的反向代理就配置完成,下面是配置 https 协议。

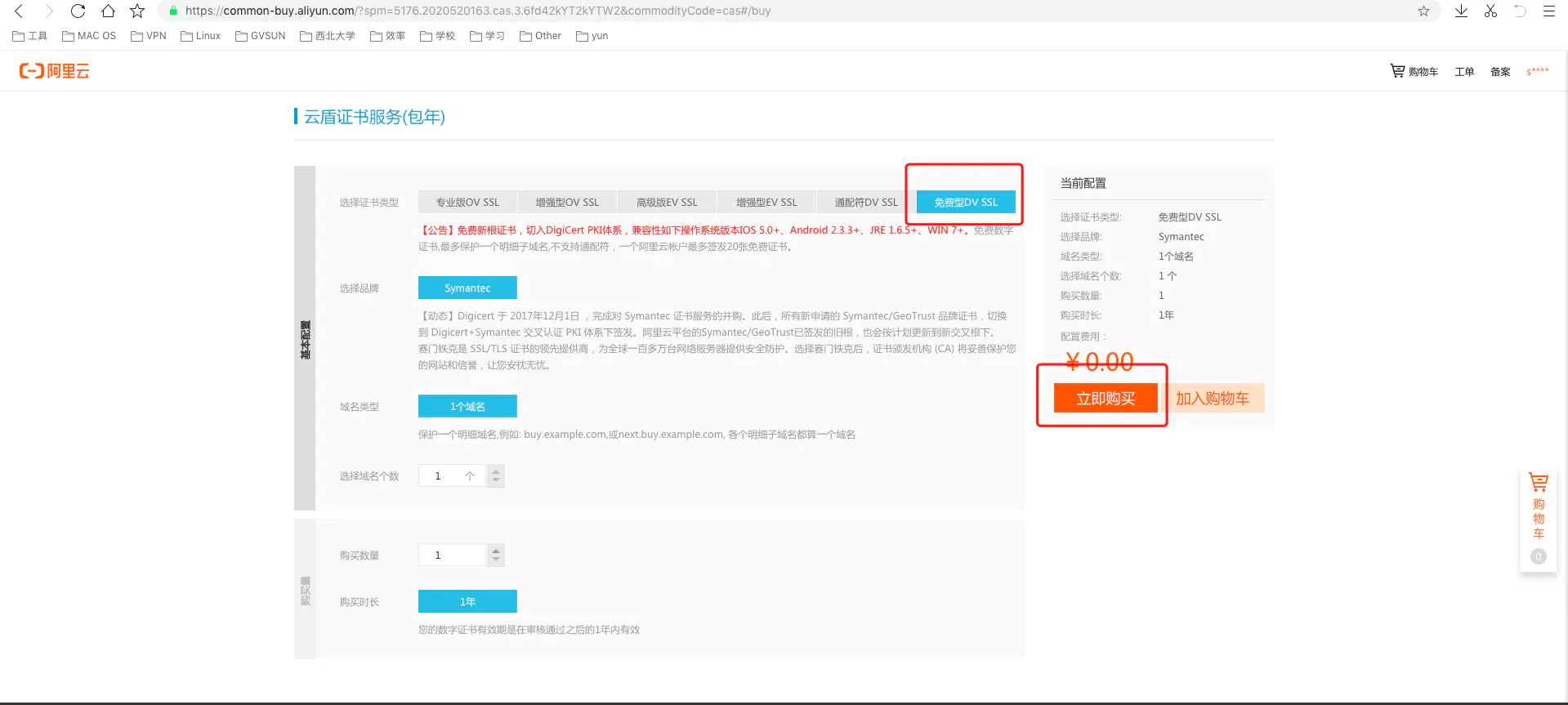

申请 ssl 证书(阿里云为例)

阿里云传送带
腾讯云传送带

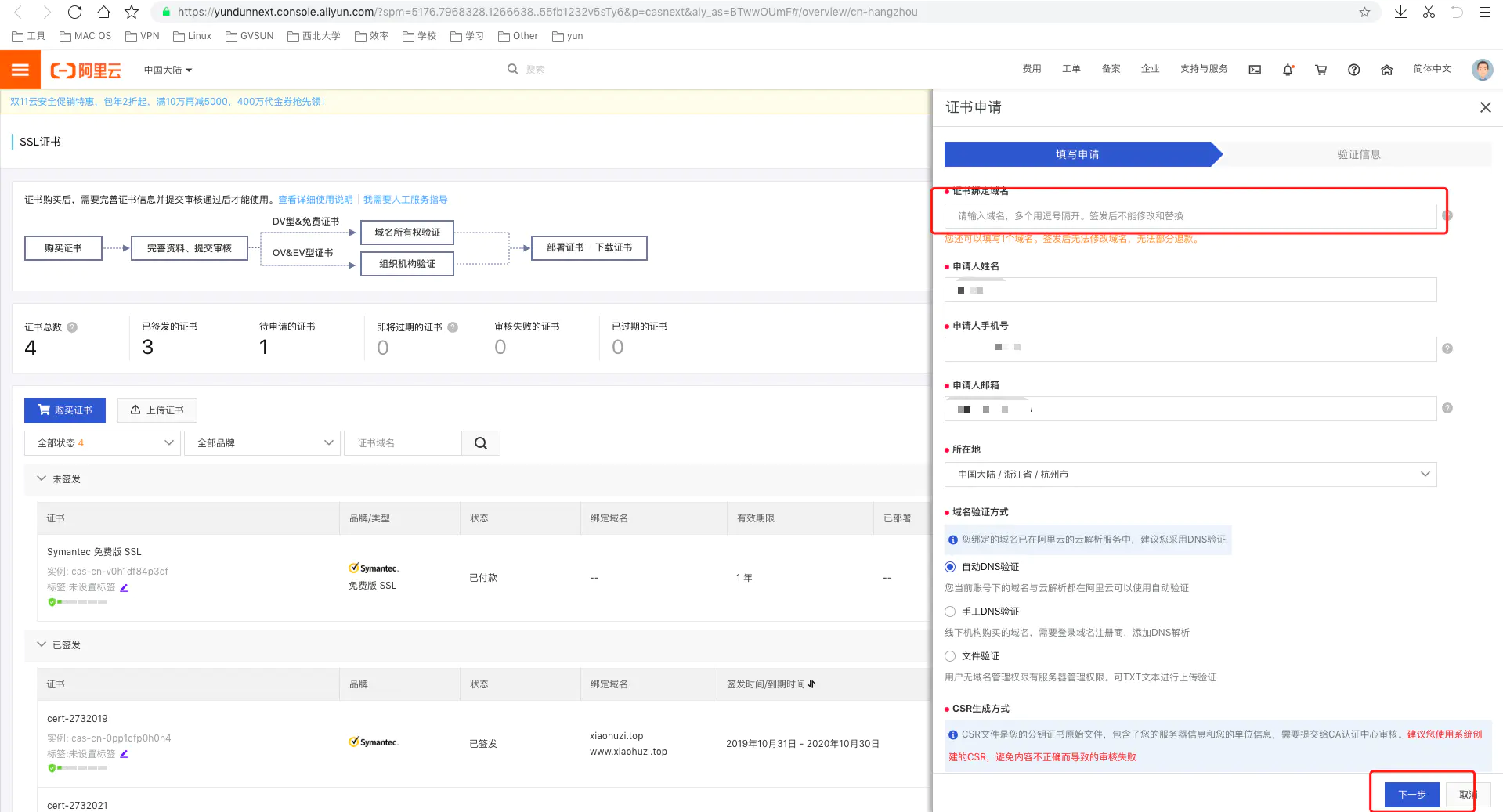

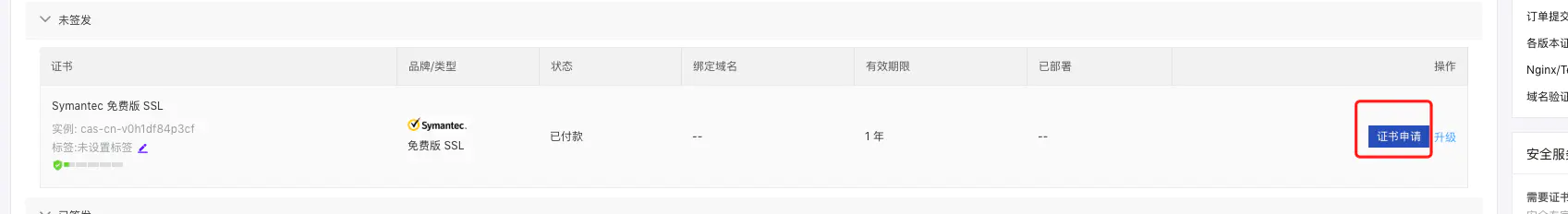

购买后在阿里云 SSL 证书管理控制台可以看到一个证书,未签发状态需要点击证书申请,填写绑定的域名和个人信息后,点击下一步等待申请,差不多不到一天就可以通过。

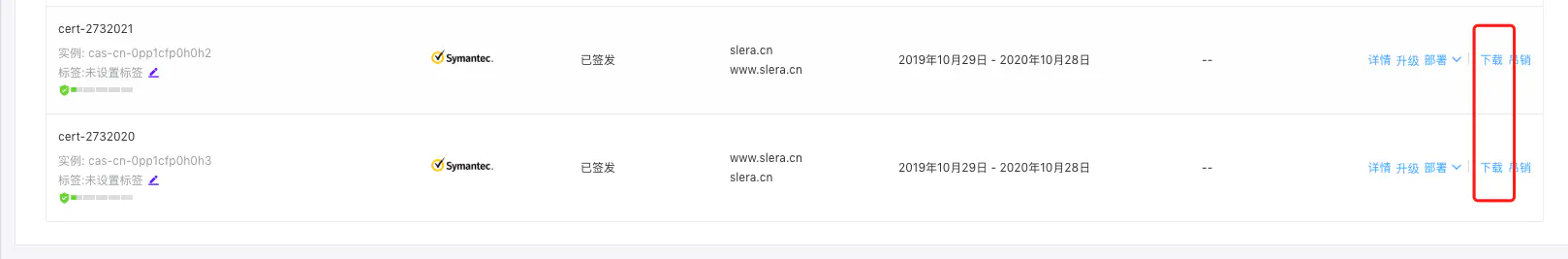

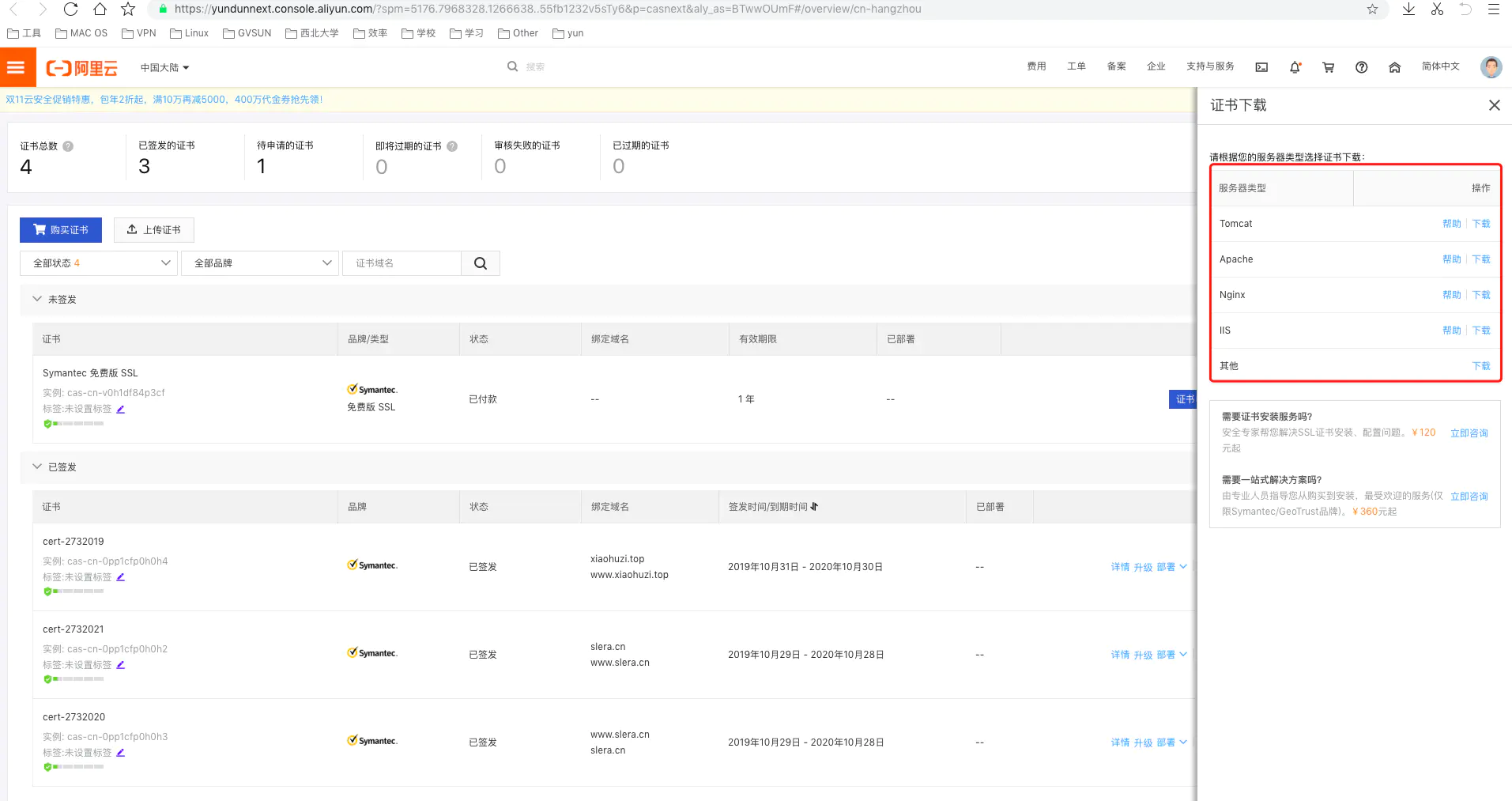

证书申请通过后,显示如下图;点击下载会弹出几大 Web 应用服务器的证书类型;点击下载即可,详情

配置 SSL

准备工作

将下载的 SSL 证书上传到服务器上面到 nginx 的根目录 /usr/local/nginx/

cd /usr/local/nginx/ #创建crt文件夹 mkdir crt #剪切到crt目录下 mv 3006543_sll.cn_tomcat.zip crt/ # 安装unzip gzip 如果已安装,跳过这一步 yum install unzip gzip #Centos安装 apt-get yum install unzip gzip #Ubuntu 安装 #解压 unzip 3006543_sll.cn_tomcat.zip

解压完成后可以看到 .pem.key 结尾的文件
.pem 是 SSL 的证书
.key 是 SSL 的秘钥

Nginx 配置 Https

进入到 conf.d 目录下

cd /usr/local/nginx/conf.d #编辑配置文件tomcat.conf vim tomcat.conf

完整文件如下:
注意修改 ssl_certificatessl_certificate_key 证书的路径和证书名字,127.0.0.1 改为你的域名

upstream blogs{ ip_hash; server 127.0.0.1:8080 max_fails=3 fail_timeout=600s; } server { listen 80 backlog=65535; server_tokens off; server_name 127.0.0.1; #access_log /gs/nginx-logs/teach.access.log; #proxy_set_header Host $host:$server_port; proxy_set_header Host $host; # 获取真实IP proxy_set_header X-Real-IP $remote_addr; proxy_set_header REMOTE-HOST $remote_addr; # 获取代理者的真实ip proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; proxy_http_version 1.1; #proxy_set_header Connection ""; proxy_buffering off; proxy_redirect off; location / { rewrite "/" https://127.0.01; } } server { listen 443; #ssl on; server_tokens off; server_name 127.0.0.1; #access_log /gs/nginx-logs/teach.access.log; #proxy_set_header Host $host:$server_port; proxy_set_header Host $host; # 获取真实IP proxy_set_header X-Real-IP $remote_addr; proxy_set_header REMOTE-HOST $remote_addr; # 获取代理者的真实ip proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; proxy_http_version 1.1; #proxy_set_header Connection ""; proxy_buffering off; # proxy_redirect off; ssl_certificate /usr/local/nginx/crt/a.pem;#证书文件名称 ssl_certificate_key /usr/local/nginx/crt/a.key;#私钥文件名称 ssl_session_timeout 5m; ssl_protocols TLSv1 TLSv1.1 TLSv1.2; #请按照这个协议配置 ssl_ciphers ECDHE-RSA-AES128-GCM-SHA256:HIGH:!aNULL:!MD5:!RC4:!DHE;#请按照这个套件配置 ssl_prefer_server_ciphers on; location / { proxy_pass http://blogs; } location /blogs { proxy_next_upstream http_502 http_504 error timeout invalid_header; set $origin '*';#写入需要跨域的请求地址 if ($request_method = 'OPTIONS') { add_header 'Access-Control-Allow-Origin' $origin; add_header 'Access-Control-Allow-Methods' 'GET, POST, OPTIONS'; add_header 'Access-Control-Max-Age' 17280000; #add_header 'Content-Type' 'multipart/form-data'; #add_header 'Content-Type' 'text/plain charset=UTF-8'; add_header 'Content-Length' 0; return 204; } if ($request_method = 'POST') { add_header 'Access-Control-Allow-Origin' $origin; #add_header 'Content-Type' 'multipart/form-data'; add_header 'Access-Control-Allow-Methods' 'GET, POST, OPTIONS'; add_header 'Access-Control-Allow-Headers' 'DNT,X-CustomHeader,Keep-Alive,User-Agent,X-Requested-With,If-Modified-Since,Cache-Control,Content-Type'; } if ($request_method = 'GET') { add_header 'Access-Control-Allow-Origin' $origin; add_header 'Access-Control-Allow-Methods' 'GET, POST, OPTIONS'; add_header 'Access-Control-Allow-Headers' 'DNT,X-CustomHeader,Keep-Alive,User-Agent,X-Requested-With,If-Modified-Since,Cache-Control,Content-Type'; } proxy_pass http://blogs; } }

配置完成后重启 Nnginx

#重启 /usr/local/nginx/sbin/nginx -s stop /usr/local/nginx/sbin/nginx #或者 service nginx restart

服务器需要关闭防火墙,云服务器需要在控制台开放 80,443 端口

Htpps 访问

https://127.0.0.1
