SpringBoot 入门教程 (四) | 整合 Swagger2 构建强大的 RESTful API 文档

本贴最后更新于 1049 天前,其中的信息可能已经事过境迁

前言

今天给你们带来 SpringBoot 集成 Swagger2 的教程。

什么是 Swagger2

Swagger 是一个规范和完整的框架,用于生成、描述、调用和可视化 RESTful 风格的 Web 服务。

为什么使用 Swagger2 ?

相信刚开始不熟悉 web 开发的时候,大家都有手写 Api 文档的时候。而手写 Api 文档主要有以下几个痛点:

  1. 文档需要更新的时候,需要再次发送一份给前端,也就是文档更新交流不及时。
  2. 接口返回结果不明确。
  3. 不能直接在线测试接口,通常需要使用工具,比如 postman。
  4. 接口文档太多,不好管理。

这些痛点在前后端分离的大型项目上显得尤为烦躁。而 Swagger2 的出现恰好能个解决这些痛点。因为 Swagger2 有以下功能:

  1. 文档自动更新,只要生成 Api 的网址没变,基本不需要跟前端沟通。
  2. 接口返回结果非常明确,包括数据类型,状态码,错误信息等。
  3. 可以直接在线测试文档,而且还有实例提供给你。
  4. 只需要一次配置便可使用,之后只要会有一份接口文档,非常易于管理。

集成演示

首先新建一个 SpringBoot 项目,还不会的参考我这篇旧文—— 如何使用 IDEA 构建 Spring Boot 工程

构建时,在选择依赖那一步勾选 Web、LomBok、JPA 和 Mysql 依赖。其中 Mysql 可以不勾,因为我这里用于操作实际的数据库,所以我勾选了。

生成 SpringBoot 后的 Pom 文件依赖如下:这里使用的是 2.4.0 的 Swagger2 版本。

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.1.2.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.nasus</groupId>
    <artifactId>swagger2</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>swagger2</name>
    <description>Demo project for Swagger2</description>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jpa</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
            <version>2.4.0</version>
        </dependency>

        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger-ui</artifactId>
            <version>2.4.0</version>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

第二步,在 SpringBoot 启动类(Application)的同级目录新建一个 Swagger 配置类,注意 Swagger2 配置类必须与项目入口类 Application 位于同一级目录,否则生成 Api 文档失败,代码如下:

package com.nasus;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

/**
 * Project Name:swagger2-demo <br/>
 * Package Name:com.nasus <br/>
 * Date:2019/1/22 22:52 <br/>
 * <b>Description:</b> TODO: 描述该类的作用 <br/>
 *
 * @author <a href="turodog@foxmail.com">nasus</a><br/>
 * Copyright Notice =========================================================
 * This file contains proprietary information of Eastcom Technologies Co. Ltd.
 * Copying or reproduction without prior written approval is prohibited.
 * Copyright (c) 2019 =======================================================
 */
@Configuration
// 启用 Swagger2
@EnableSwagger2
public class Swagger2 {

    @Bean
    public Docket createRestApi() {
        return new Docket(DocumentationType.SWAGGER_2)
                // 文档信息对象
                .apiInfo(apiInfo())
                .select()
                // 被注解的包路径
                .apis(RequestHandlerSelectors.basePackage("com.nasus.controller"))
                .paths(PathSelectors.any())
                .build();
    }
    private ApiInfo apiInfo() {
        return new ApiInfoBuilder()
                // 标题
                .title("springboot 利用 swagger 构建 API 文档")
                // Api 文档描述
                .description("简单优雅的 restful 风格,https://blog.csdn.net/turodog/")

                .termsOfServiceUrl("https://blog.csdn.net/turodog/")
                // 文档作者信息
                .contact(new Contact("陈志远", "https://github.com/turoDog", "turodog@foxmail.com"))
                // 文档版本
                .version("1.0")
                .build();
    }
}

第三步,配置被注解的 Controller 类,编写各个接口的请求参数,返回结果,接口描述等等,代码如下:

package com.nasus.controller;

import com.nasus.entity.Student;
import com.nasus.service.StudentService;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiImplicitParam;
import io.swagger.annotations.ApiImplicitParams;
import io.swagger.annotations.ApiOperation;
import java.util.List;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.DeleteMapping;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.PutMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RestController;
import springfox.documentation.annotations.ApiIgnore;

/**
 * Project Name:swagger2-demo <br/>
 * Package Name:com.nasus.controller <br/>
 * Date:2019/1/22 22:07 <br/>
 * <b>Description:</b> TODO: 描述该类的作用 <br/>
 *
 * @author <a href="turodog@foxmail.com">nasus</a><br/>
 * Copyright Notice =========================================================
 * This file contains proprietary information of Eastcom Technologies Co. Ltd.
 * Copying or reproduction without prior written approval is prohibited.
 * Copyright (c) 2019 =======================================================
 */
@RestController
@RequestMapping("/student")
// @Api:修饰整个类,描述Controller的作用
@Api("StudentController Api 接口文档")
public class StudentController {

    @Autowired
    private StudentService studentService;

    // @ApiOperation:描述一个类的一个方法,或者说一个接口
    @ApiOperation(value="获取所有学生列表", notes="获取所有学生列表")
    @RequestMapping(value={""}, method= RequestMethod.GET)
    public List<Student> getStudent() {
        List<Student> list = studentService.findAll();
        return list;
    }

    @ApiOperation(value="添加学生信息", notes="添加学生信息")
    // @ApiImplicitParam:一个请求参数
    @ApiImplicitParam(name = "student", value = "学生信息详细实体", required = true, dataType = "Student")
    @PostMapping("/save")
    public Student save(@RequestBody Student student){
        return studentService.save(student);
    }

    @ApiOperation(value="获学生信息", notes="根据url的id来获取学生详细信息")
    @ApiImplicitParam(name = "id", value = "ID", required = true, dataType = "Integer",paramType = "path")
    @GetMapping("/{id}")
    public Student findById(@PathVariable("id") Integer id){
        return studentService.findById(id);
    }

    @ApiOperation(value="删除学生", notes="根据url的id来指定删除的学生")
    @ApiImplicitParam(name = "id", value = "学生ID", required = true, dataType = "Integer",paramType = "path")
    @DeleteMapping("/{id}")
    public String deleteById(@PathVariable("id") Integer id){
        studentService.delete(id);
        return "success";
    }

    @ApiOperation(value="更新学生信息", notes="根据url的id来指定更新学生信息")
    // @ApiImplicitParams:多个请求参数
    @ApiImplicitParams({
            @ApiImplicitParam(name = "id", value = "学生ID", required = true, dataType = "Integer",paramType = "path"),
            @ApiImplicitParam(name = "student", value = "学生实体student", required = true, dataType = "Student")
    })
    @PutMapping(value="/{id}")
    public String updateStudent(@PathVariable Integer id, @RequestBody Student student) {
        Student oldStudent = this.findById(id);
        oldStudent.setId(student.getId());
        oldStudent.setName(student.getName());
        oldStudent.setAge(student.getAge());
        studentService.save(oldStudent);
        return "success";
    }

    // 使用该注解忽略这个API
    @ApiIgnore
    @RequestMapping(value = "/hi", method = RequestMethod.GET)
    public String  jsonTest() {
        return " hi you!";
    }
}

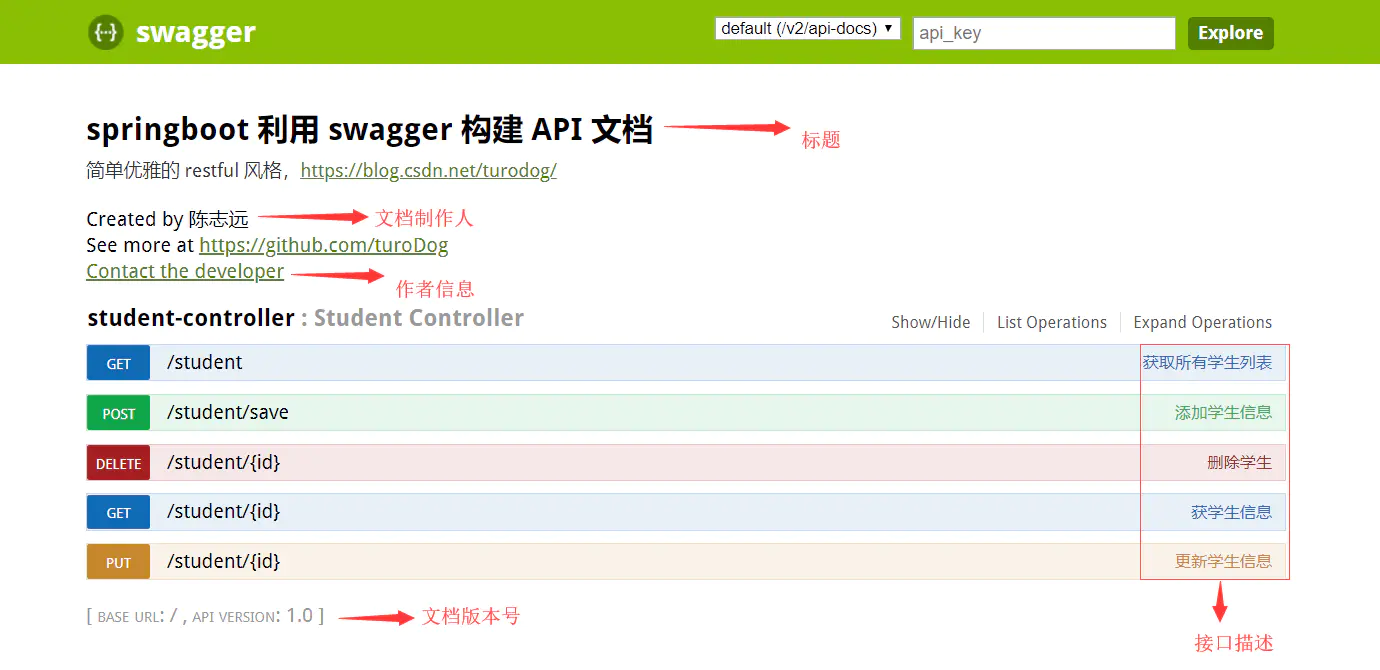

第四步,启动项目,访问 http://localhost:8080/swagger-ui.html 地址,结果如下图:

运行结果

项目源代码

github

图解接口

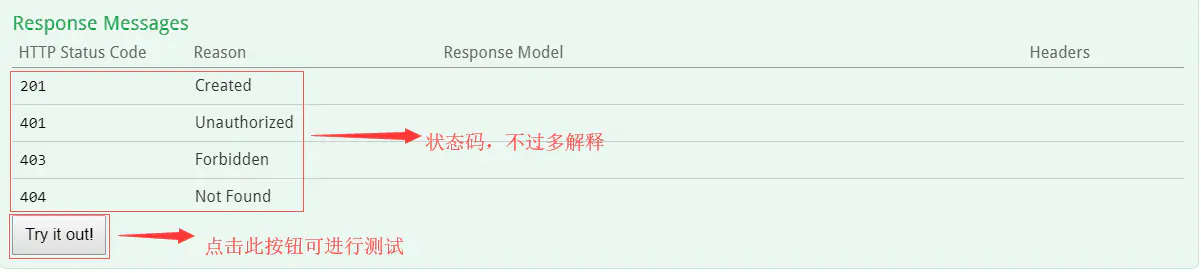

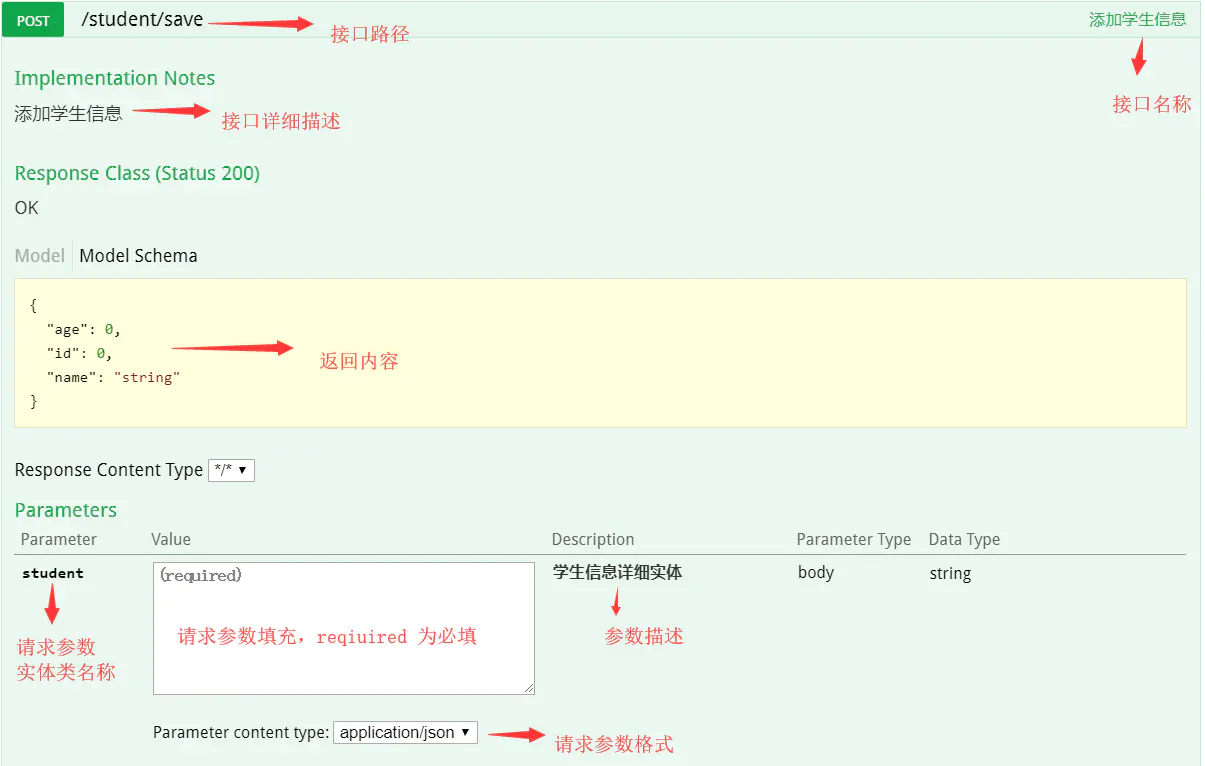

参数解释

参数解释

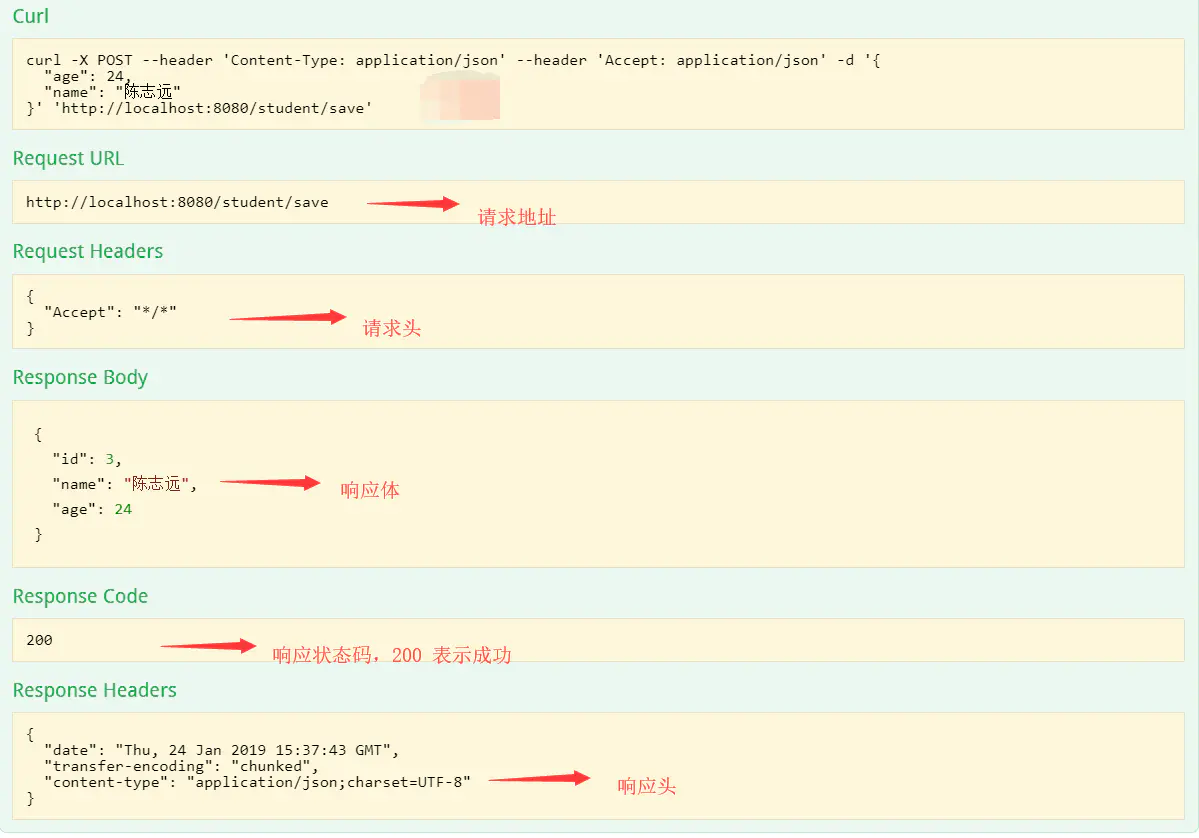

测试结果

Swagger2 常用注解简介

@ApiOperation:用在方法上,说明方法的作用
  1.value: 表示接口名称
  2.notes: 表示接口详细描述
@ApiImplicitParams:用在方法上包含一组参数说明
@ApiImplicitParam:用在@ApiImplicitParams注解中,指定一个请求参数的各个方面
  1.paramType:参数位置
  2.header 对应注解:@RequestHeader
  3.query 对应注解:@RequestParam
  4.path  对应注解: @PathVariable
  5.body 对应注解: @RequestBody
  6.name:参数名
  7.dataType:参数类型
  8.required:参数是否必须传
  9.value:参数的描述
  10.defaultValue:参数的默认值
@ApiResponses:用于表示一组响应
@ApiResponse:用在@ApiResponses中,一般用于表达一个错误的响应信息
  1.code:状态码
  2.message:返回自定义信息
  3.response:抛出异常的类
@ApiIgnore: 表示该接口函数不对swagger2开放展示
@Api:修饰整个类,描述Controller的作用
@ApiParam:单个参数描述
@ApiModel:用对象来接收参数
@ApiProperty:用对象接收参数时,描述对象的一个字段
@ApiIgnore:使用该注解忽略这个API
@ApiError :发生错误返回的信息

注意事项

@ApiImplicitParam 注解下的 paramType 属性,会影响接口的测试,如果设置的属性跟 spring 的注解对应不上,会获取不到参数。

例如 paramType=path ,函数内却使用 @RequestParam 注解,这样,可能会获取不到传递进来的参数,需要按照上面进行对应,将 @RequestParam 注解改为 @PathVariable 才能获取到对应的参数。

后语

以上就是我对 Swagger2 的理解与使用,以上只是教大家入门 Swagger2 ,想要深入使用还是希望自行查阅官方文档。

初次见面,也不知道送你们啥。干脆就送几百本电子书2021 最新面试资料吧。微信搜索 JavaFish 回复电子书送你 1000+ 本编程电子书;回复面试获取 50 套大厂面试题;回复 1024 送你一套完整的 java 视频教程。

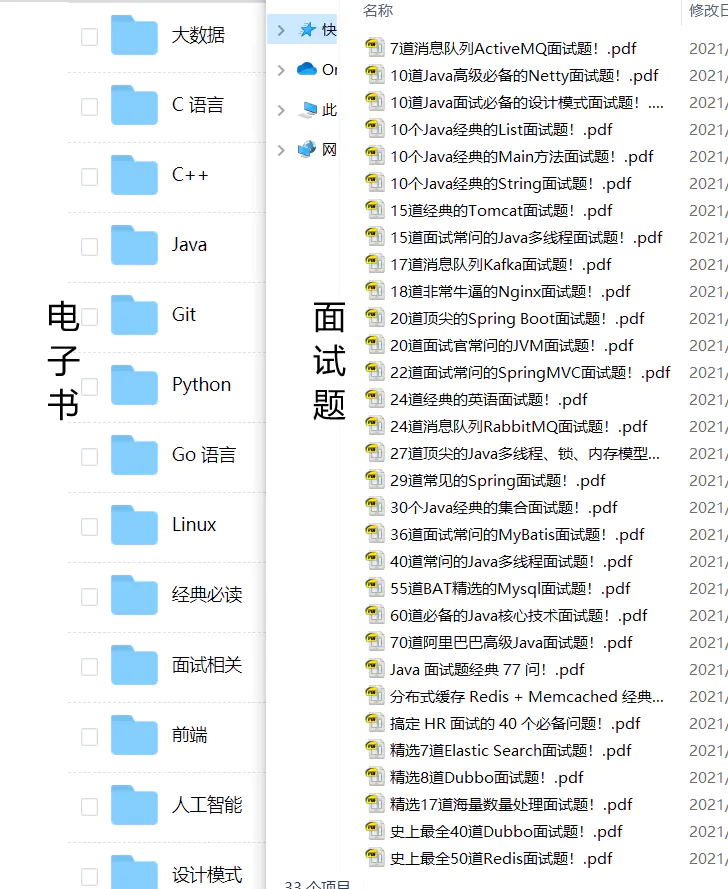

面试题都是有答案的,如下所示:有需要的就来拿吧,绝对免费,无套路获取
