jenkins 编译.net 结合 ansible 操作 windows 进行发布

使用 Jenkins 编译.net 项目需要用到 windows 的 slave 节点，安装依赖的工具：如 MSBuild 和.NET Framework， winrar 等

MSBuild 可以直接安装和开发使用一致版本的 Visual Studio,使用其自带的 MSBuild.exe，比如我这里安装了 Visual Studio 2019 对应的路径为 C:\Program Files (x86)\Microsoft Visual Studio\2019\Community\MSBuild\Current\Bin\amd64\MSBuild.exe

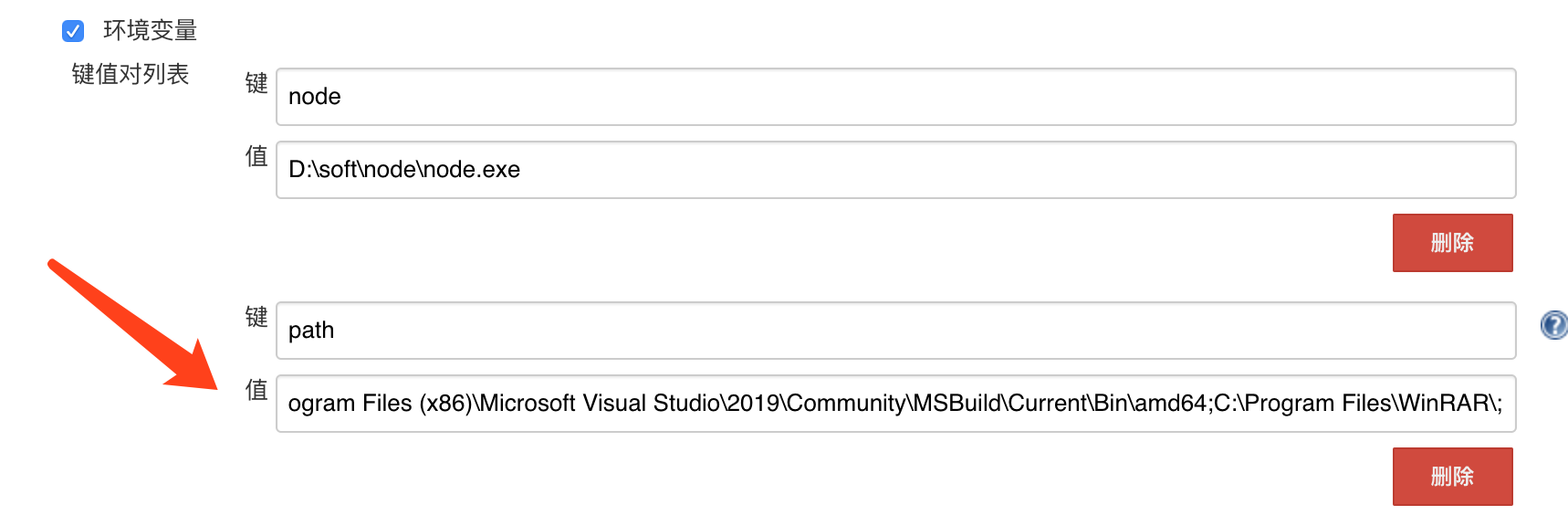

把用到的工具的路径加入到 windows slave 配置环境变量 path 中

jenkins pipeline

pipeline {
    agent { label 'windows-slave' }
    parameters{
        gitParameter branchFilter: '.*', tagFilter: '.*', defaultValue: 'dev', name: 'TAG', type: 'PT_BRANCH_TAG', selectedValue: 'TOP', sortMode: 'DESCENDING_SMART'
        choice(name: 'PLAYBOOK', choices: 'net\nnet-rollback', description: 'net 部署\nnet-rollback 回滚')
        choice(name: 'HOSTS', choices: 'test-pms-group', description: '选择发布的主机组：\ntest-pms-group 测试环境')
    }

    environment {
        GIT = 'http://example.com/mgpms/MG_HuiZhu.git'
        PROJECT = 'MG_HuiZhu'
        APP_PATH = 'D:\\data\\apps\\MG_HuiZhu\\'
        BUILDFILE = 'MG_HuiZhu2.0\\Huazhu.PMS.WebSite\\Huazhu.PMS.WebSite.csproj'
        SOLUTIONDIR = "${WORKSPACE}\\MG_HuiZhu2.0\\"
        PACKAGE = "${WORKSPACE}\\MG_HuiZhu2.0\\Huazhu.PMS.WebSite\\obj\\Release\\Package\\PackageTmp\\"
        CONFIGURATION = 'Release'
        PLAYBOOK = "$PLAYBOOK" // ansible的的的palybook
        MAIL_TO = "yunwei@hhotel.com"
        ZIP = "target"
        CHECK_TAG = "${TAG}" // 分支或tag
    }

    stages {
        stage ('克隆代码') {
            steps {
                deleteDir() // 清理工作目录
                git credentialsId: '9c9b7b17-04d5-47de-9b8f-6207a78e6973', url: "${GIT}"
                bat 'git checkout %CHECK_TAG%'
            }
        }

        stage ('编译打包') {
            steps {
                script {
                    bat 'echo %TIME%'
                    bat 'MSBuild %BUILDFILE% /p:Configuration=%CONFIGURATION% /p:SolutionDir=%SOLUTIONDIR% /t:Rebuild /p:DeployOnBuild=true /p:AllowUntrustedCertificate=True'
                    bat 'rd /s/q D:\\jenkins\\workspace\\test-MG_HuiZhu\\MG_HuiZhu2.0\\Huazhu.PMS.WebSite\\Scripts\\Plugin\\My97DatePicker\\'
                    bat 'winrar a -ep1 -r target.zip %PACKAGE%'
                    stash(name: "target", includes: "target.zip")
                }
            }
        }

        stage ('部署') {
            agent { label "master" }
            environment {
                TIME = sh(script: "date '+%Y%m%d%H%M%S'", returnStdout: true).trim()
            }
            steps {
                deleteDir() // 清理工作目录
                unstash("target")
                ansiblePlaybook(
                    playbook: "/data/ansible/playbook/${PLAYBOOK}.yml",
                    extraVars: [
                        APP_PATH:"${APP_PATH}",
                        HOSTS:"${HOSTS}",
                        PROJECT:"${PROJECT}",
                        WORKSPACE:"${WORKSPACE}",
                        ZIP:"${ZIP}",
                        TIME:"${TIME}"
                    ]
                )
            }
        }
    }


}
​

playbook.yml

---
- hosts: "test-pms-all"
  serial: "50%"
  tasks:
    - name: create app dir
      win_command: CMD /C "md D:\data\apps\{{PROJECT}}"
      ignore_errors: True
    - name: create backup dir
      win_command: CMD /C "md D:\data\backup\{{TIME}}"
      ignore_errors: True
    - name: backup website
      win_copy:
        src: D:\data\apps\{{PROJECT}}
        dest: D:\data\backup\{{TIME}}
        remote_src: True
      ignore_errors: True
    - name: transfer artifacts to target hosts
      win_copy:
        src: "{{WORKSPACE}}/{{ZIP}}.zip"
        dest: D:\data\apps\{{PROJECT}}\
    - name: unzip artifacts
      win_unzip:
        src: D:\data\apps\{{PROJECT}}\target.zip
        dest: D:\data\apps\{{PROJECT}}
        creates: no
        delete_archive: yes
    - name: restart website
      win_iis_website: name={{PROJECT}} state=restarted
​

ansible 使用 wrm 来对 windows 服务器进行操作。
要求：

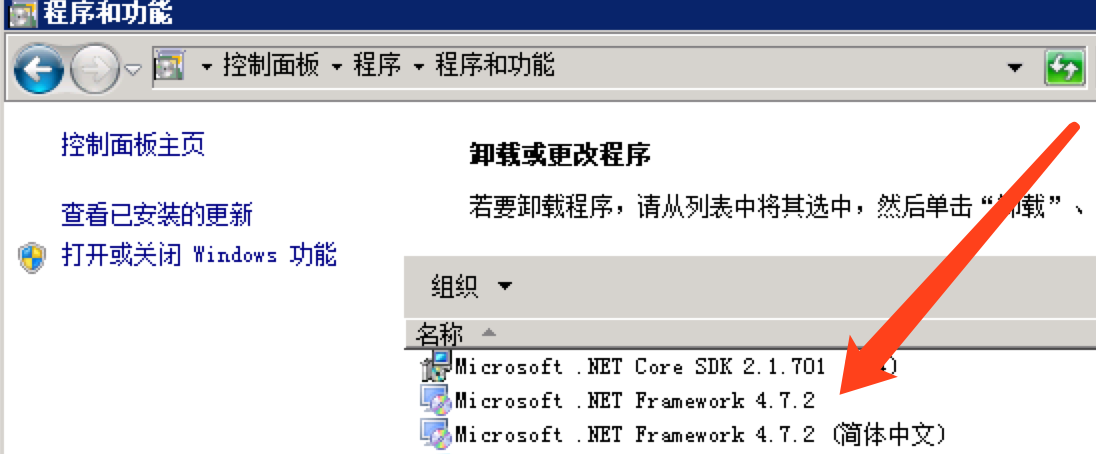

.NET Framework 3.0 以上
Powershell 3.0 以上
开启 winrm

使用管理员权限打开 Powershell

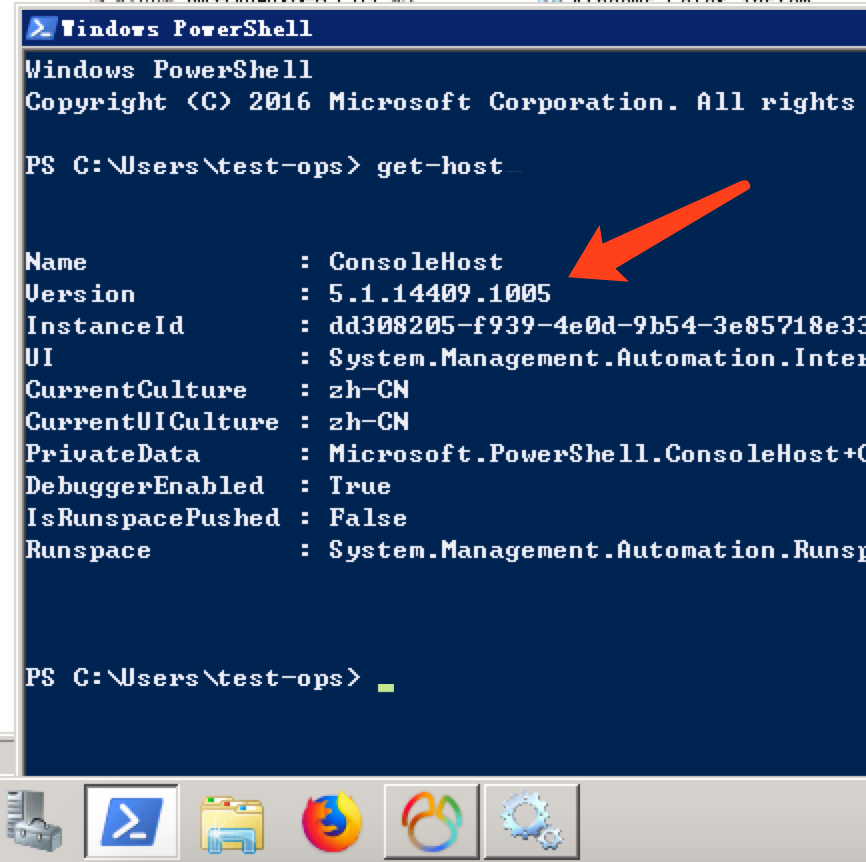

查看版本

get-host
​

更改 powershell 策略为 remotesigned

set-executionpolicy remotesigned
get-executionpolicy
​

查看 winrm service listener
https 方式的使用 5986，http 使用 5985

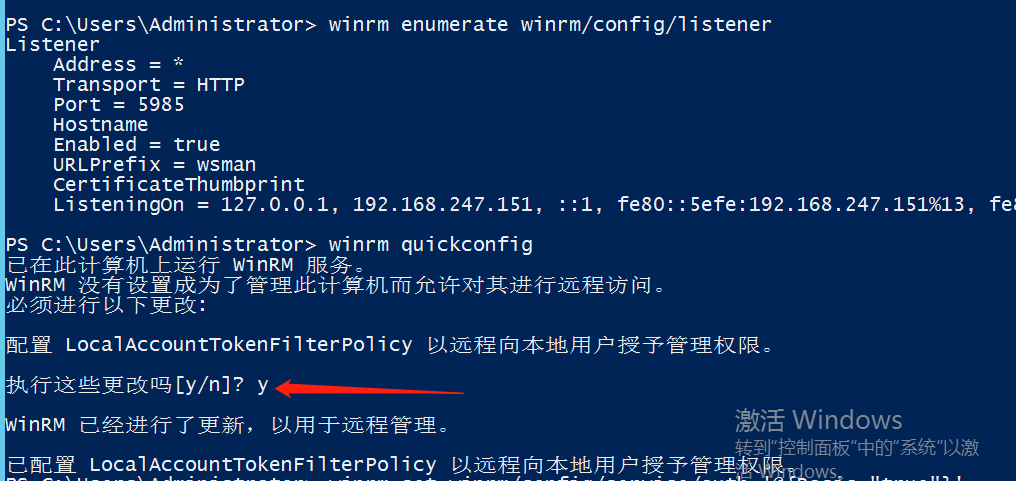

winrm enumerate winrm/config/listener
​

配置 winrm 服务

winrm quickconfig
​

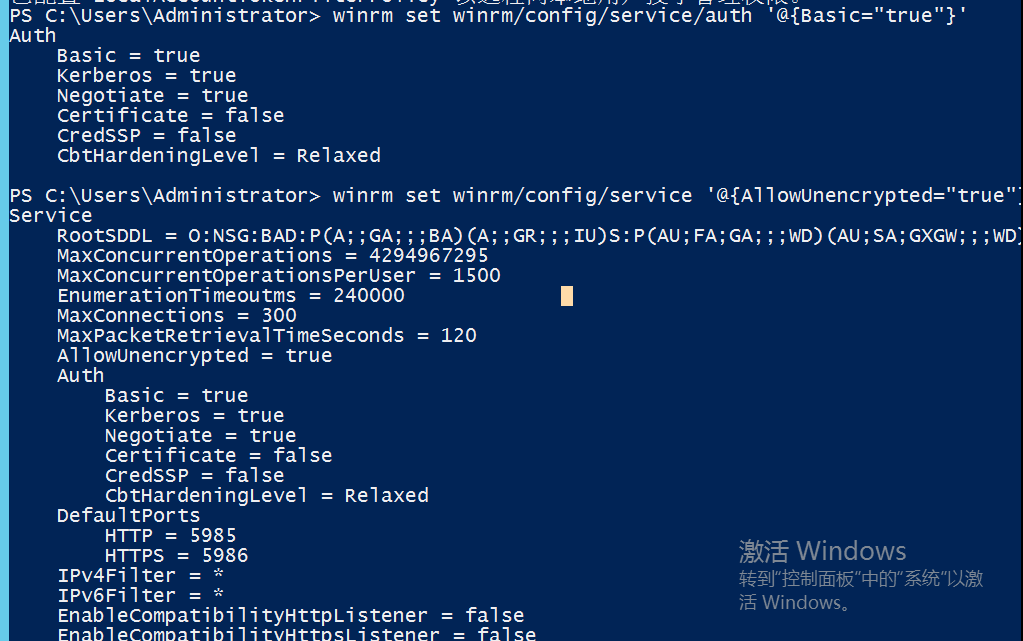

配置 auth 为 true(默认为 false)

winrm set winrm/config/service/auth '@{Basic="true"}'
​

配置允许非加密方式

winrm set winrm/config/service '@{AllowUnencrypted="true"}'
​

安装 ansible 依赖包 pywinrm 模块

pip install pywinrm
​

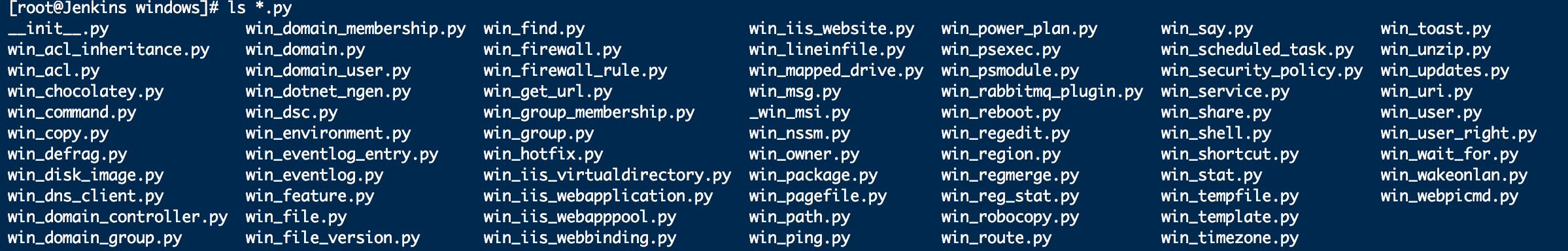

模块路径

常用模块

win_acl 设置文件/目录属主属组权限；
win_copy 拷贝文件到远程Windows主机；
win_file 创建，删除文件或目录；
win_lineinfile 匹配替换文件内容；
win_package 安装/卸载本地或网络软件包；
win_ping Windows系统下的ping模块，常用来测试主机是否存活；
win_service 管理Windows Services服务；
win_user 管理Windows本地用户。
​

使用方法可以直接阅读源码中的说明

/usr/lib/python2.7/site-packages/ansible-2.4.1.0-py2.7.egg/ansible/modules/windows/
​

ansible 配置 inventory
用户名密码使用 windows 普通用户账号即可，端口使用之前查到的 5985，注意不是 3389

[test-group]
test-01 ansible_host=IP ansible_ssh_port=5985 ansible_ssh_user=USER ansible_ssh_pass=PASSWD ansible_connection=winrm ansible_winrm_server_cert_validation=ignore ansible_winrm_transport=ssl
​

测试一下

ansbile test-group -m win_ping
返回如下信息则成功
test-group | SUCCESS => {
    "changed": false,
    "failed": false,
    "ping": "pong"
}
​
