springboot2+redis 整合及 redistemplate 简单使用
项目中涉及的所有代码均可在 github 中找到 [https://github.com/G-little/priest] (https://github.com/G-little/priest)
maven 依赖配置
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-data-redis</artifactId>
<version>2.1.3.RELEASE</version>
</dependency>
redis 配置
基于 springboot 项目结构的配置
* 单机
spring:
cache:
type: redis
redis:
host: 127.0.0.1
port: 6379
timeout: 0
database: 0
pool:
max-active: 8
max-wait: -1
max-idle: 8
min-idle: 0
* 集群
spring:
redis:
cluster:
nodes:
- 192.168.1.236:7001
- 192.168.1.236:7002
max-redirects: 3 # 获取失败 最大重定向次数
pool:
max-active: 1000 # 连接池最大连接数(使用负值表示没有限制)
max-idle: 10 # 连接池中的最大空闲连接
max-wait: -1 # 连接池最大阻塞等待时间(使用负值表示没有限制)
min-idle: 5 # 连接池中的最小空闲连接
timeout: 6000 # 连接超时时长(毫秒)
非 springboot 结构 spring 独立配置
redis properties 文件转 javabean
package com.little.g.common.cache;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.boot.context.properties.EnableConfigurationProperties;
import org.springframework.context.annotation.PropertySource;
import org.springframework.stereotype.Component;
@Component
@EnableConfigurationProperties
@PropertySource(value = "classpath:/redis.properties",name = "redisProperties")
@ConfigurationProperties(prefix = "redis")
public class RedisProperties {
public RedisProperties() {
}
private String nodes;
private Integer commandTimeout;
private Integer maxAttempts;
private Integer maxRedirects;
private Integer maxActive;
private Integer maxWait;
private Integer maxIdle;
private Integer minIdle;
private boolean testOnBorrow;
private String password;
public String getNodes() {
return nodes;
}
public void setNodes(String nodes) {
this.nodes = nodes;
}
public Integer getCommandTimeout() {
return commandTimeout;
}
public void setCommandTimeout(Integer commandTimeout) {
this.commandTimeout = commandTimeout;
}
public Integer getMaxAttempts() {
return maxAttempts;
}
public void setMaxAttempts(Integer maxAttempts) {
this.maxAttempts = maxAttempts;
}
public Integer getMaxRedirects() {
return maxRedirects;
}
public void setMaxRedirects(Integer maxRedirects) {
this.maxRedirects = maxRedirects;
}
public Integer getMaxActive() {
return maxActive;
}
public void setMaxActive(Integer maxActive) {
this.maxActive = maxActive;
}
public Integer getMaxWait() {
return maxWait;
}
public void setMaxWait(Integer maxWait) {
this.maxWait = maxWait;
}
public Integer getMaxIdle() {
return maxIdle;
}
public void setMaxIdle(Integer maxIdle) {
this.maxIdle = maxIdle;
}
public Integer getMinIdle() {
return minIdle;
}
public void setMinIdle(Integer minIdle) {
this.minIdle = minIdle;
}
public boolean isTestOnBorrow() {
return testOnBorrow;
}
public void setTestOnBorrow(boolean testOnBorrow) {
this.testOnBorrow = testOnBorrow;
}
public String getPassword() {
return password;
}
public void setPassword(String password) {
this.password = password;
}
@Override
public String toString() {
return "RedisProperties{" +
"nodes='" + nodes + '\'' +
", commandTimeout=" + commandTimeout +
", maxAttempts=" + maxAttempts +
", maxRedirects=" + maxRedirects +
", maxActive=" + maxActive +
", maxWait=" + maxWait +
", maxIdle=" + maxIdle +
", minIdle=" + minIdle +
", testOnBorrow=" + testOnBorrow +
", password='" + password + '\'' +
'}';
}
}
redis.properties 配置文件
# redis 集群地址 集群(ip:port)之间以 ,分割
redis.nodes=${priest.redis.nodes}
# redis 集群密码
redis.password=${priest.redis.password}
# 超时时间
redis.command-timeout=15000
# 最大重试次数
redis.max-attempts=5
# 最大重定向次数
redis.max-redirects=3
# 最大活跃链接数
redis.max-active=16
# 连接池最大阻塞等待时间(使用负值表示没有限制)
redis.max-wait=-1
# 连接池中的最大空闲连接
redis.max-idle=8
# 连接池中的最小空闲连接
redis.min-idle=0
# 连接可靠测试
redis.test-on-borrow=true
RedisConfig
配置
Redistemplate ,connectionFactory, CacheManager,redisTemplate 相关配置
package com.little.g.common.cache;
import com.fasterxml.jackson.annotation.JsonAutoDetect;
import com.fasterxml.jackson.annotation.PropertyAccessor;
import com.fasterxml.jackson.databind.ObjectMapper;
import org.apache.commons.lang.StringUtils;
import org.springframework.cache.CacheManager;
import org.springframework.cache.annotation.CachingConfigurerSupport;
import org.springframework.cache.annotation.EnableCaching;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.data.redis.cache.RedisCacheConfiguration;
import org.springframework.data.redis.cache.RedisCacheManager;
import org.springframework.data.redis.cache.RedisCacheWriter;
import org.springframework.data.redis.connection.RedisClusterConfiguration;
import org.springframework.data.redis.connection.RedisConnectionFactory;
import org.springframework.data.redis.connection.RedisNode;
import org.springframework.data.redis.connection.RedisStandaloneConfiguration;
import org.springframework.data.redis.connection.jedis.JedisConnectionFactory;
import org.springframework.data.redis.core.*;
import org.springframework.data.redis.serializer.Jackson2JsonRedisSerializer;
import org.springframework.data.redis.serializer.StringRedisSerializer;
import org.springframework.util.CollectionUtils;
import javax.annotation.Resource;
import java.time.Duration;
import java.util.ArrayList;
import java.util.List;
import java.util.Optional;
@Configuration
@EnableCaching
public class RedisConfig extends CachingConfigurerSupport {
@Resource
private RedisProperties redisProperties;
/**
* 配置 Redis Cluster 信息
*/
@Bean
public RedisClusterConfiguration getJedisCluster() {
RedisClusterConfiguration redisClusterConfiguration = new RedisClusterConfiguration();
redisClusterConfiguration.setMaxRedirects(redisProperties.getMaxRedirects());
List<RedisNode> nodeList = new ArrayList<>();
String[] cNodes = redisProperties.getNodes().split(",");
//分割出集群节点
for(String node : cNodes) {
String[] hp = node.split(":");
nodeList.add(new RedisNode(hp[0], Integer.parseInt(hp[1])));
}
redisClusterConfiguration.setClusterNodes(nodeList);
if(StringUtils.isNotEmpty(redisProperties.getPassword())){
redisClusterConfiguration.setPassword(redisProperties.getPassword());
}
return redisClusterConfiguration;
}
@Bean
public RedisConnectionFactory connectionFactory(RedisClusterConfiguration configuration) {
if(!CollectionUtils.isEmpty(configuration.getClusterNodes()) && configuration.getClusterNodes().size()>1) {
return new JedisConnectionFactory(configuration);
}
Optional<RedisNode> node=configuration.getClusterNodes().stream().findFirst();
RedisStandaloneConfiguration config = new RedisStandaloneConfiguration(node.get().getHost(), node.get().getPort());
config.setPassword(configuration.getPassword());
return new JedisConnectionFactory(config);
}
@Bean
public CacheManager cacheManager(RedisConnectionFactory connectionFactory) {
//初始化一个RedisCacheWriter
RedisCacheWriter redisCacheWriter = RedisCacheWriter.nonLockingRedisCacheWriter(connectionFactory);
RedisCacheConfiguration defaultCacheConfig = RedisCacheConfiguration.defaultCacheConfig();
//设置默认超过期时间是1天
defaultCacheConfig.entryTtl(Duration.ofDays(1));
//初始化RedisCacheManager
RedisCacheManager cacheManager = new RedisCacheManager(redisCacheWriter, defaultCacheConfig);
return cacheManager;
}
/**
* retemplate相关配置
* @param factory
* @return
*/
@Bean
public RedisTemplate<String, Object> redisTemplate(RedisConnectionFactory factory) {
RedisTemplate<String, Object> template = new RedisTemplate<>();
// 配置连接工厂
template.setConnectionFactory(factory);
//使用Jackson2JsonRedisSerializer来序列化和反序列化redis的value值(默认使用JDK的序列化方式)
Jackson2JsonRedisSerializer jacksonSeial = new Jackson2JsonRedisSerializer(Object.class);
ObjectMapper om = new ObjectMapper();
// 指定要序列化的域,field,get和set,以及修饰符范围,ANY是都有包括private和public
om.setVisibility(PropertyAccessor.ALL, JsonAutoDetect.Visibility.ANY);
// 指定序列化输入的类型,类必须是非final修饰的,final修饰的类,比如String,Integer等会跑出异常
om.enableDefaultTyping(ObjectMapper.DefaultTyping.NON_FINAL);
jacksonSeial.setObjectMapper(om);
// 值采用json序列化
template.setValueSerializer(jacksonSeial);
//使用StringRedisSerializer来序列化和反序列化redis的key值
template.setKeySerializer(new StringRedisSerializer());
// 设置hash key 和value序列化模式
template.setHashKeySerializer(new StringRedisSerializer());
template.setHashValueSerializer(jacksonSeial);
template.afterPropertiesSet();
return template;
}
/**
* 对hash类型的数据操作
*
* @param redisTemplate
* @return
*/
@Bean
public HashOperations<String, String, Object> hashOperations(RedisTemplate<String, Object> redisTemplate) {
return redisTemplate.opsForHash();
}
/**
* 对redis字符串类型数据操作
*
* @param redisTemplate
* @return
*/
@Bean
public ValueOperations<String, Object> valueOperations(RedisTemplate<String, Object> redisTemplate) {
return redisTemplate.opsForValue();
}
/**
* 对链表类型的数据操作
*
* @param redisTemplate
* @return
*/
@Bean
public ListOperations<String, Object> listOperations(RedisTemplate<String, Object> redisTemplate) {
return redisTemplate.opsForList();
}
/**
* 对无序集合类型的数据操作
*
* @param redisTemplate
* @return
*/
@Bean
public SetOperations<String, Object> setOperations(RedisTemplate<String, Object> redisTemplate) {
return redisTemplate.opsForSet();
}
/**
* 对有序集合类型的数据操作
*
* @param redisTemplate
* @return
*/
@Bean
public ZSetOperations<String, Object> zSetOperations(RedisTemplate<String, Object> redisTemplate) {
return redisTemplate.opsForZSet();
}
}
测试
package com.little.g.user;
import org.junit.Assert;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.data.redis.core.ValueOperations;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;
import javax.annotation.Resource;
/**
* Created by lengligang on 2019/3/25.
*/
@RunWith(SpringJUnit4ClassRunner.class)
//根据自己的配置文件路径进行修改
@ContextConfiguration(locations = "classpath*:/META-INF/spring/*.xml")
public class RedisTest {
@Resource
private ValueOperations<String, String> valueOperations;
@Test
public void testRedisTemplate(){
valueOperations.set("test","xxxx");
String r=valueOperations.get("test");
Assert.assertEquals(r,"xxxx");
}
}

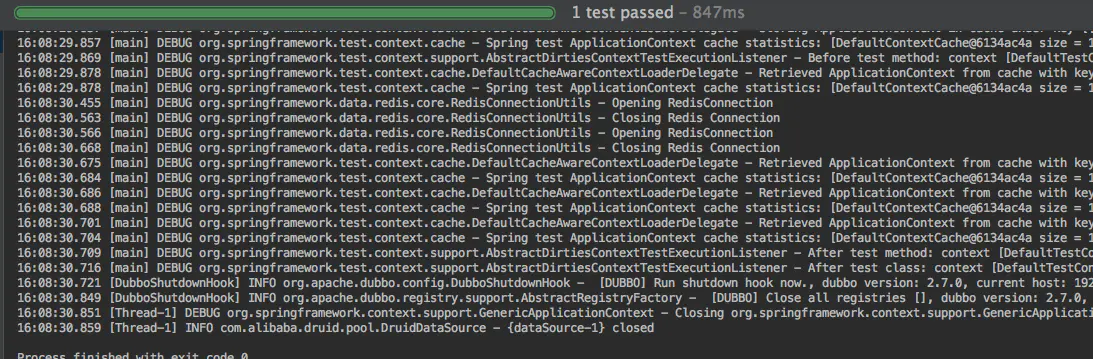

运行测试结果如下:
项目源代码 [https://github.com/G-little/priest] (https://github.com/G-little/priest)
spring redis 官方文档 spring-data-redis
